Premium Scissor Lift Carts
Premium Scissor Lift Carts
Our Premium Scissor Lift Carts provide support for lifting, palletizing, loading and unloading applications. These mobile adjustable height work platforms feature foot release or hand release models. Units roll smoothly on two rigid casters and two swivel phenolic casters with brakes for easy maneuverability.
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
Premium Scissor Lift Carts
Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump.
The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.
**All measurements in the table below are represented in inches, pounds and $USD..
| Premium Scissor Lift Carts | ||||||||
| Model # | Scissor Design |
Platform Size | Capacity | Height Adjustable | Weight | Price | ||
| W | L | Min | Max | |||||
| Foot Release | ||||||||
|
CART-300-S-FR |
Single |
17-3/4" |
30" |
300 |
10" |
31" |
92 |
$774.00 |
|
CART-600-S-FR |
Single |
19-3/4" |
33-1/8" |
600 |
13-1/4" |
34" |
184 |
$983.00 |
|
CART-1000-S-FR |
Single |
24" |
40-1/2" |
1,000 |
13-1/2" |
35-1/2 |
241 |
$1,017.00 |
|
CART-300-D-FR |
Double |
19-1/2" |
33" |
300 |
17" |
56" |
248 |
$1,257.00 |
|

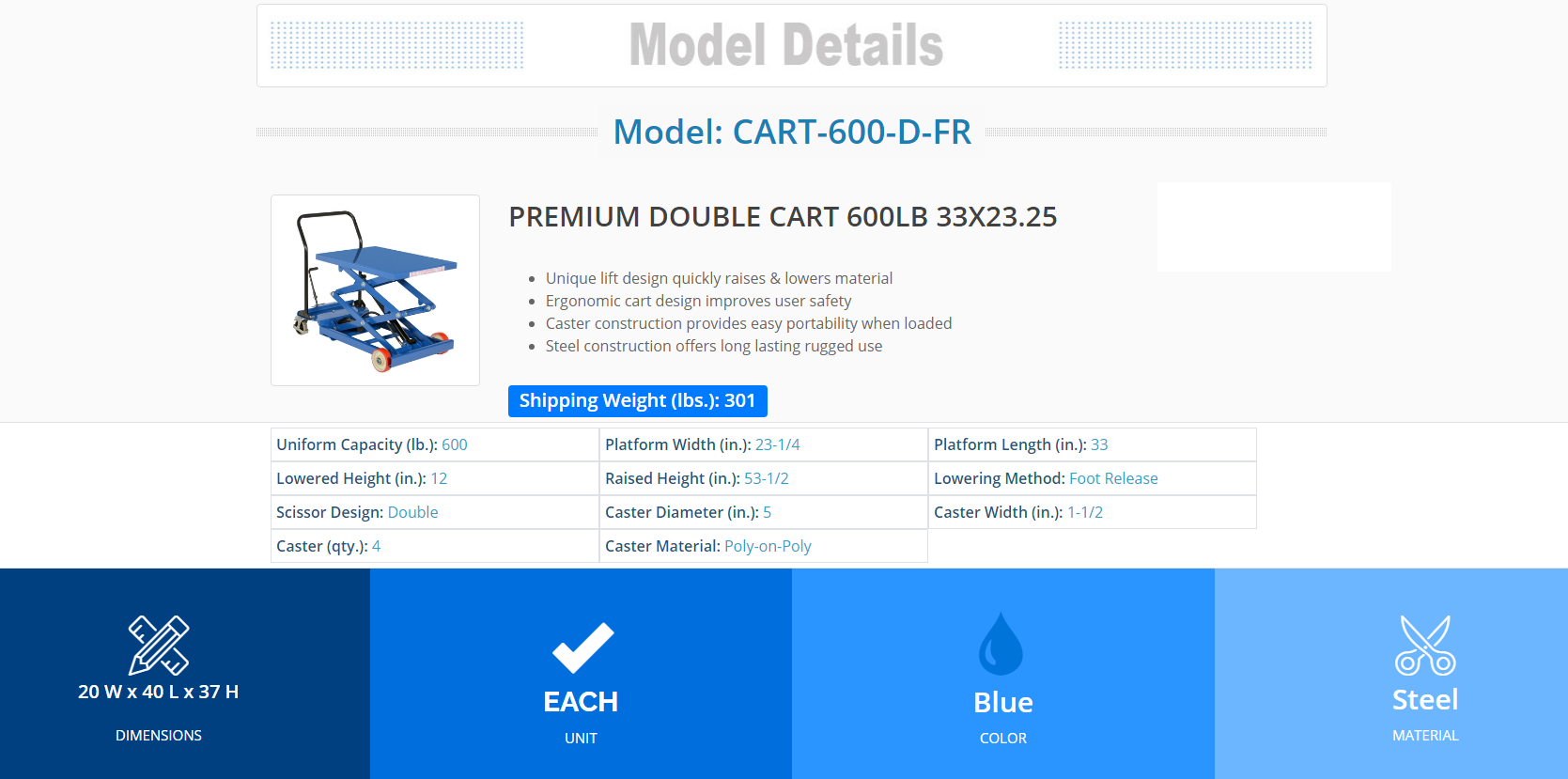

CART-600-D-FR |
Double |
23-1/4" |
33" |
600 |
12" |
53-1/2" |
203 |
$1,508.00 |
|
CART-1000-D-FR |
Double |
24" |
40-1/2" |
1,000 |
11-3/4" |
61-1/2" |
316 |
$1,782.00 |
| Hand Release | ||||||||
|
CART-1000-S-HR |
Single |
23-5/8" |
35-7/16" |
1,000 |
13-1/8" |
36-3/8" |
166 |
$1,000.00 |
|

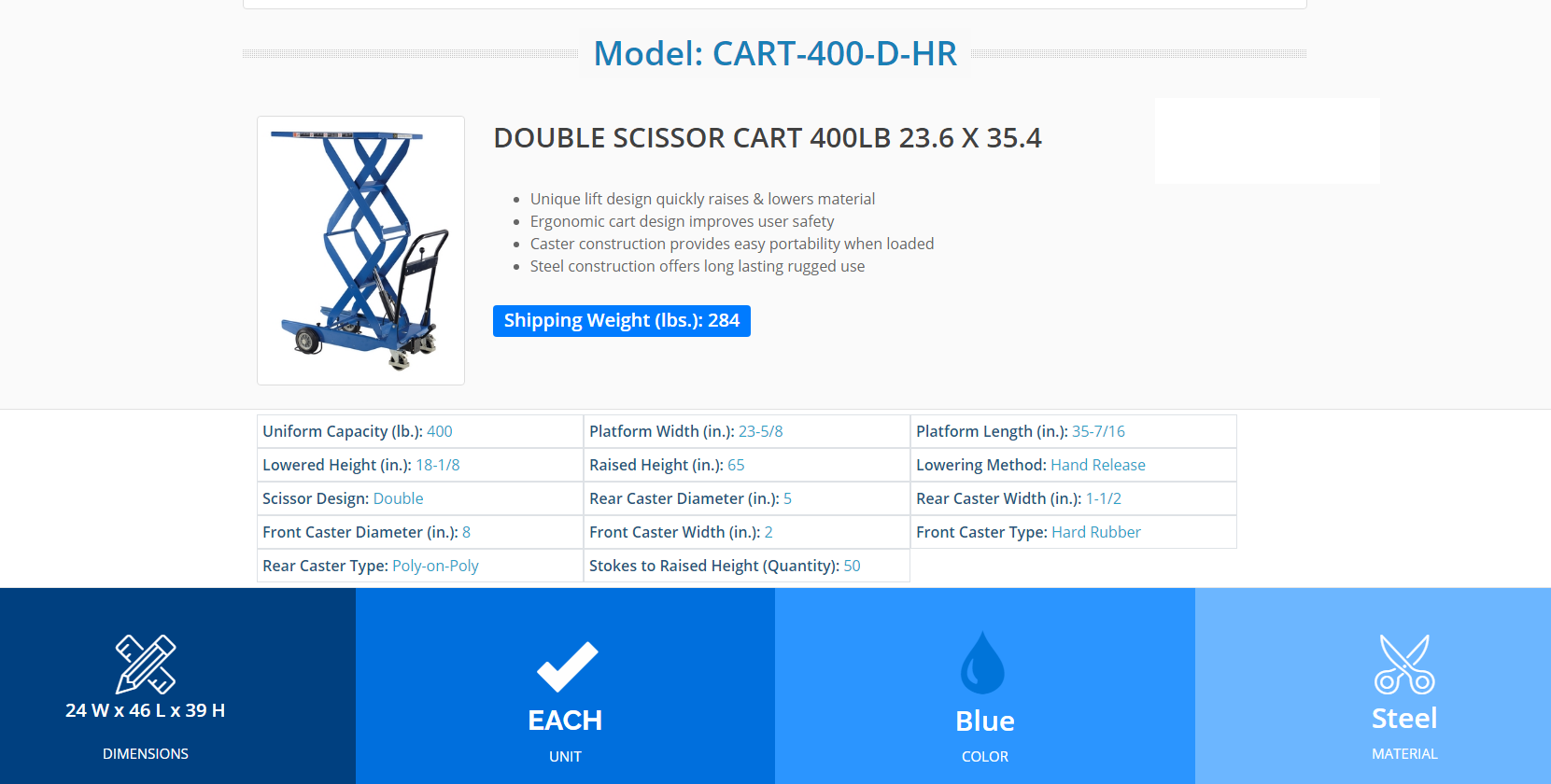

CART-400-D-HR |
Double |
23-5/8" |
35-7/16" |
400 |
18-1/8" |
65" |
188 |
$1,223.00 |
Fabrication Authorities International also has the knowledge and experience to provide custom designs and options. Our years of manufacturing expertise will ensure that our manufacturing methods meet your application needs and your quality expectations. This combined industry experience and flexibility will provide the correct ergonomic solution for your unique application.
We are dedicated to providing solutions for all of your access needs. Contact us for a professional consultation with our sales technicians today. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
