Portable Scissor Lift Tables
Portable Scissor Lift Tables
Our Portable Scissor Lift Tables are perfect for factories, warehouse, or any industrial arena where height is needed. Reduce worker strain and boost production! With many safety features and benefits, these portable lift tables are a must have in your ergonomics arsenal!
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
Portable Scissor Lift Tables
Our Heavy Duty Portable Lift Scissor Tables can easily transport and elevate heavy loads. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h.
Portable Scissor Lift Tables are designed to transport and elevate your heaviest loads. A heavy-duty 12V DC power unit with deep cycle battery, an on-board battery charger, and battery charge indicator gauge are standard. Features 8" glass filled nylon casters (two swivel and two rigid) (4 & 5,000 lb. units have phenolic casters), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated ON/OFF control for better security is built into the power unit.
PTDS includes:
- Combination throttle / direction butterfly style controller
- An adjustable steering yoke
- An auto reverse emergency "belly switch"
- (2) 12V batteries
PTDS-E includes:
- Combination throttle / direction controller
- An auto reverse emergency "belly switch"
- (2) 12V batteries
Benefits:
- The ergonomic styling makes it safe and comfortable to use
- This back saver helps you to lift, position or transport heavy loads preventing employee injury
- Meets OSHA requirements
- Electric pinch point guards
- Upward travel limit switch
- Lock in place safety maintenance support
- Emergency stop if hose breaks
- Protective battery cover
- Welding to meet A.W.S.
Features:
| * Glass nylon filled Casters are 8" x 2", 2 rigid and 2 swivel | * Replaceable deck, main axle pins and bearings |
| * Heavy duty deep cell battery for maximum use | * NEMA-4 pendant hand control has 8' coil cord |
| * Convenient air bleed screw on hydraulic actuators | * Self-lubricating bearings with 44,000 psi |
| * Pins - Cold rolled and finished to bearing manufacturer's specifications | * Displacement style hydraulic actuator |
| * Swaged on high pressure hose fittings, Pump intake/return hose is 1/2" | * Foot actuated floor lock is standard |
| * Hydraulic actuators have internal brass velocity fuse w/ stainless steel spring | |
| * Rollers - Cold finished steel with case carburizing to .010 inch with Rockwell "C" 40 | |
| * Heavy duty 12V power unit provides maximum torque for faster lift speeds and minimum amp draw. | |
| * Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve, and pressure compensation flow control valve. | |
***Please specify platform size when ordering***
Width may be 34" to 48" & 36" to 48" and Length may be 48" to 72" & 64" to 90".
In order for us to assist you in the best way possible, please take a moment to fill out the Survey Sheet here and upload the document underneath the "Inquire about this product" button above.
**All measurements in the table are represented in inches, pounds and $USD.
| Portable Scissor Lift Tables | ||||||||||
| Model # | Vertical Travel |
Platform | Capacity | Height | Travel Time (sec) |
Weight | Price | |||
| W | L | Raised | Lowered | |||||||
| PST-1-46 | 36 | 24-48 | 48-72 | 1,000 | 46 | 10 | 9 | 888 | $5,162.00 | |
| PST-1-58 | 48 | 24-48 | 64-90 | 1,000 | 58 | 14 | 1,291 | $6,925.00 | ||

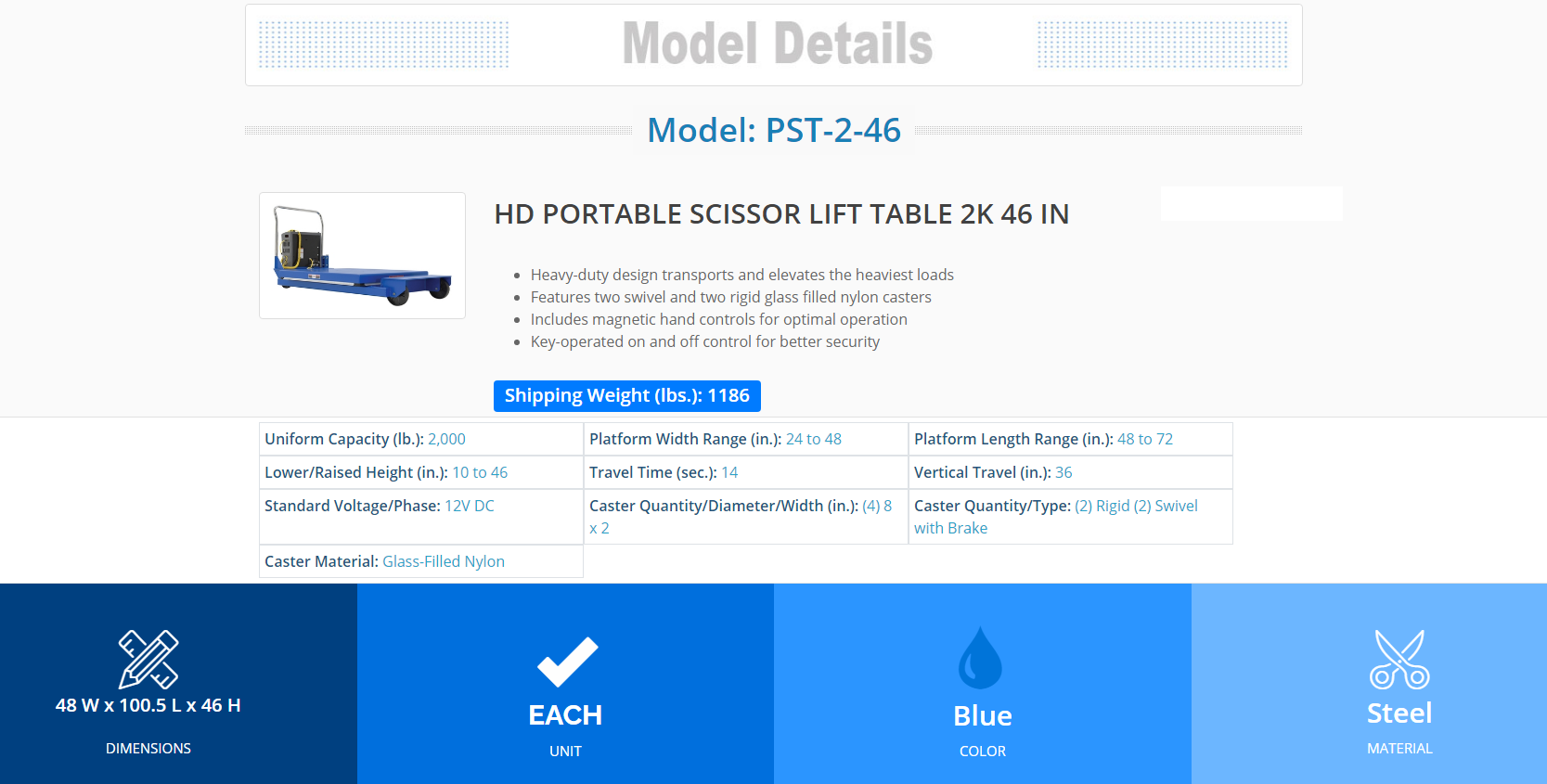

| PST-2-46 | 36 | 24-48 | 48-72 | 2,000 | 46 | 14 | 1,168 | $5,500.00 | ||
| PST-2-58 | 48 | 24-48 | 64-90 | 2,000 | 58 | 20 | 1,313 | $7,329.00 | ||
| PST-2448-1-46 | 36 | 24-3/8 | 48-3/8 | 1,000 | 46 | 9 | 875 | $5,395.00 | ||
| PST-2448-1-46-115-1 | 36 | 24-3/8 | 48-3/8 | 1,000 | 46 | 9 | 875 | $5,395.00 | ||
| PST-2448-2-46 | 36 | 24-3/8 | 48-3/8 | 2,000 | 46 | 14 | 1,147 | $5,500.00 | ||
| PST-2448-2-46-115-1 | 36 | 24-3/8 | 48-3/8 | 2,000 | 46 | 14 | 1,147 | $5,500.00 | ||
| PST-2448-3-46 | 36 | 24-3/8 | 48-3/8 | 3,000 | 46 | 20 | 1,289 | $7,017.00 | ||
| PST-2448-3-46-115-1 | 36 | 24-3/8 | 48-3/8 | 3,000 | 46 | 20 | 1,289 | $7,017.00 | ||
| PST-2464-1-58 | 48 | 24-3/8 | 64-3/8 | 1,000 | 58 | 14 | 1,044 | $7,237.00 | ||
| PST-2464-1-58-115-1 | 48 | 24-3/8 | 64-3/8 | 1,000 | 58 | 14 | 1,044 | $7,237.00 | ||
| PST-2464-2-58 | 48 | 24-3/8 | 64-3/8 | 2,000 | 58 | 20 | 1,088 | $7,331.00 | ||
| PST-2464-2-58-115-1 | 48 | 24-3/8 | 64-3/8 | 2,000 | 58 | 20 | 1,530 | $7,331.00 | ||
| PST-2464-3-58 | 48 | 24-3/8 | 64-3/8 | 3,000 | 58 | 28 | 1,088 | $8,034.00 | ||
| PST-2464-3-58-115-1 | 48 | 24-3/8 | 64-3/8 | 3,000 | 58 | 28 | 1,663 | $8,034.00 | ||
| PST-3-46 | 36 | 24 - 48 | 48 - 72 | 3,000 | 46 | 20 | 1,335 | $6,916.00 | ||
| PST-4-47 | 35 | 36 - 48 | 48 - 72 | 4,000 | 47 | 12 | 28 | 1,152 | $8,104.00 | |
| PST-4-60 | 48 | 36 - 48 | 64 - 90 | 4,000 | 60 | 38 | 2,050 | $8,949.00 | ||
| PST-5-47 | 35 | 36 - 48 | 48 - 72 | 5,000 | 47 | 31 | 1,760 | $8,379.00 | ||
| PST-5-60 | 48 | 36 - 48 | 64 - 90 | 5,000 | 60 | 38 | 1,836 | $9,156.00 | ||
| Portable Scissor Lift Tables Options & Accessories | |||
| Model # | Description | Weight | Price |
| PST-AIR | Factory Air/Oil (with foot treadle control) | N/A | N/C |
| PST-FP | Manual foot pump option | N/A | N/C |
| PST-PTDS | Power Traction Drive System, 24V DC | 156 | $7,007.00 |
Fabrication Authorities also offers additional options for our Portable Scissor Lift Tables.
Additional Options |
|||
| Description | Model # | Price | Picture |
|
Manual Built In Carousel |
PST-ROTATE |
contact for pricing |
 |
|
Optional Conveyor |
please call |
contact for pricing |
 |
|
Wireless Remote Controls (2 and 4 button) |
RRC-2PB/RRC-4PB |
$1,394.00 |
 |
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
