Aluminum Grip-Strut Walk Ramps

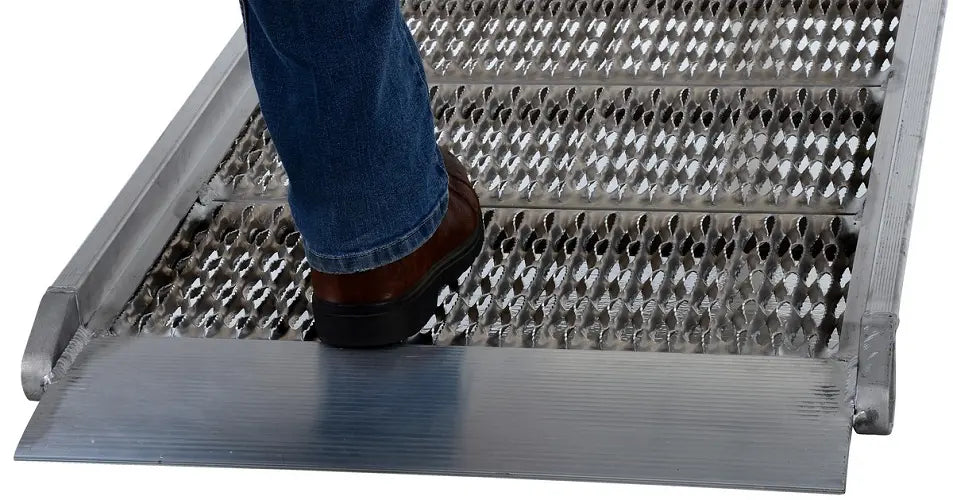

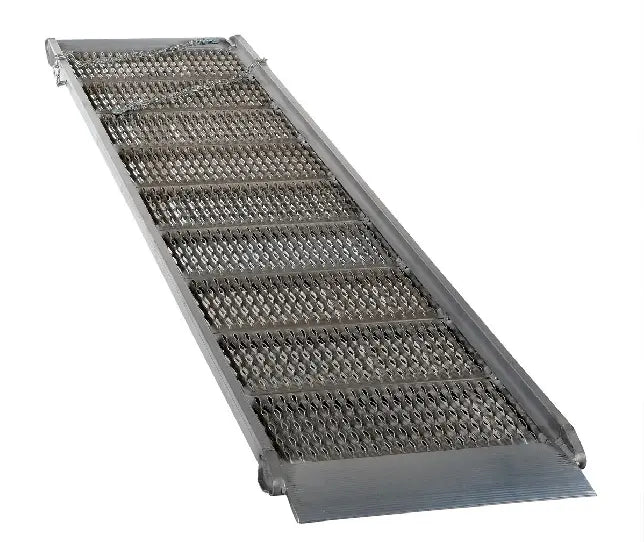

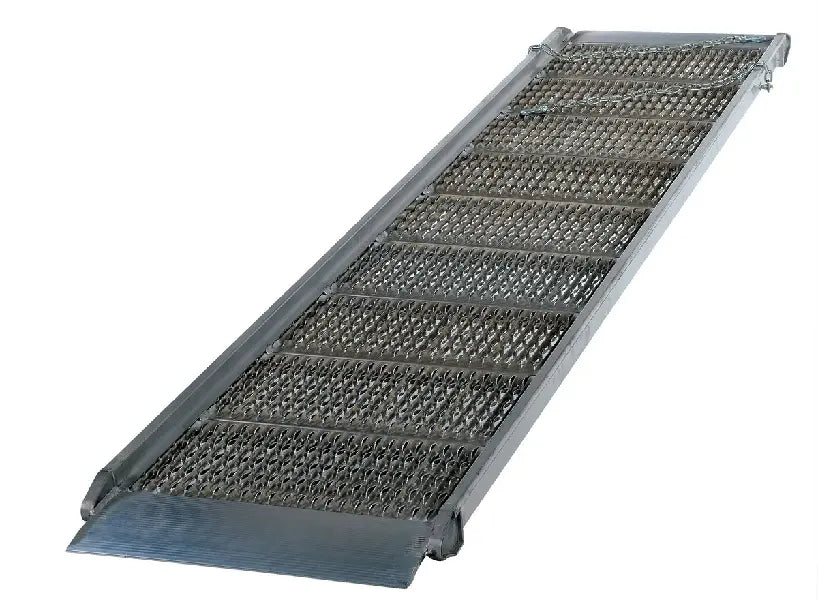

Our Aluminum Grip-Strut Walk Ramps allow loading and unloading of trucks when docks are unavailable. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men, shippers and receivers. 100% welded aluminum construction is light-weight and will not rust.
Ramps feature a 2" high safety curb on each side. Overlap style end lip rests on trailer bed and provides smooth transition. Each unit includes two safety chains to connect ramp to trailer for safety. Walk ramps with handrails also available. Contact us for more options!
**All measurements in the table below are represented in inches, pounds and $USD.
| Aluminum Grip Strut Walk Ramps | ||||||||
| Model # | PDF | 4-Wheel Cart Capacity | 2-Wheel Cart Capacity | Usable Length | Height Range | Weight | Price | |
| Min | Max | |||||||
| 28"W / 26" Usable Width | ||||||||
| AWR-G-28-6A |  | 2800 | 2000 | 73-1/4" | 6" | 21" | 41 | $641.00 |
| AWR-G-28-7A | | 2800 | 1800 | 85" | 6" | 25" | 59 | $703.00 |
| AWR-G-28-8A | | 2500 | 1650 | 96-3/4" | 6" | 29" | 61 | $775.00 |
| AWR-G-28-9A | | 2500 | 1600 | 108-1/2" | 6" | 33" | 63 | $837.00 |
| AWR-G-28-10A | | 2200 | 1500 | 120-1/4" | 6" | 38" | 81 | $933.00 |
| AWR-G-28-12A | | 1900 | 1400 | 143-3/4" | 6" | 46" | 77 | $1,073.00 |
| AWR-G-28-14A | | 1600 | 1200 | 167-1/4" | 6" | 56" | 89 | $1,219.00 |
| AWR-G-28-16A | | 1000 | 1000 | 190-3/4" | 6" | 62" | 118 | $1,342.00 |
| 38"W / 36" Usable Width | ||||||||
| AWR-G-38-6A | | 2800 | 2000 | 73-1/4" | 6" | 21" | 55 | $797.00 |
| AWR-G-38-7A | | 2800 | 1800 | 85" | 6" | 25" | 59 | $894.00 |
| AWR-G-38-8A | | 2500 | 1650 | 96-3/4" | 6" | 29" | 66 | $965.00 |
| AWR-G-38-9A | | 2500 | 1600 | 108-1/2" | 6" | 33" | 73 | $1,041.00 |
| AWR-G-38-10A | | 2200 | 1500 | 120-1/4" | 6" | 38" | 80 | $1,148.00 |
| AWR-G-38-12A | | 1900 | 1400 | 143-3/4" | 6" | 46" | 94 | $1,329.00 |
| AWR-G-38-14A | | 1600 | 1200 | 167-1/4" | 6" | 54" | 123 | $1,507.00 |
| AWR-G-38-16A | | 1000 | 1000 | 190-3/4" | 6" | 62" | 142 | $1,659.00 |
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
