Aluminum Walk Ramps
Aluminum Walk Ramps
Aluminum Walk Ramps Our Aluminum Walk Ramp enables delivery men, shippers, and receivers to load and unload trucks when docks are unavailable. Ramps feature a 1-1/2" high safety curb on each side. Heavy duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. Load capacities depend on size selection. Our Aluminum Walk Ramps are lightweight and easy to handle. They are available in either an overlapping style that rests on the truck bed (Style A), or steel hook style that mounts onto the truck extensions (Style B). Aluminum Walk Ramps with Handrails and Aluminum W. . .
Aluminum Walk Ramps

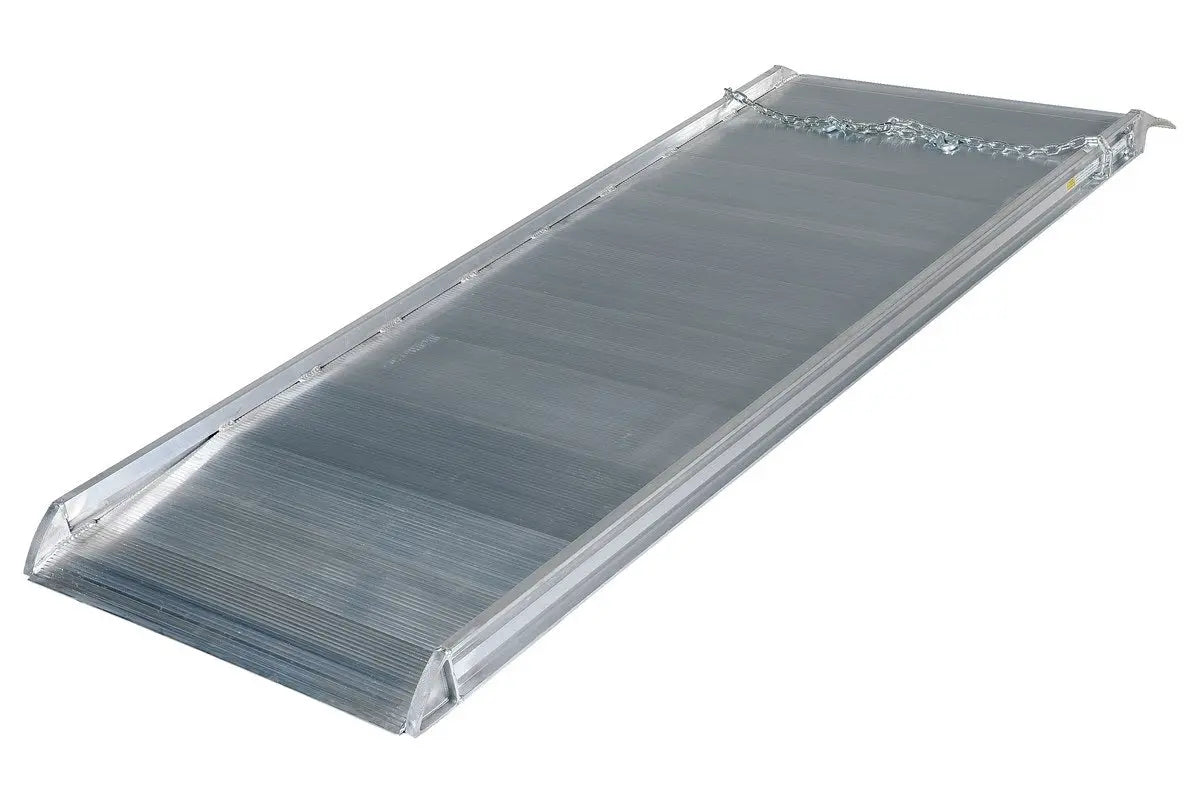

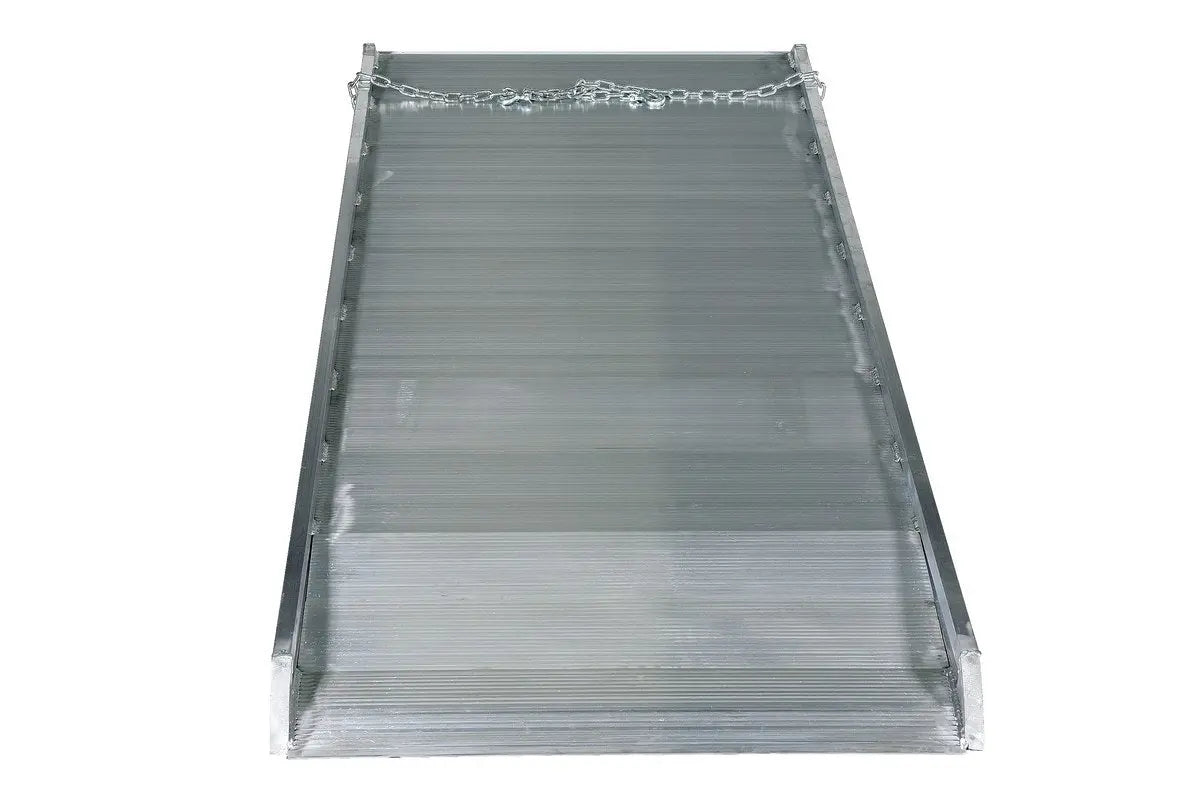

Our Aluminum Walk Ramp enables delivery men, shippers, and receivers to load and unload trucks when docks are unavailable. Ramps feature a 1-1/2" high safety curb on each side. Heavy duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. Load capacities depend on size selection.
Our Aluminum Walk Ramps are lightweight and easy to handle. They are available in either an overlapping style that rests on the truck bed (Style A), or steel hook style that mounts onto the truck extensions (Style B).
Aluminum Walk Ramps with Handrails and Aluminum Walk Ramps with Transport Wheels also available. Contact for options!
**All measurements in the table are represented in inches, pounds and $USD.
| Aluminum Walk Ramps | |||||||||
| Model # | Type | Height Range | 2 Wheel Cart Capacity | 4 Wheel Cart Capacity | Length | Weight | Price | ||
| Min | Max | ||||||||
| 28"W /26" Usable Width | |||||||||
| AWR-28-4A | A | 6" | 13" | 2,200 | 3,000 | 48" | 50 | $423.00 | |
| AWR-28-6A | A | 6" | 21" | 2,000 | 2,800 | 72" | 68 | $510.00 | |
| AWR-28-7A | A | 6" | 25" | 1,800 | 2,800 | 84" | 76 | $581.00 | |
| AWR-28-8A | A | 6" | 29" | 1,650 | 2,500 | 96" | 84 | $640.00 | |
| AWR-28-9A | A | 6" | 33" | 1,600 | 2,500 | 108" | 93 | $719.00 | |
| AWR-28-10A | A | 6" | 38" | 1,500 | 2,200 | 120" | 101 | $761.00 | |
| AWR-28-12A | A | 6" | 46" | 1,400 | 1,900 | 144" | 118 | $898.00 | |
| AWR-28-14A | A | 6" | 54" | 1,200 | 1,600 | 168" | 134 | $1,018.00 | |
| AWR-28-16A | A | 6" | 62" | 1,000 | 1,000 | 192" | 143 | $1,148.00 | |
| AWR-28-4B | B | 6" | 15" | 2,200 | 3,000 | 49-15/16" | 45 | $387.00 | |
| AWR-28-6B | B | 6" | 23" | 2,000 | 2,800 | 73-7/8" | 62 | $497.00 | |
| AWR-28-7B | B | 6" | 27" | 1,800 | 2,800 | 85-13/16" | 70 | $554.00 | |
| AWR-28-8B | B | 6" | 31" | 1,650 | 2,500 | 97-11/16" | 80 | $622.00 | |
| AWR-28-9B | B | 6" | 35" | 1,600 | 2,500 | 109-5/8" | 88 | $657.00 | |
| AWR-28-10B | B | 6" | 40" | 1,500 | 2,200 | 121-9/16" | 96 | $719.00 | |
| AWR-28-12B | B | 6" | 48" | 1,400 | 1,900 | 145-7/16" | 113 | $881.00 | |
| AWR-28-14B | B | 6" | 56" | 1,200 | 1,600 | 169-1/4" | 129 | $956.00 | |
| AWR-28-16B | B | 6" | 64" | 1,000 | 1,000 | 193-1/8" | 146 | $1,100.00 | |
| 38" W /36" Usable Width | |||||||||
| Model # | Type | Height Range | 2 Wheel Cart Capacity | 4 Wheel Cart Capacity | Length | Weight | Price | ||
| Min | Max | ||||||||
| AWR-38-4A | A | 6" | 13" | 2,200 | 3,000 | 48" | 63 | $550.00 | |
| AWR-38-6A | A | 6" | 21" | 2,000 | 2,800 | 72" | 85 | $660.00 | |
| AWR-38-7A | A | 6" | 25" | 1,800 | 2,800 | 84" | 95 | $711.00 | |
| AWR-38-8A | A | 6" | 29" | 1,650 | 2,500 | 96" | 105 | $770.00 | |
| AWR-38-9A | A | 6" | 33" | 1,600 | 2,500 | 108" | 113 | $828.00 | |
| AWR-38-10A | A | 6" | 38" | 1,500 | 2,200 | 120" | 119 | $957.00 | |
| AWR-38-12A | A | 6" | 46" | 1,400 | 1,900 | 144" | 149 | $1,132.00 | |
| AWR-38-14A | A | 6" | 54" | 1,200 | 1,600 | 168" | 168 | $1,269.00 | |
| AWR-38-16A | A | 6" | 62" | 1,000 | 1,000 | 192" | 190 | $1,382.00 | |
| AWR-38-4B | B | 6" | 15" | 2,200 | 3,000 | 49-15/16" | 55 | $514.00 | |
| AWR-38-6B | B | 6" | 23" | 2,000 | 2,800 | 73-7/8" | 77 | $654.00 | |
| AWR-38-7B | B | 6" | 27" | 1,800 | 2,800 | 85-5/16" | 87 | $699.00 | |
| AWR-38-8B | B | 6" | 31" | 1,650 | 2,500 | 97-11/16" | 99 | $803.00 | |
| AWR-38-9B | B | 6" | 35" | 1,600 | 2,500 | 109-5/8" | 109 | $832.00 | |
| AWR-38-10B | B | 6" | 40" | 1,500 | 2,200 | 121-9/16" | 119 | $929.00 | |
| AWR-38-12B | B | 6" | 48" | 1,400 | 1,900 | 145-7/16" | 140 | $1,108.00 | |
| AWR-38-14B | B | 6" | 56" | 1,200 | 1,600 | 169-1/4" | 160 | $1,242.00 | |
| AWR-38-16B | B | 6" | 64" | 1,000 | 1,000 | 193-1/8" | 182 | $1,382.00 | |
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
