Aluminum Yard Ramps
Aluminum Yard Ramps

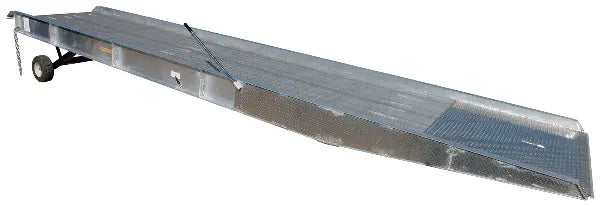

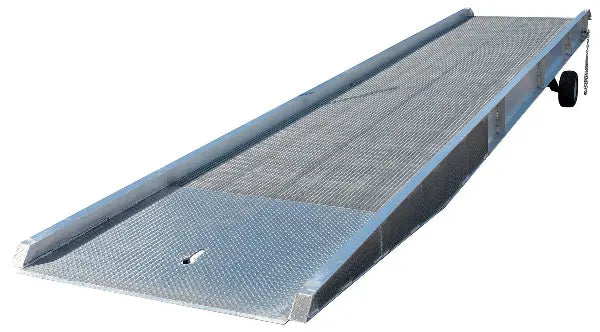

Aluminum Yard Ramps Our Aluminum Yard Ramps provide a reliable, cost-effective alternative to expensive truck well construction. This industrial ramp provides loading and unloading flexibility for large and small companies alike. Other features include high-visibility heavy duty safety curbs to prevent runoff. Features: • Ramp Lengths: 30 ft or 36 ft • 18" x 5" Mold-on-Rubber Tires • Capacities: 16,000 / 20,000 / 25,000 & 30,000 lbs. • Safety Anchor Chains • Overall width: 70", 84" & 95" available • Hand Pump Hydraulic Lift • Aluminum or Steel Grating • Rubber Shock Absorbers • Service Height Range: 4. . .
Aluminum Yard Ramps
Our Aluminum Yard Ramps provide a reliable, cost-effective alternative to expensive truck well construction. This industrial ramp provides loading and unloading flexibility for large and small companies alike. Other features include high-visibility heavy duty safety curbs to prevent runoff.
Features:
| • Ramp Lengths: 30 ft or 36 ft | • 18" x 5" Mold-on-Rubber Tires |
| • Capacities: 16,000 / 20,000 / 25,000 & 30,000 lbs. | • Safety Anchor Chains |
| • Overall width: 70", 84" & 95" available | • Hand Pump Hydraulic Lift |
| • Aluminum or Steel Grating | • Rubber Shock Absorbers |
| • Service Height Range: 45" to 62" | • Flow Control Valve |
| • Pneumatic Wheels Option: 40" to 66" | • Fork Positioning Loop |
Our Aluminum Yard Ramp is easily moved with a forklift and built to withstand the toughest industrial use. For fast movement and quick load turn around times rely on Fabrication Authorities International aluminum yard ramps.
Please specify Steel or Aluminum Grating when placing order.
**All measurements in the table below are represented in inches, feet pounds and $USD.
| Aluminum Yard Ramps | ||||||
| Model # | Overall Width | Usable Width | Capacity | Length | Weight | |
| Price | ||||||
| Steel Grating | ||||||
| SY-167230 | 74" | 66" | 16,000 | 30' | 3518 | $15,722.00 |
| SY-168430 | 86" | 78" | 16,000 | 30' | 3927 | $16,745.00 |
| SY-169330 | 95" | 87" | 16,000 | 30' | 4269 | $18,985.00 |
| SY-167236-L | 74" | 66" | 16,000 | 36' | 4071 | $17,918.00 |
| SY-168436-L | 86" | 78" | 16,000 | 36' | 4520 | $19,705.00 |
| SY-169336-L | 95" | 87" | 16,000 | 36' | 4934 | $26,551.00 |
| SY-207230 | 74" | 66" | 20,000 | 30' | 3591 | $17,031.00 |
| SY-208430 | 86" | 78" | 20,000 | 30' | 4008 | $18,525.00 |
| SY-209330 | 95" | 87" | 20,000 | 30' | 4359 | $22,294.00 |
| SY-207236-L | 74" | 66" | 20,000 | 36' | 4139 | $19.271.00 |
| SY-208436-L | 86" | 78" | 20,000 | 36' | 4601 | $21,057.00 |
| SY-209336-L | 95" | 87" | 20,000 | 36' | 5024 | $26,745.00 |
| SY-257230 | 74" | 66" | 25,000 | 30' | 3673 | $18,126.00 |
| SY-258430 | 86" | 78" | 25,000 | 30' | 4090 | $19,475.00 |
| SY-259330 | 95" | 87" | 25,000 | 30' | 4441 | $25,299.00 |
| SY-257236-L | 74" | 66" | 25,000 | 36' | 4221 | $20,032.00 |
| SY-258436-L | 86" | 78" | 25,000 | 36' | 4683 | $21,783.00 |
| SY-259336-L | 95" | 87" | 25,000 | 36' | 5106 | $28,740.00 |
| SY-307230 | 74" | 66" | 30,000 | 30' | 3728 | $19,739.00 |
| SY-308430 | 86" | 78" | 30,000 | 30' | 4153 | $21,844.00 |
| SY-307236-L | 74" | 66" | 30,000 | 36' | 4285 | $21,499.00 |
| SY-308436-L | 86" | 78" | 30,000 | 36' | 4743 | $26,231.00 |
| Aluminum Grating | ||||||
| Model # | Overall Width | Usable Width | Capacity | Length | Weight | |
| Price | ||||||
| AY-167230 | 74" | 66" | 16,000 | 30' | 2569 | $16,253.00 |
| AY-168430 | 86" | 78" | 16,000 | 30' | 2803 | $17,707.00 |
| AY-169330 | 95" | 87" | 16,000 | 30' | 2992 | $19,855.00 |
| AY-167236-L | 74" | 66" | 16,000 | 36' | 3118 | $19,513.00 |
| AY-168436-L | 86" | 78" | 16,000 | 36' | 3396 | $21,385.00 |
| AY-169336-L | 95" | 87" | 16,000 | 36' | 3657 | $28,331.00 |
| AY-207230 | 74" | 66" | 20,000 | 30' | 2638 | $17,508.00 |
| AY-208430 | 86" | 78" | 20,000 | 30' | 2884 | $19,859.00 |
| AY-209330 | 95" | 87" | 20,000 | 30' | 3083 | $23,901.00 |
| AY-207236-L | 74" | 66" | 20,000 | 36' | 3187 | $20,427.00 |
| AY-208436-L | 86" | 78" | 20,000 | 36' | 3477 | $23,215.00 |
| AY-209336-L | 95" | 87" | 20,000 | 36' | 3748 | $28,665.00 |
| AY-257230 | 74" | 66" | 25,000 | 30' | 2720 | $18,581.00 |
| AY-258430 | 86" | 78" | 25,000 | 30' | 2965 | $20,575.00 |
| AY-259330 | 95" | 87" | 25,000 | 30' | 3165 | $25,431.00 |
| AY-257236-L | 74" | 66" | 25,000 | 36' | 3269 | $21,029.00 |
| AY-258436-L | 86" | 78" | 25,000 | 36' | 3559 | $23,778.00 |
| AY-259336-L | 95" | 87" | 25,000 | 36' | 3830 | $30,511.00 |
| AY-307230 | 74" | 66" | 30,000 | 30' | 2783 | $20,262.00 |
| AY-308430 | 86" | 78" | 30,000 | 30' | 3029 | $23,310.00 |
| AY-307236-L | 74" | 66" | 30,000 | 36' | 3332 | $23,850.00 |
| AY-308436-L | 86" | 78" | 30,000 | 36' | 3619 | $27,257.00 |
| Options | ||||||
| AYR-HL-DC | 12V Hydraulic Lift (includes charger) | $1,170.00 | ||||
| AYR-TB-H | Tow Bar Hitch | $302.00 | ||||
| AYR-CRB6 | 6” Curb Height | $213.00 | ||||
| AYR-YEL | Yellow Safety Curbs | $261.00 | ||||
| AY-PNTR | Pneumatic Tires (service range 40”-66”) | $536.00 | ||||
| AYR-DH | Holes in lip to lag ramp to top of dock | $237.00 | ||||
| YR-WH | Wall Hooks | $55.00 | ||||
| YR-PAD | Foot Pad for Landing Gear (10"x10"x2.5") | $48.00 | ||||
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
