Configurable Work Platforms Our Configurable Work Platforms allow you to choose the style, height, and configuration to meet your commercial or industrial applications. Our modular work platforms have up to 500 lbs. capacity. All custom work platforms, regardless of their dimensions and purpose, meet or exceed OSHA standards. Safety and practicality are key components of any of our designs. The custom work platform concept features virtually limitless and flexible design configuration possibilities enables clientele to build large multi-height work platforms that surround machinery or span entire factory or warehouse floor spaces. Benefits: 500 lbs. weight capacity OSHA 1910 and AN. . .
Configurable Work Platforms
Our Configurable Work Platforms allow you to choose the style, height, and configuration to meet your commercial or industrial applications. Our modular work platforms have up to 500 lbs. capacity. All custom work platforms, regardless of their dimensions and purpose, meet or exceed OSHA standards. Safety and practicality are key components of any of our designs. The custom work platform concept features virtually limitless and flexible design configuration possibilities enables clientele to build large multi-height work platforms that surround machinery or span entire factory or warehouse floor spaces.
Benefits:
- 500 lbs. weight capacity
- OSHA 1910 and ANSI compliant design
- 036"W x 9-1/2"D steps with deeper platform at top for added stability.
- Features grip strut tread for slip resistant footing and easy maintenance
- High quality extension units allow you to add up to 3 feet width to any platform
- Rigid 1-1/4" round tubing provides superb construction strength and durability.
- Attach same-height lift extension units to select platforms to add 3 feet of width, or units of different height to create step-down areas for easier access to work sites.
- Virtually limitless and flexible design configuration possibilities enable you to build large multi-height work platforms that surround machinery or span entire factory or warehouse floor spaces.
Configurations:
We will work until your industrial access solution is perfected. Custom equipment can be developed to solve problems ranging from limited work space to unusual maintenance needs. Maximum safety is always a primary consideration in our design and material selection.
**All measurements in the table below are represented in inches, pounds and $USD.
| Configurable Work Platforms | ||||||||||
| Model # | Style | #Steps | Platform size | Overall size | Weight | Price | ||||
| H | W | L | H | W | L | |||||

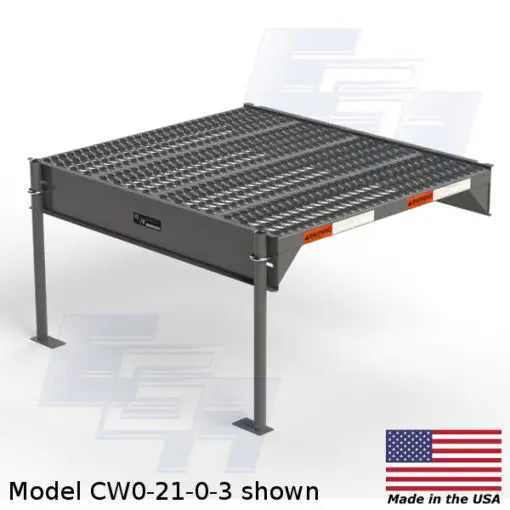

| CW0-21-0-3 | 0 | N/A | 21 | 35 | 39 | 21 | 39 | 39 | 100 | $664.20 |

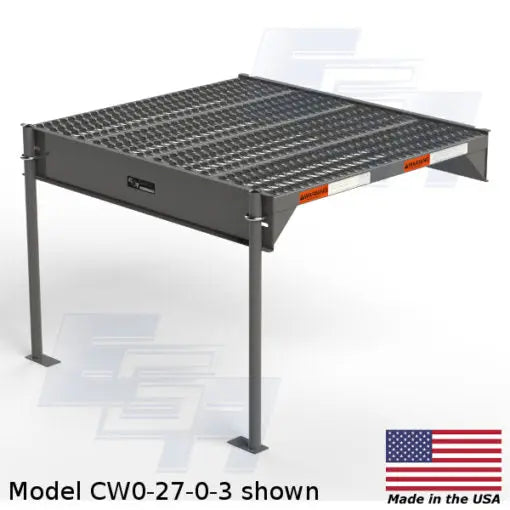

| CW0-27-0-3 | 0 | N/A | 27 | 35 | 39 | 27 | 39 | 39 | 115 | $772.20 |

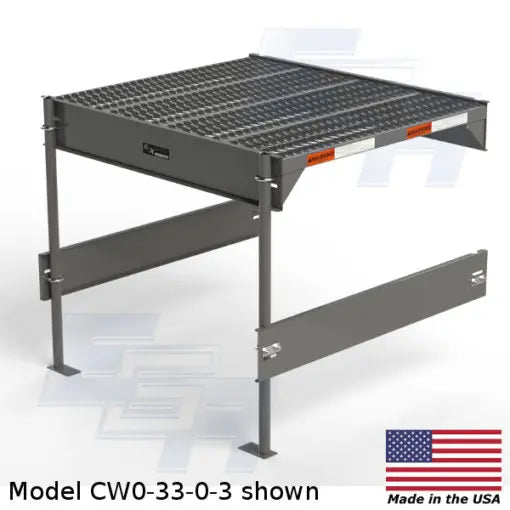

| CW0-33-0-3 | 0 | N/A | 33 | 35 | 39 | 33 | 39 | 39 | 115 | $777.60 |
| CW0-39-0-3 | 0 | N/A | 39 | 35 | 39 | 39 | 39 | 39 | 115 | $789.75 |

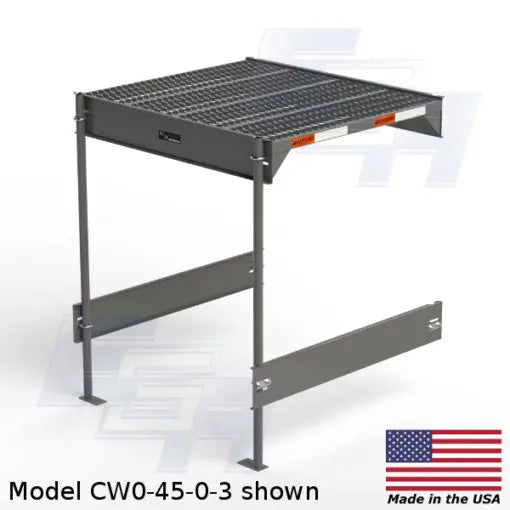

| CW0-45-0-3 | 0 | N/A | 45 | 35 | 39 | 45 | 39 | 39 | 115 | $800.55 |

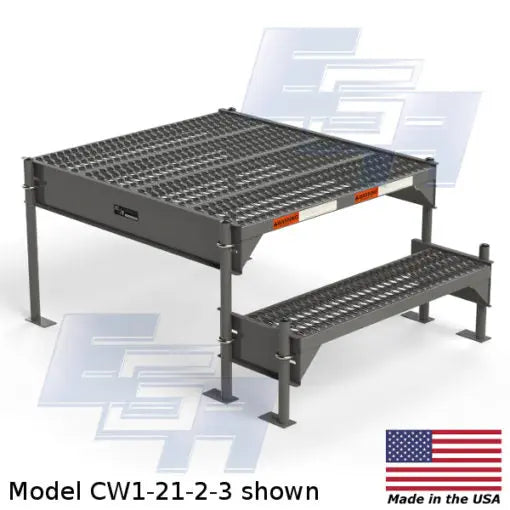

| CW1-21-2-3 | 1 | 2 | 21 | 35 | 39 | 21 | 39 | 48 | 120 | $1,027.35 |

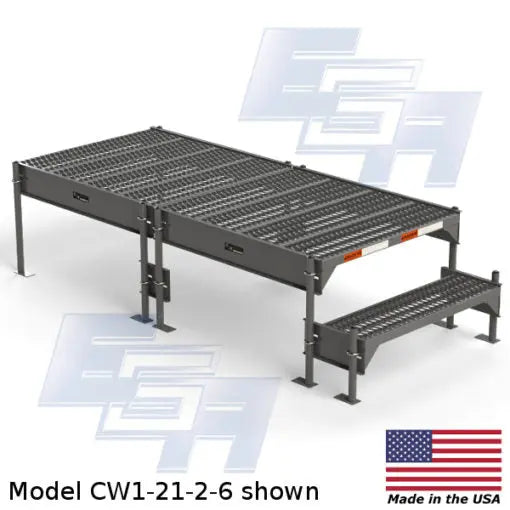

| CW1-21-2-6 | 1 | 2 | 21 | 35 | 77 | 21 | 39 | 86 | 187 | $1,834.65 |

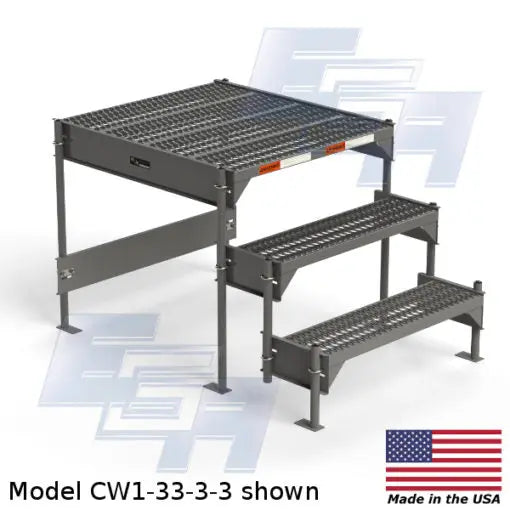

| CW1-33-3-3 | 1 | 3 | 33 | 35 | 39 | 33 | 39 | 57 | 140 | $1,343.25 |

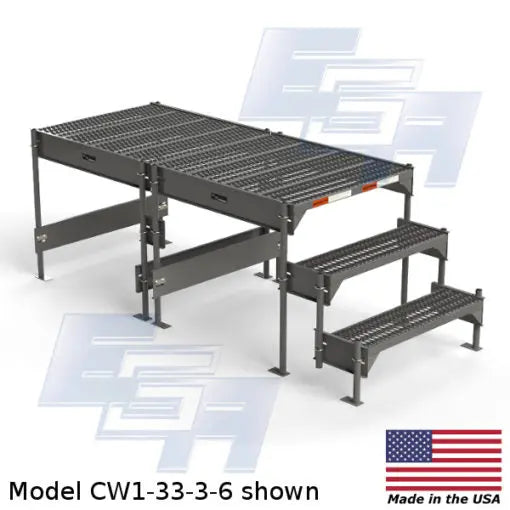

| CW1-33-3-6 | 1 | 3 | 33 | 35 | 77 | 33 | 39 | 95 | 230 | $2,308.50 |

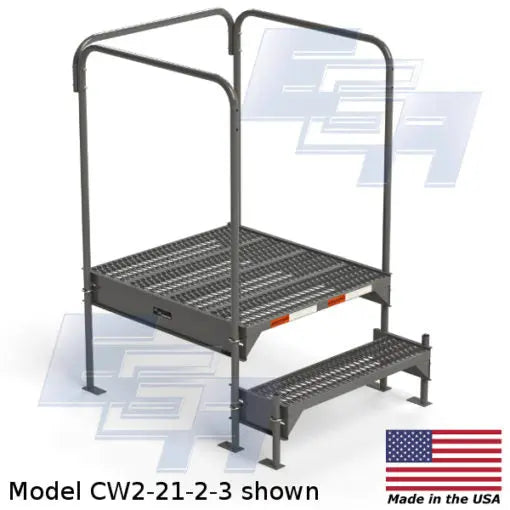

| CW2-21-2-3 | 2 | 2 | 21 | 35 | 39 | 60 | 39 | 48 | 150 | $1,336.50 |

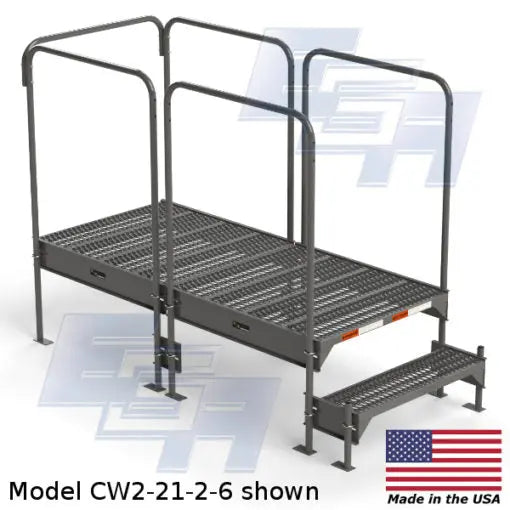

| CW2-21-2-6 | 2 | 2 | 21 | 35 | 77 | 60 | 39 | 86 | 235 | $2,424.60 |

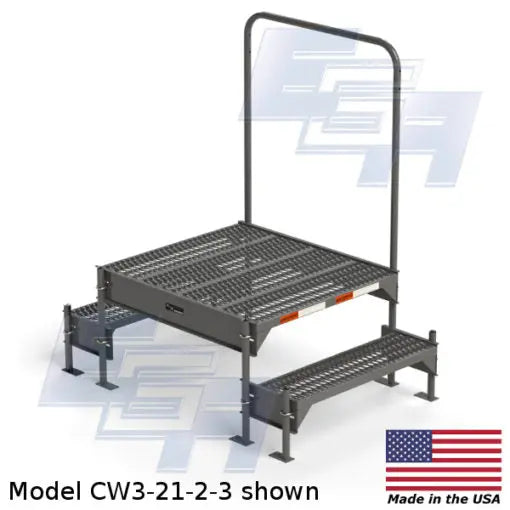

| CW3-21-2-3 | 3 | 2 | 21 | 35 | 39 | 60 | 39 | 57 | 150 | $1,433.70 |

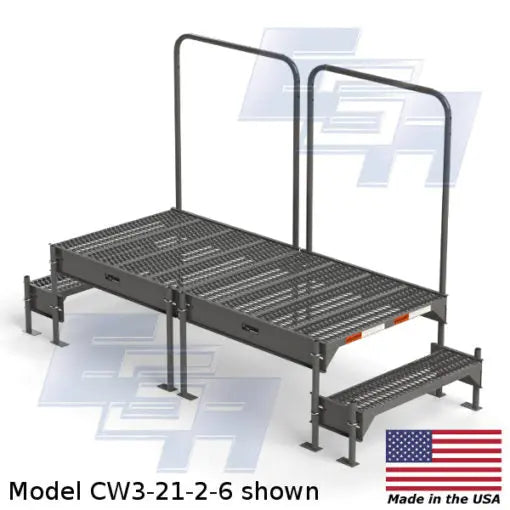

| CW3-21-2-6 | 3 | 2 | 21 | 35 | 77 | 60 | 39 | 95 | 225 | $2,388.15 |

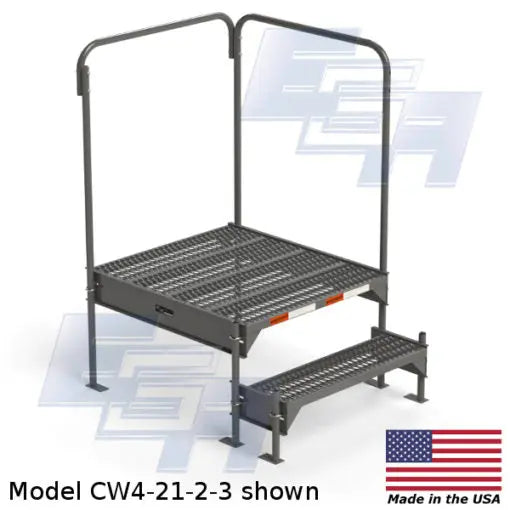

| CW4-21-2-3 | 4 | 2 | 21 | 35 | 39 | 60 | 39 | 48 | 145 | $1,216.35 |

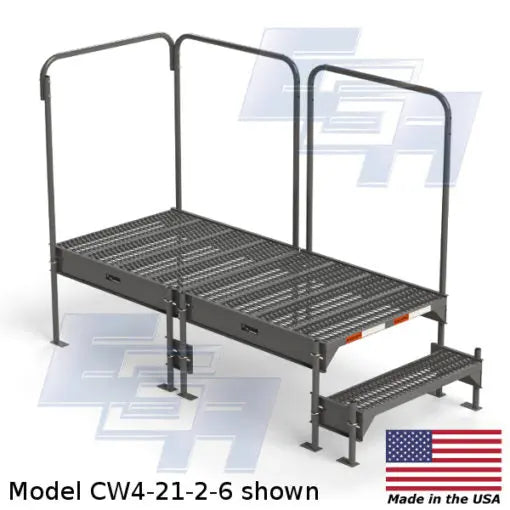

| CW4-21-2-6 | 4 | 2 | 21 | 35 | 77 | 60 | 39 | 86 | 225 | $2,165.40 |

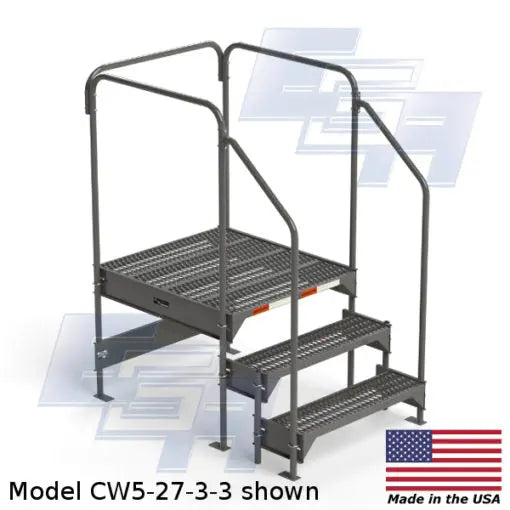

| CW5-27-3-3 | 5 | 3 | 27 | 35 | 39 | 66 | 39 | 57 | 185 | $1,810.35 |

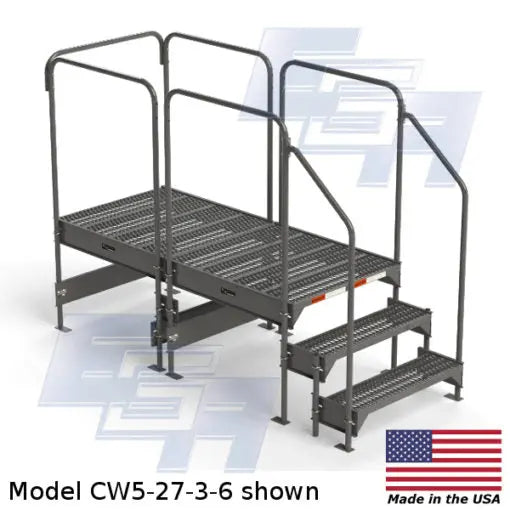

| CW5-27-3-6 | 5 | 3 | 27 | 35 | 77 | 66 | 39 | 95 | 285 | $3,092.85 |
| Model # | Style | #Steps | Platform size | Overall size | Weight | Price | ||||
| H | W | L | H | W | L | |||||

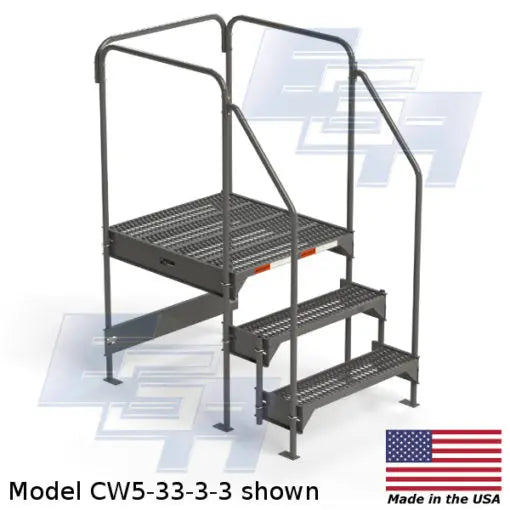

| CW5-33-3-3 | 5 | 3 | 33 | 35 | 39 | 72 | 39 | 57 | 185 | $1,844.10 |

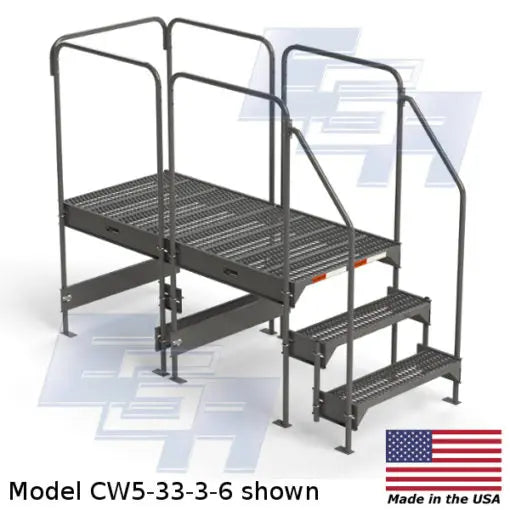

| CW5-33-3-6 | 5 | 3 | 33 | 35 | 77 | 72 | 39 | 95 | 290 | $3,179.25 |

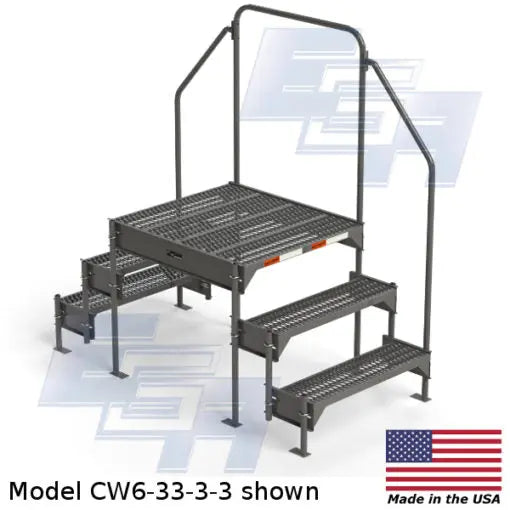

| CW6-33-3-3 | 6 | 3 | 33 | 35 | 39 | 72 | 39 | 75 | 207 | $2,277.45 |

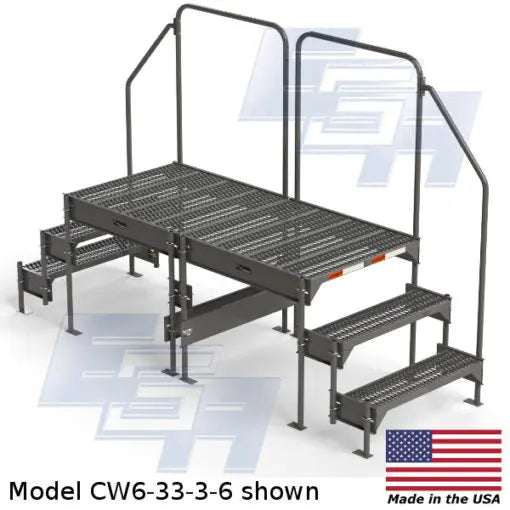

| CW6-33-3-6 | 6 | 3 | 33 | 35 | 77 | 72 | 39 | 113 | 290 | $3,434.40 |

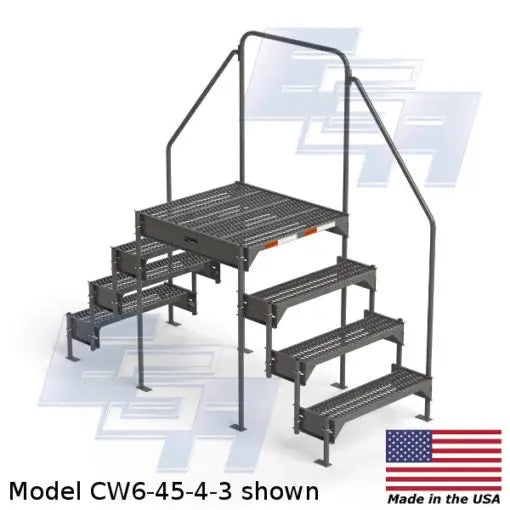

| CW6-45-4-3 | 6 | 4 | 45 | 35 | 39 | 84 | 39 | 93 | 245 | $3,006.45 |

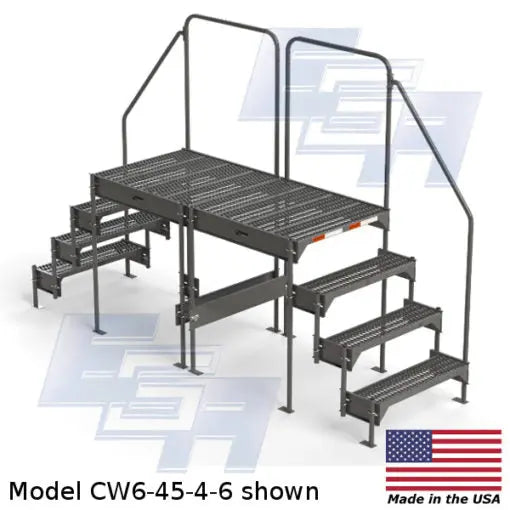

| CW6-45-4-6 | 6 | 4 | 45 | 35 | 77 | 84 | 39 | 131 | 335 | $4,179.60 |

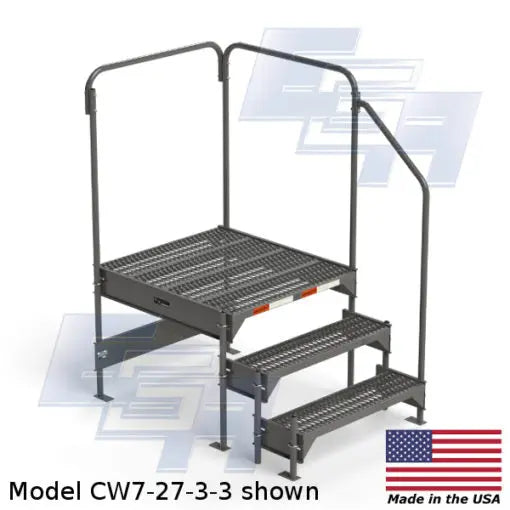

| CW7-27-3-3 | 7 | 3 | 27 | 35 | 39 | 66 | 39 | 57 | 180 | $1,648.35 |

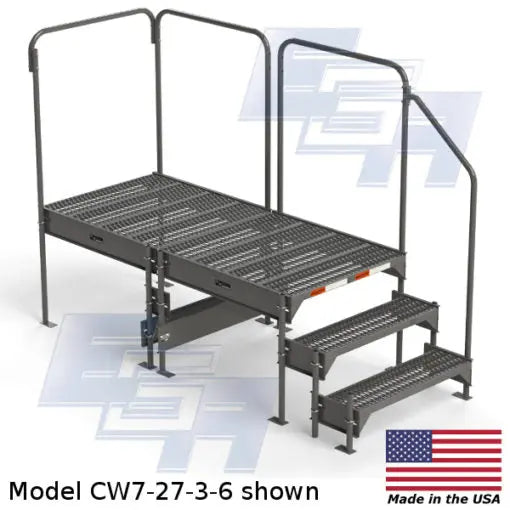

| CW7-27-3-6 | 7 | 3 | 27 | 35 | 77 | 66 | 39 | 95 | 260 | $2,770.20 |

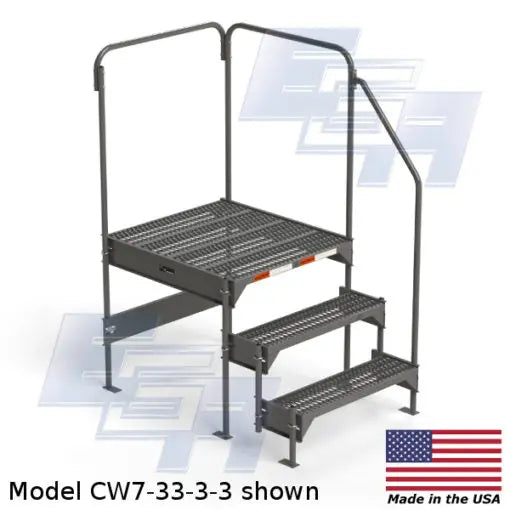

| CW7-33-3-3 | 7 | 3 | 33 | 35 | 39 | 72 | 39 | 57 | 175 | $2,034.45 |

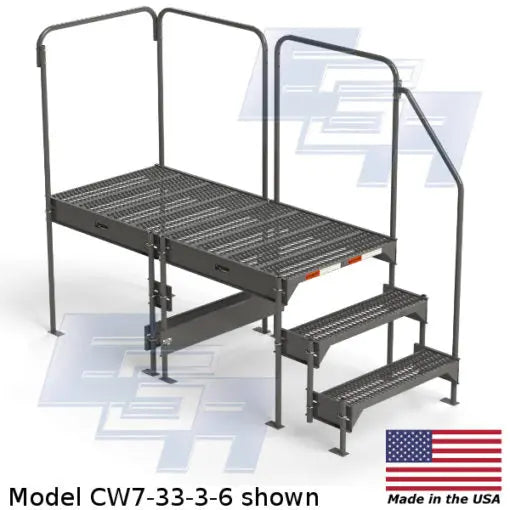

| CW7-33-3-6 | 7 | 3 | 33 | 35 | 77 | 72 | 39 | 95 | 265 | $3,188.70 |

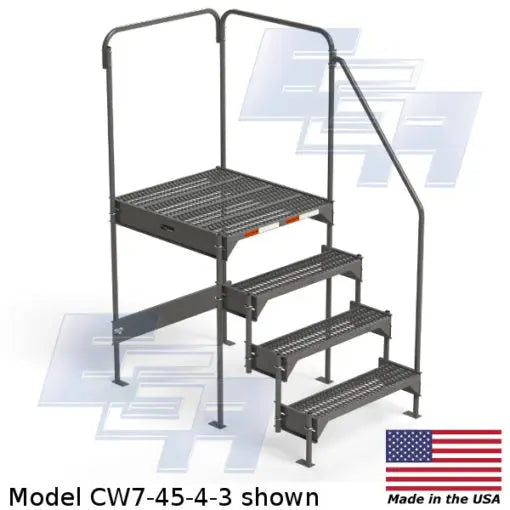

| CW7-45-4-3 | 7 | 4 | 45 | 35 | 39 | 84 | 39 | 66 | 200 | $2,060.10 |

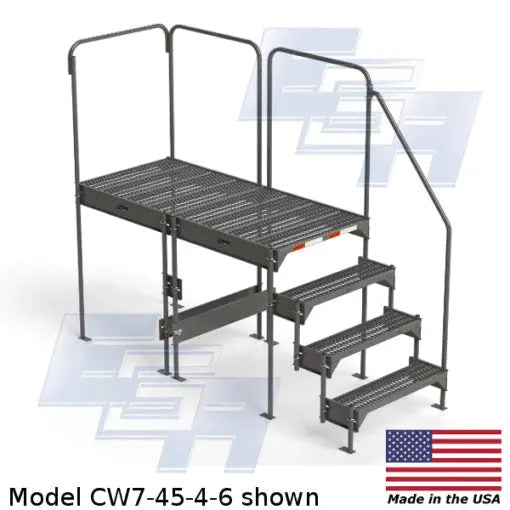

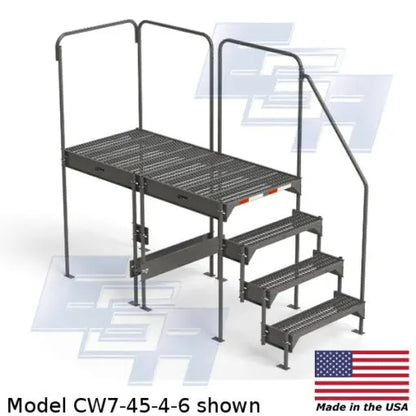

| CW7-45-4-6 | 7 | 4 | 45 | 35 | 77 | 84 | 39 | 104 | 290 | $3,237.30 |

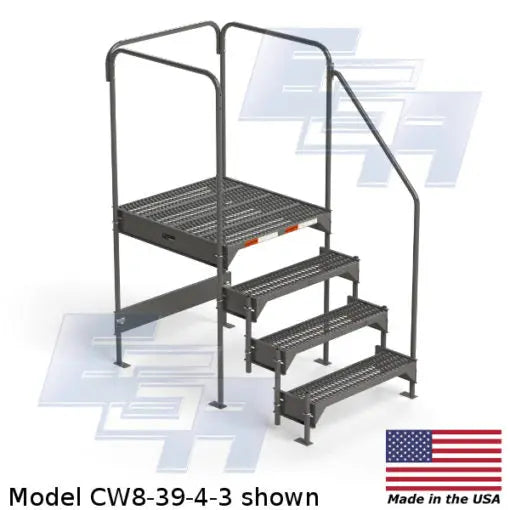

| CW8-39-4-3 | 8 | 4 | 39 | 35 | 39 | 78 | 39 | 66 | 205 | $2,204.55 |
| CW8-39-4-6 | 8 | 4 | 39 | 35 | 77 | 78 | 39 | 104 | 310 | $3,550.50 |

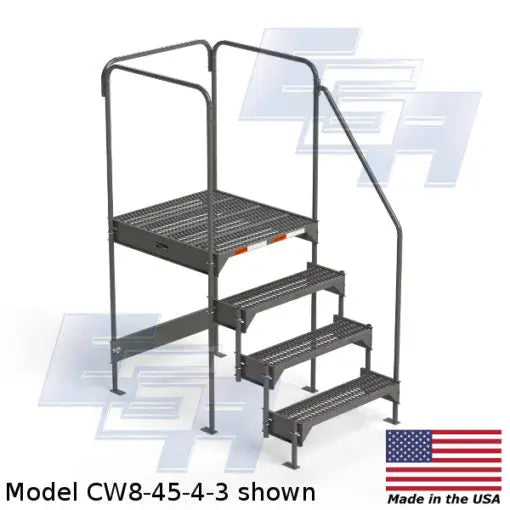

| CW8-45-4-3 | 8 | 4 | 45 | 35 | 39 | 84 | 39 | 66 | 205 | $2,214.00 |
| CW8-45-4-6 | 8 | 4 | 45 | 35 | 77 | 78 | 39 | 104 | 310 | $3,564.00 |

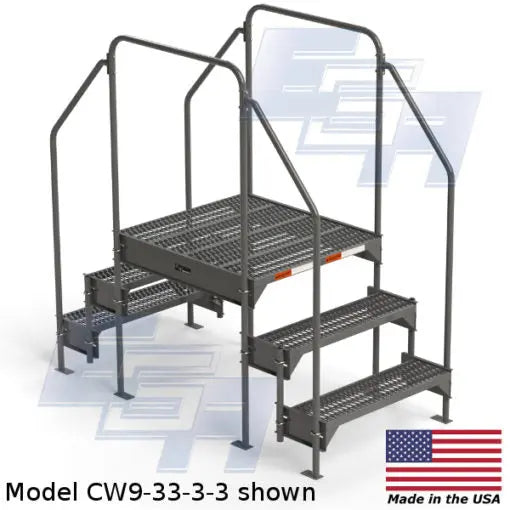

| CW9-33-3-3 | 9 | 3 | 33 | 35 | 39 | 72 | 39 | 75 | 235 | $2,535.30 |
| CW9-33-3-6 | 9 | 3 | 33 | 35 | 77 | 72 | 39 | 113 | 340 | $3,870.45 |
* # of steps is # of risers to top of platform. # of step treads is actually one less than riser.
Fabrication Authorities International can custom fabricate virtually any type of Custom Work Platform. Our expertise includes in-house research and development, fully integrated manufacturing and an extensive materials line. With years of design, engineering and manufacturing experience, our dedicated staff can assist you from concept to completion in a timely fashion. All of our rolling office ladders are made in the USA and meet OSHA and ANSI 3124 standards.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0.
Fax us your request at (888) 909-6780.
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
