Dual Access Work Platform

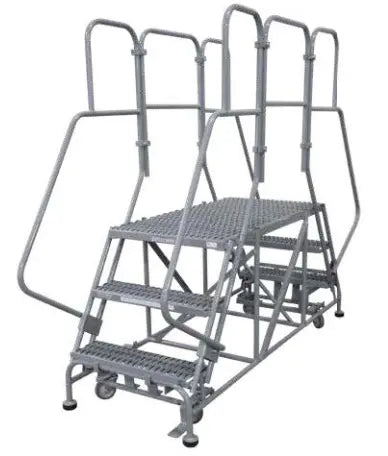

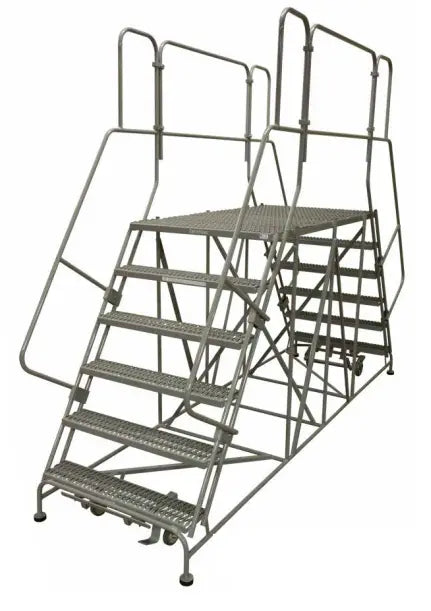

These Dual Access Work Platforms provide dual entry access in a wide range of platform sizes. These industrial work platforms are perfect in work areas that require quick, convenient, and efficient access to work at height.
Features:
| • 800 lbs load rating | • OSHA and ANSI compliant |
| • 1" O.D. tubular frame | • Heavy duty grip strut tread |
| • 59 degree climb angle | • Safe-lock locking mechanism at both ends |
| • 36" Removable handrails | • 2-1/2" diameter 1" thick rubber pads on all 4 legs |
| • Cal-OSHA available | • Gray powder coat finish standard |

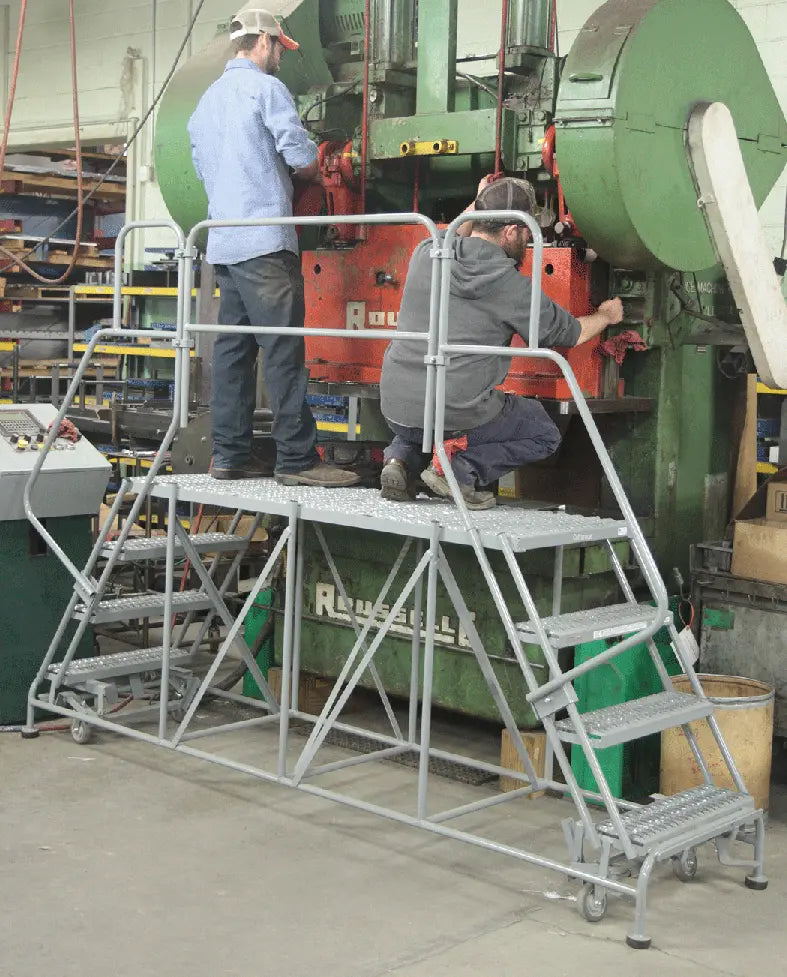

These double entry work platforms are commonly used to work alongside large machinery to enable descent or ascent from both sides of the ladder. Climbing angle is 59 degrees. The ladder is powder coated with high gloss powder. Pick your color from our 11 stock choices. The steps are 7" deep, with platform sizes ranging from 48" to 84". Grip Strut tread is standard. The load rating is 800 lbs. Ladders ship set-up with removable handrails to prevent damage.
Tread Type:
Grip Strut
**All measurements in the table below are represented in inches, pounds and $USD.
Dual Access Work Platforms | |||||||
| # Steps | Platform | Model # | Base Size | Weight | Price | ||
| Height | Width | Width | Length | ||||
| 48" Long Platform | |||||||
| 3 | 30 | 24 | 3DWP2448RL | 28 | 75 | 197 | $1,905.00 |
| 3 | 30 | 36 | 3DWP3648RL | 40 | 75 | 239 | $2,248.00 |
| 4 | 40 | 24 | 4DWP2448RL | 28 | 87 | 217 | $2,120.00 |
| 4 | 40 | 36 | 4DWP3648RL | 40 | 87 | 266 | $2,544.00 |
| 5 | 50 | 24 | 5DWP2448RL | 28 | 99 | 229 | $2,542.00 |
| 5 | 50 | 36 | 5DWP3648RL | 40 | 99 | 297 | $3,055.00 |
| 6 | 60 | 24 | 6DWP2448RL | 28 | 111 | 272 | $2,776.00 |
| 6 | 60 | 36 | 6DWP3648RL | 40 | 111 | 337 | $3,340.00 |
| 7 | 70 | 24 | 7DWP2448RL | 28 | 123 | 297 | $2,984.00 |
| 7 | 70 | 36 | 7DWP3648RL | 40 | 123 | 371 | $3,625.00 |
| 60" Long Platform | |||||||
| 3 | 30 | 24 | 3DWP2460RL | 28 | 87 | 218 | $2,013.00 |
| 3 | 30 | 36 | 3DWP3660RL | 40 | 87 | 267 | $2,419.00 |
| 4 | 40 | 24 | 4DWP2460RL | 28 | 99 | 244 | $2,242.00 |
| 4 | 40 | 36 | 4DWP3660RL | 40 | 99 | 298 | $2,716.00 |
| 5 | 50 | 24 | 5DWP2460RL | 28 | 111 | 266 | $2,676.00 |
| 5 | 50 | 36 | 5DWP3660RL | 40 | 111 | 330 | $3,237.00 |
| 6 | 60 | 24 | 6DWP2460RL | 28 | 123 | 305 | $2,890.00 |
| 6 | 60 | 36 | 6DWP3660RL | 40 | 123 | 376 | $3,515.00 |
| 7 | 70 | 24 | 7DWP2460RL | 28 | 135 | 330 | $3,104.00 |
| 7 | 70 | 36 | 7DWP3660RL | 40 | 135 | 410 | $3,787.00 |
| 72" Long Platform | |||||||
| 3 | 30 | 24 | 3DWP2472RL | 28 | 99 | 232 | $2,170.00 |
| 3 | 30 | 36 | 3DWP3672RL | 40 | 99 | 286 | $2,634.00 |
| 4 | 40 | 24 | 4DWP2472RL | 28 | 111 | 247 | $2,417.00 |
| 4 | 40 | 36 | 4DWP3672RL | 40 | 111 | 316 | $2,910.00 |
| 5 | 50 | 24 | 5DWP2472RL | 28 | 123 | 280 | $2,839.00 |
| 5 | 50 | 36 | 5DWP3672RL | 40 | 123 | 349 | $3,445.00 |
| 6 | 60 | 24 | 6DWP2472RL | 28 | 135 | 318 | $3,083.00 |
| 6 | 60 | 36 | 6DWP3672RL | 40 | 135 | 395 | $3,750.00 |
| 7 | 70 | 24 | 7DWP2472RL | 28 | 147 | 344 | $3,321.00 |
| 7 | 70 | 36 | 7DWP3672RL | 40 | 147 | 429 | $4,017.00 |
| 84" Long Platform | |||||||
| 3 | 30 | 24 | 3DWP2484RL | 28 | 111 | 256 | $2.298.00 |
| 3 | 30 | 36 | 3DWP3684RL | 40 | 111 | 314 | $2,796.00 |
| 4 | 40 | 24 | 4DWP2484RL | 28 | 123 | 279 | $2,571.00 |
| 4 | 40 | 36 | 4DWP3684RL | 40 | 123 | 347 | $3,130.00 |
| 5 | 50 | 24 | 5DWP2484RL | 28 | 135 | 308 | $2,978.00 |
| 5 | 50 | 36 | 5DWP3684RL | 40 | 135 | 383 | $3,612.00 |
| 6 | 50 | 24 | 6DWP2484RL | 28 | 147 | 349 | $3,202.00 |
| 6 | 60 | 36 | 6DWP3684RL | 40 | 147 | 432 | $3,912.00 |
| 7 | 70 | 24 | 7DWP2484RL | 28 | 159 | 377 | $3,460.00 |
| 7 | 70 | 36 | 7DWP3684RL | 40 | 159 | 468 | $4,217.00 |
Fabrication Authorities International specializes in developing custom mobile work platforms to meet your unique workplace safety needs. To ensure a finished product that is safe, ergonomic and a good fit for your accessibility requirements, we collaborate with you throughout all phases of the design and build process. Whether you need to an existing product altered, or a completely new product engineered, fabricated, and delivered, Fabrication Authorities International has the knowledge and experience to get the job done. Contact our friendly and knowledgeable sales technicians for a professional consultation today!
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
