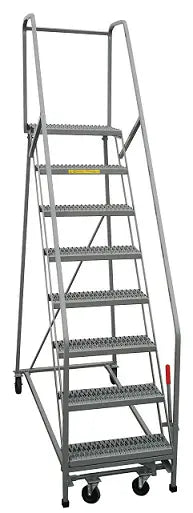

Easy Slope Rolling Access Ladders
Easy Slope Rolling Access Ladders
Easy Slope Rolling Access Ladders These Easy Slope Rolling Access Ladders provide a mobile solution to access vertical heights. These ladders are made of rugged 1 inch square tube design. The 5 step and and above models come standard with a weight activated Lock Step, while the 4 step and below models are spring loaded. Features: • 50 degree easy slope. • 18", 24", or 30"W treads • Slope allows forward facing descent • Rubber tips at stabilizing legs • 5 steps and higher utilize the Lock Step • 14"D Top platform • 4 steps and shorter are Spring Loaded • 500 lbs. load rating • 30"H handrails if equipped • Gray industrial enamel finish The 50° slope allows for. . .
Easy Slope Rolling Access Ladders
These Easy Slope Rolling Access Ladders provide a mobile solution to access vertical heights. These ladders are made of rugged 1 inch square tube design. The 5 step and and above models come standard with a weight activated Lock Step, while the 4 step and below models are spring loaded.
Features:
| • 50 degree easy slope. | • 18", 24", or 30"W treads |
| • Slope allows forward facing descent | • Rubber tips at stabilizing legs |
| • 5 steps and higher utilize the Lock Step | • 14"D Top platform |
| • 4 steps and shorter are Spring Loaded | • 500 lbs. load rating |
| • 30"H handrails if equipped | • Gray industrial enamel finish |
The 50° slope allows for easy and safe forward facing descent to comply with OSHA 1910.29 & ANSI 14.7 standards. These Easy Slope Rolling Access Ladders are perfect for warehouse or industrial use.
Tread Options:
Easy Slope Rolling Access Ladder | |||||||
| Model # | # Steps | Height | Base Size | Weight | Price | ||
| W | D | BS Tread | GS Tread | ||||
| 18"W Treads | |||||||
| PW50-2S18* | 2 | 20 | 20 | 26 | 21 | $250.00 | $325.00 |
| PW50-2SH18 | 2 | 20 | 20 | 26 | 35 | $300.00 | $375.00 |
| PW50-3S18* | 3 | 30 | 20 | 32 | 37 | $325.00 | $400.00 |
| PW50-3SH18 | 3 | 30 | 20 | 32 | 40 | $375.00 | $450.00 |
| PW50-4S18* | 4 | 40 | 20 | 40 | 42 | $375.00 | $450.00 |
| PW50-4SH18 | 4 | 40 | 20 | 40 | 60 | $400.00 | $500.00 |
| PW50-5SH18 | 5 | 50 | 26 | 50 | 71 | $500.00 | $650.00 |
| PW50-6SH18 | 6 | 60 | 26 | 60 | 86 | $575.00 | $725.00 |
| PW50-7SH18 | 7 | 70 | 27 | 70 | 96 | $650.00 | $825.00 |
| 24"W Treads | |||||||
| Model # | # Steps | Height | Base Size | Weight | Price | ||
| W | D | BS Tread | GS Tread | ||||
| PW50-2S30* | 2 | 20 | 26 | 26 | 29 | $275.00 | $350.00 |
| PW50-2SH30 | 2 | 20 | 26 | 26 | 37 | $350.00 | $400.00 |
| PW50-3S30* | 3 | 30 | 26 | 32 | 39 | $350.00 | $425.00 |
| PW50-3SH30 | 3 | 30 | 26 | 32 | 42 | $400.00 | $475.00 |
| PW50-4S30* | 4 | 40 | 26 | 40 | 44 | $425.00 | $525.00 |
| PW50-4SH30 | 4 | 40 | 26 | 40 | 66 | $450.00 | $575.00 |
| PW50-5SH30 | 5 | 50 | 32 | 50 | 79 | $650.00 | $750.00 |
| PW50-6SH30 | 6 | 60 | 32 | 60 | 92 | $700.00 | $850.00 |
| PW50-7SH30 | 7 | 70 | 32 | 70 | 105 | $775.00 | $950.00 |
| PW50-8SH30 | 8 | 80 | 32 | 80 | 123 | $850.00 | $1,050.00 |
| PW50-9SH30 | 9 | 90 | 32 | 90 | 136 | $900.00 | $1,150.00 |
| PW50-10SH30 | 10 | 100 | 32 | 98 | 154 | $1,025.00 | $1,250.00 |
| PW50-11SH30 | 11 | 110 | $1,150.00 | $1,350.00 | |||
| PW50-12SH30 | 12 | 120 | $1,200.00 | $1,550.00 | |||
| PW50-13SH30 | 13 | 130 | $1,400.00 | $1,750.00 | |||
| PW50-14SH30 | 14 | 140 | $1,600.00 | $1,900.00 | |||
| PW50-15SH30 | 15 | 150 | $1,900.00 | $2,150.00 | |||
| 30"W Treads | |||||||
| Model # | # Steps | Height | Base Size | Weight | Price | ||
| W | D | BS Tread | GS Tread | ||||
| PW50-2S35* | 2 | 20 | 32 | 26 | 31 | $300.00 | $400.00 |
| PW50-2SH35 | 2 | 20 | 32 | 26 | 39 | $375.00 | $450.00 |
| PW50-3S35* | 3 | 30 | 32 | 32 | 44 | $375.00 | $475.00 |
| PW50-3SH35 | 3 | 30 | 32 | 32 | 44 | $440.00 | $525.00 |
| PW50-4S35* | 4 | 40 | 32 | 40 | 46 | $475.00 | $575.00 |
| PW50-4SH35 | 4 | 40 | 32 | 40 | 70 | $500.00 | $625.00 |
| PW50-5SH35 | 5 | 50 | 35 | 50 | 87 | $700.00 | $850.00 |
| PW50-6SH35 | 6 | 60 | 35 | 60 | 99 | $750.00 | $950.00 |
| PW50-7SH35 | 7 | 70 | 35 | 70 | 115 | $850.00 | $1,050.00 |
| PW50-8SH35 | 8 | 80 | 35 | 80 | 129 | $900.00 | $1,150.00 |
| PW50-9SH35 | 9 | 90 | 35 | 90 | 145 | $950.00 | $1,250.00 |
| PW50-10SH35 | 10 | 100 | 35 | 98 | 165 | $1,075.00 | $1,350.00 |
| PW50-11SH35 | 11 | 110 | $1,200.00 | $1,450.00 | |||
| PW50-12SH35 | 12 | 120 | $1,300.00 | $1,675.00 | |||
| PW50-13SH35 | 13 | 130 | $1,550.00 | $1,850.00 | |||
| PW50-14SH35 | 14 | 140 | $1,750.00 | $2,000.00 | |||
| *Represents items without handrails | |||||||
If you have unique requirements, Fabrication Authorities International, LLC. has the engineering expertise and manufacturing capability to provide you with a Custom Easy Slope Ladder. Whether you need to an existing product altered or upgraded, or a completely new product engineered, fabricated, and delivered, FAI has the knowledge and experience to get the job done. We have designed and built custom ladders and platforms to help our customers with all of their work access needs. Contact our friendly and knowledgeable sales technicians for a professional consultation today!
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
