Fixed Ladders
Fixed Ladders
Fixed Steel Ladders Standard vertical ladders and caged ladders are typically seen on the sides of buildings and are used to access rooftops. After a certain height, depending on your building codes, a cage is required for added safety. Walk-thru style handrails at the top of the ladder allow workers to walk onto the next level with safety in mind. Our Fixed Steel Ladders are the perfect solution for any vertical access need. Applications range from roof access on buildings to complex systems on large structures such as silos or bridges. Also perfect for emergency exits. These Fixed Steel Ladders meet or exceed OSHA & ANSI Standards. Features: • Heavy duty carbon steel constr. . .

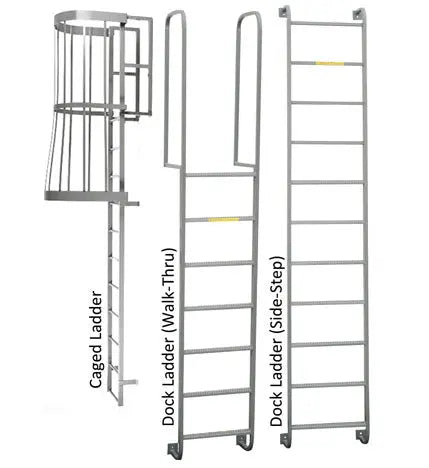

Fixed Steel Ladders
Standard vertical ladders and caged ladders are typically seen on the sides of buildings and are used to access rooftops. After a certain height, depending on your building codes, a cage is required for added safety. Walk-thru style handrails at the top of the ladder allow workers to walk onto the next level with safety in mind.
Our Fixed Steel Ladders are the perfect solution for any vertical access need. Applications range from roof access on buildings to complex systems on large structures such as silos or bridges. Also perfect for emergency exits. These Fixed Steel Ladders meet or exceed OSHA & ANSI Standards.
Features:
| • Heavy duty carbon steel construction | • 42”H handrails if equipped |
| • 500 lbs. capacity | • Many sizes to choose from |
| • 22” or 24" overall width | • Gray enamel finish |
| • 7”D wall mounts | • OSHA and ANSI compliant design |
| • Traction tread rungs | • Custom options and designs available |
We have the capability build these to any height your facility requires. We also create custom designs to meet specific building codes and customer needs.
Also available in aluminum and stainless steel construction!
Tread:

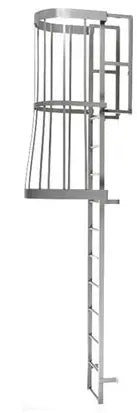

Our standard fixed steel ladder are combined with a safety cage to offer superb fall protection! They are available in a variety of sizes to suit your needs and are ideal for fire escape, hatchway or side step applications. Cage features include: flared bottom for easy access, gray enamel paint standard with safety yellow available.
**All measurements in the table below are represented in inches, pounds and $USD.
Caged & Walk-Thru Model Fixed Ladders | ||||||
| Product Example | *Model | # Steps | Step Width | Height | Model # | Price |
 | CG or WT | 11 | 24 | 120 | 11FLC | $1,500.00 |
| CG or WT | 12 | 24 | 132 | 12FLC | $1,650.00 | |
| CG or WT | 13 | 24 | 144 | 13FLC | $1,750.00 | |
| CG or WT | 14 | 24 | 156 | 14FLC | $1,900.00 | |
| CG only | 15 | 24 | 168 | 15FLC | $2,000.00 | |
| CG only | 16 | 24 | 180 | 16FLC | $2,100.00 | |
| CG only | 17 | 24 | 192 | 17FLC | $2,200.00 | |
| CG only | 18 | 24 | 204 | 18FLC | $2,300.00 | |
| CG only | 19 | 24 | 216 | 19FLC | $2,500.00 | |
| CG only | 20 | 24 | 228 | 20FLC | $2,650.00 | |
| CG only | 21 | 24 | 240 | 21FLC | $2,800.00 | |
| *CG - Caged WT-Walk-Thru (handrails only) | ||||||
Our Fixed Steel Ladders with Walk Through Handrails offer all-welded, one-piece construction on 2 to 10 rung models. larger models available, call for pricing! Designed for safe landing access, the walk-thru handrails extend 42″ above landing surface.
Walk-Thru Model Dock Ladder | ||||||
| Product Example | # Steps | Top Step Height | Step Width | Weight | Model # | Price |
 | 2 | 18 | 22 | 36 | DLWT-22 | $260.00 |
| 3 | 30 | 22 | 40 | DLWT-23 | $290.00 | |
| 4 | 42 | 22 | 44 | DLWT-24 | $330.00 | |
| 5 | 54 | 22 | 48 | DLWT-25 | $360.00 | |
| 6 | 66 | 22 | 52 | DLWT-26 | $400.00 | |
| 7 | 78 | 22 | 56 | DLWT-27 | $450.00 | |
| 8 | 90 | 22 | 60 | DLWT-28 | $475.00 | |
| 9 | 102 | 22 | 64 | DLWT-29 | $525.00 | |
| 10 | 114 | 22 | 68 | DLWT-210 | $550.00 | |
| **Walk-Thru models feature 42"H handrails. | ||||||

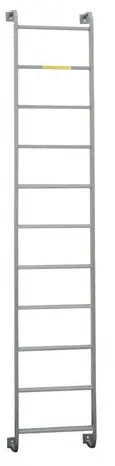

Our Fixed Steel Ladder with side step landing access offer sure footing with serrated, non slip treads. Side Step Fixed Steel Access Ladders are designed to help access docks and loading bays where workers must step sideways from the ladder in order to reach the landing.
**All measurements in the table below are represented in inches, pounds and $USD.
Side Exit Model Dock Ladder | ||||||
| Product Example | # Steps | Overall Height | Step Width | Weight | Model # | Price |
 | 2 | 72 | 22 | 36 | DLSS-26 | $330.00 |
| 3 | 84 | 22 | 40 | DLSS-27 | $360.00 | |
| 4 | 96 | 22 | 44 | DLSS-28 | $390.00 | |
| 5 | 108 | 22 | 48 | DLSS-29 | $400.00 | |
| 6 | 120 | 22 | 52 | DLSS-30 | $425.00 | |
| 7 | 132 | 22 | 56 | DLSS-31 | $450.00 | |
| 8 | 144 | 22 | 60 | DLSS-32 | $475.00 | |
| 9 | 156 | 22 | 64 | DLSS-33 | $500.00 | |
| 10 | 168 | 22 | 68 | DLSS-34 | $525.00 | |
| **Side step models feature 4 extra rungs to assist users to get up and over the ladders. | ||||||
Optional Items Available:
-Galvanized finish
-Aluminum construction
-Wider or narrower steps or rungs
-“Hatch” caged design with no handrails
Fabrication Authorities International, LLC. offers a wide array of fixed dock ladders to satisfy a variety of applications. Our experienced sales technicians are committed to provide you with fast, responsible, and reliable service, including a professional consultation to determine the products needed and create a custom solution for your business. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
