Fixed Steel Ladders
Fixed Steel Ladders
Fixed Steel Ladders Fixed Steel Ladders are designed for use where safe, solid vertical climbing access is required. They are available in 3' to 29' sizes and are ideal for hatch way or side step landing access. Also available in hot dipped galvanized and stainless steel construction. Please contact us for pricing! Features: * Carbon steel construction * 300 lbs. capacity * Gray powder-coated paint finish * 7" Stand off brackets * 16"W x 3/4"D Corrugated steel rungs * Safety yellow color available * Side members are 1/4" x 2" x 2" steel angle * Rungs spaced on 12" centers Our Fixed Steel Ladders with Walk Thru Handrails are available in 2 models. The "F Series" . . .

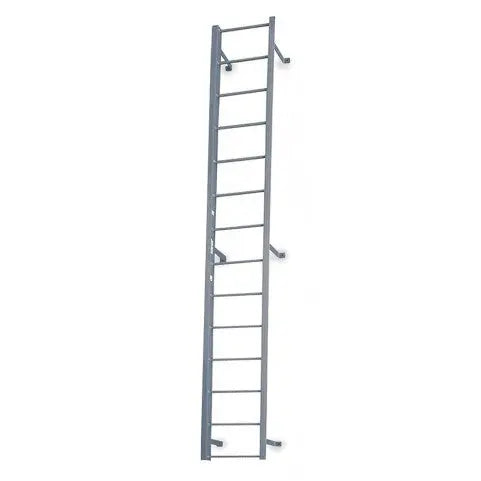

Fixed Steel Ladders
Fixed Steel Ladders are designed for use where safe, solid vertical climbing access is required. They are available in 3' to 29' sizes and are ideal for hatch way or side step landing access. Also available in hot dipped galvanized and stainless steel construction. Please contact us for pricing!
Features:
| * Carbon steel construction | * 300 lbs. capacity |
| * Gray powder-coated paint finish | * 7" Stand off brackets |
| * 16"W x 3/4"D Corrugated steel rungs | * Safety yellow color available |
| * Side members are 1/4" x 2" x 2" steel angle | * Rungs spaced on 12" centers |
Our Fixed Steel Ladders with Walk Thru Handrails are available in 2 models. The "F Series" models are all welded, heavy duty, one piece assemblies. The "M Series" models are heavy duty sub-assemblies. No section is greater than 7' in length. The 'M' series will be much more economical to ship.
**All measurements in the table below are represented in inches, pounds and $USD.
| Fixed Steel Ladders | |||||||||
| # Rungs | Overall Length | Top to Bottom Length | Standard Model | Models with Safety Cage | |||||
| Weight | Series F Model # | Price | Series M Model # | Series F Model # | Weight | Price | |||
| 4 | 3' 3" | 3' | 35 | F4S | $297.00 | NOTE: Although not required by OSHA for 4 through 10 step models, safety cages are offered (and required) on models with 11+ rungs. | |||
| 5 | 4' 3" | 4' | 43 | F5S | $364.0 | ||||
| 6 | 5' 3" | 5' | 52 | F6S | $419.00 | ||||
| 7 | 6' 3" | 6' | 60 | F7S | $482.00 | ||||
| 8 | 7' 3" | 7' | 68 | F8S | $550.00 | ||||
| 9 | 8' 3" | 8' | 77 | F9S | $638.00 | ||||
| 10 | 9' 3" | 9' | 88 | F10S | $693.00 | ||||
| 11 | 10' 3" | 10' | 96 | F11S | $753.00 | M11SC | F11SC | 156 | $1,570.00 |
| 12 | 11' 3" | 11' | 105 | F12S | $810.00 | M12SC | F12SC | 182 | $1,705.00 |
| 13 | 12' 3" | 12' | 113 | F13S | $872.00 | M13SC | F13SC | 197 | $1,855.00 |
| 14 | 13' 3" | 13' | 122 | F14S | $935.00 | M14SC | F14SC | 213 | $1,984.00 |
| 15 | 14' 3" | 14' | 130 | F15S | $995.00 | M15SC | F15SC | 268 | $2,234.00 |
| 16 | 15' 3" | 15' | 139 | F16S | $1,081.00 | M16SC | F16SC | 282 | $2,417.00 |
| 17 | 16' 3" | 16' | 150 | F17S | $1,153.00 | M17SC | F17SC | 298 | $2,548.00 |
| 18 | 17' 3" | 17' | 158 | F18S | $1,204.00 | M18SC | F18SC | 316 | $2,691.00 |
| 19 | 18' 3" | 18' | 167 | F19S | $1,262.00 | M19SC | F19SC | 342 | $2,757.00 |
| 20 | 19' 3" | 19' | 175 | F20S | $1,328.00 | M20SC | F20SC | 357 | $2,908.00 |
| 21 | 20' 3" | 20' | - | - | - | M21SC | F21SC | 373 | $3,057.00 |
| 22 | 21' 3" | 21' |
NOTE: | M22SC | F22SC | 388 | $3,187.00 | ||
| 23 | 22' 3" | 22' | M23SC | F23SC | 414 | $3,296.00 | |||
| 24 | 23' 3" | 23' | M24SC | F24SC | 429 | $3,451.00 | |||
| 25 | 24' 3" | 24' | M25SC | F25SC | 444 | $3,597.00 | |||
| 26 | 25' 3" | 25' | M26SC | F26SC | 471 | $3,737.00 | |||
| 27 | 26' 3" | 26' | M27SC | F27SC | 486 | $3,925.00 | |||
| 28 | 27' 3" | 27' | M28SC | F28SC | 501 | $4,073.00 | |||
| 29 | 28' 3" | 28' | M29SC | F29SC | 559 | $4,360.00 | |||
| 30 | 29' 3" | 29' | M30SC | F30SC | 575 | $4,510.00 | |||
Fabrication Authorities International offers a wide array of fixed dock ladders to satisfy a variety of applications. Our experienced sales technicians are committed to provide you with fast, responsible, and reliable service, including a professional consultation to determine the products needed and create a custom solution for your business. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
