FRP Composite Cantilever Ladder

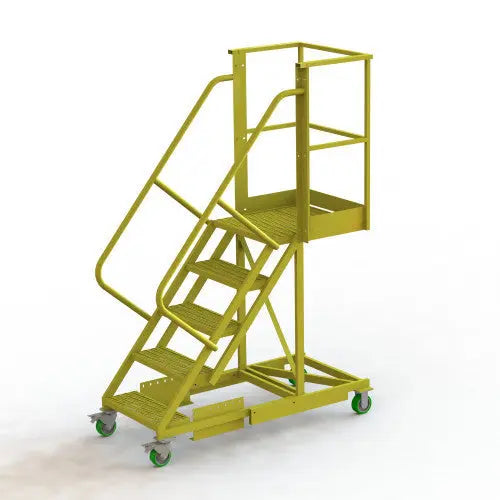

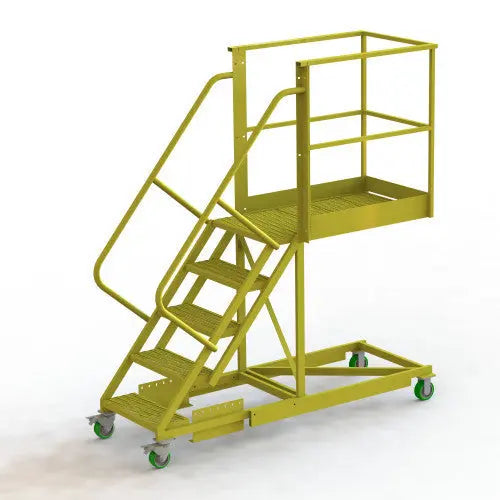

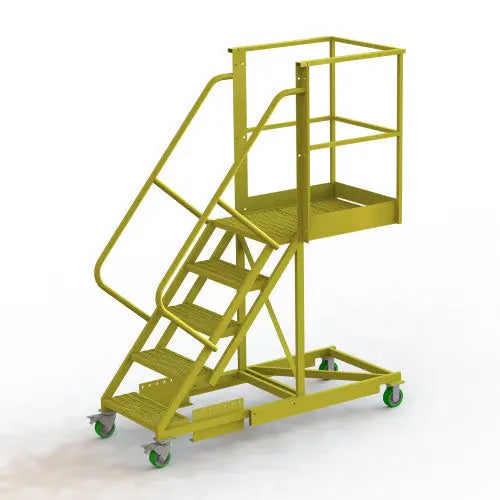

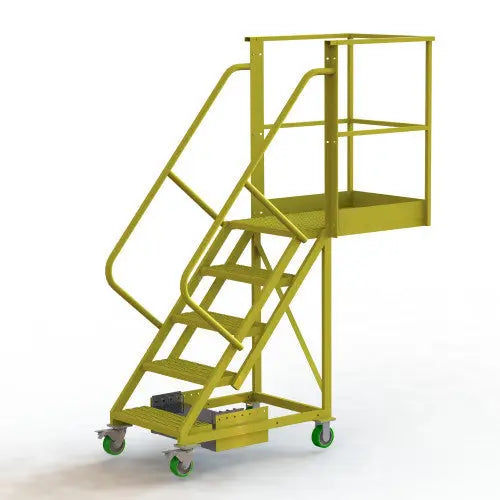

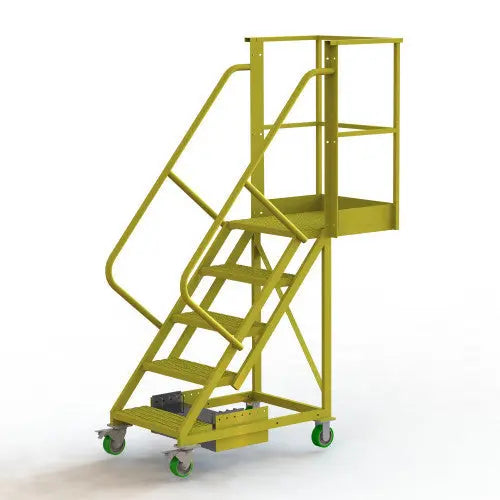

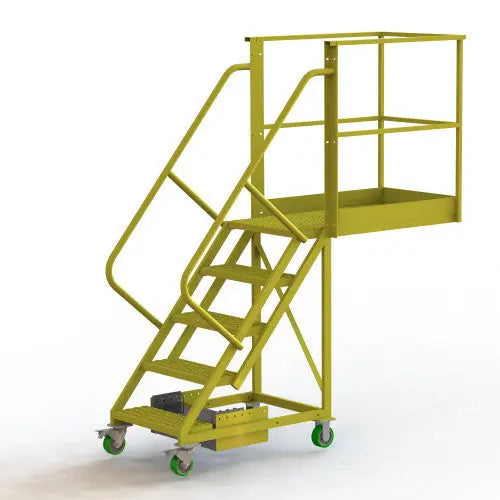

The Composite Cantilever Ladder allows access to hard to reach areas over obstacles by allowing the platform to cantilever beyond the back of the ladder. You may choose from the Supported Cantilever model with bottom support legs that roll under an obstacle or the Unsupported Cantilever model which is counterweighted for capacity.
Features:
| • Supported or Unsupported models | • 300 lbs. capacity (500 lbs. option) |
| • 1" x 2" rectangular tubing frame | • Square mesh FRP non slip grating and steps |
| • Bolted and epoxied construction | • Custom options available |
| • 5" x 2" polyurethane total-lock swivel casters | • 50° forward descent incline |
| • 42"H handrails with 21" mid-rails and 4" toe-boards | • OSHA and ANSI compliant design |
**All the measurements in the table below are represented in inches, pounds and $USD.
| Cantilever Ladders | ||||||||
| Steps | Platform Height | Base Length | Step Width | Model# Open Grating | Price | Model# Closed Grating | Price | |
| 20" Cantilever - Supported Model | ||||||||
| 5 | 50 | 64 | 24 | SCL-C-502420-OG | contact | SCL-C-502420-CG | contact | |
| 6 | 60 | 72 | 24 | SCL-C-602420-OG | contact | SCL-C-602420-CG | contact | |
| 7 | 70 | 81 | 24 | SCL-C-702420-OG | contact | SCL-C-702420-CG | contact | |
| 8 | 80 | 89 | 24 | SCL-C-802420-OG | contact | SCL-C-802420-CG | contact | |
| 9 | 90 | 97 | 24 | SCL-C-902420-OG | contact | SCL-C-902420-CG | contact | |
| 30" Cantilever - Supported Model | ||||||||
| 5 | 50 | 74 | 24 | SCL-C-502430-OG | contact | SCL-C-502430-CG | contact | |
| 6 | 60 | 82 | 24 | SCL-C-602430-OG | contact | SCL-C-602430-CG | contact | |
| 7 | 70 | 91 | 24 | SCL-C-702430-OG | contact | SCL-C-702430-CG | contact | |
| 8 | 80 | 99 | 24 | SCL-C-802430-OG | contact | SCL-C-802430-CG | contact | |
| 9 | 90 | 107 | 24 | SCL-C-902430-OG | contact | SCL-C-902430-CG | contact | |
| 40" Cantilever - Supported Model | ||||||||
| 5 | 50 | 84 | 24 | SCL-C-502440-OG | contact | SCL-C-502440-CG | contact | |
| 6 | 60 | 92 | 24 | SCL-C-602440-OG | contact | SCL-C-602440-CG | contact | |
| 7 | 70 | 101 | 24 | SCL-C-702440-OG | contact | SCL-C-702440-CG | contact | |
| 8 | 80 | 109 | 24 | SCL-C-802440-OG | contact | SCL-C-802440-CG | contact | |
| 9 | 90 | 117 | 24 | SCL-C-902440-OG | contact | SCL-C-902440-CG | contact | |
| 20" Cantilever - Unsupported Model | ||||||||
| 5 | 50 | 64 | 24 | UCL-C-502420-OG | contact | UCL-C-502420-CG | contact | |
| 6 | 60 | 72 | 24 | UCL-C-602420-OG | contact | UCL-C-602420-CG | contact | |
| 7 | 70 | 81 | 24 | UCL-C-702420-OG | contact | UCL-C-702420-CG | contact | |
| 8 | 80 | 89 | 24 | UCL-C-802420-OG | contact | UCL-C-802420-CG | contact | |
| 9 | 90 | 97 | 24 | UCL-C-902420-OG | contact | UCL-C-902420-CG | contact | |
| 30" Cantilever - Unsupported Model | ||||||||
| 5 | 50 | 74 | 24 | UCL-C-502430-OG | contact | UCL-C-502430-CG | contact | |
| 6 | 60 | 82 | 24 | UCL-C-602430-OG | contact | UCL-C-602430-CG | contact | |
| 7 | 70 | 91 | 24 | UCL-C-702430-OG | contact | UCL-C-702430-CG | contact | |
| 8 | 80 | 99 | 24 | UCL-C-802430-OG | contact | UCL-C-802430-CG | contact | |
| 9 | 90 | 107 | 24 | UCL-C-902430-OG | contact | UCL-C-902430-CG | contact | |
| 40" Cantilever - Unsupported Model | ||||||||
| 5 | 50 | 84 | 24 | UCL-C-502440-OG | contact | UCL-C-502440-CG | contact | |
| 6 | 60 | 92 | 24 | UCL-C-602440-OG | contact | UCL-C-602440-CG | contact | |
| 7 | 70 | 101 | 24 | UCL-C-702440-OG | contact | UCL-C-702440-CG | contact | |
| 8 | 80 | 109 | 24 | UCL-C-802440-OG | contact | UCL-C-802440-CG | contact | |
| 9 | 90 | 117 | 24 | UCL-C-902440-OG | contact | UCL-C-902440-CG | contact | |
Fabrication Authorities International can engineer and manufacture a Cantilever Ladder to accommodate any configuration of space and work requirements. We are dedicated to providing you with fast, responsible, and reliable service, including a professional consultation with our sales technicians to provide you with your custom access solution. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
