Ground Lift Scissor Tables
Ground Lift Scissor Tables

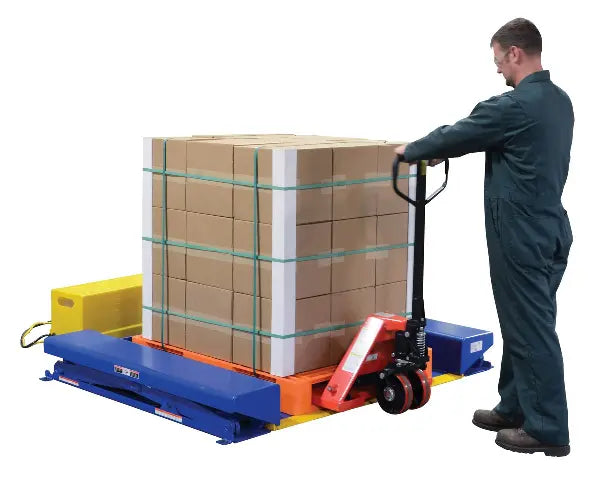

A Ground Lift Scissor Table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height.
***Please be aware that all prices do NOT include freight.***
We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.
Ground Lift Scissor Tables

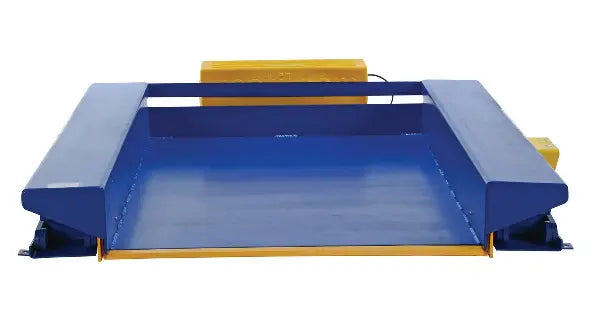

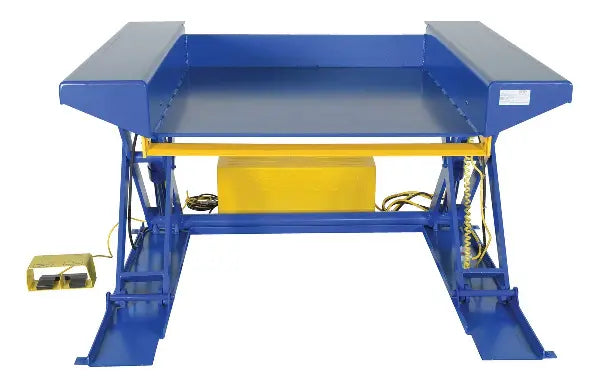

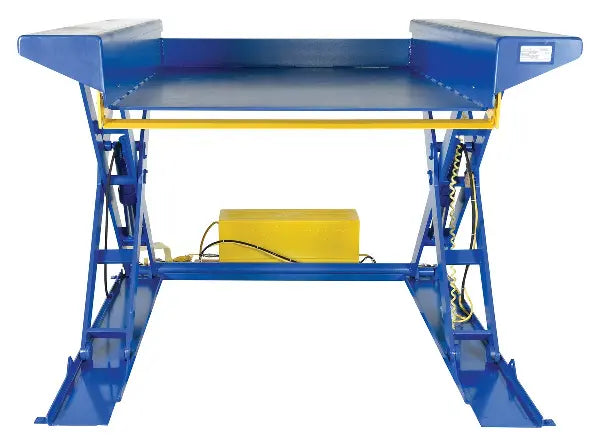

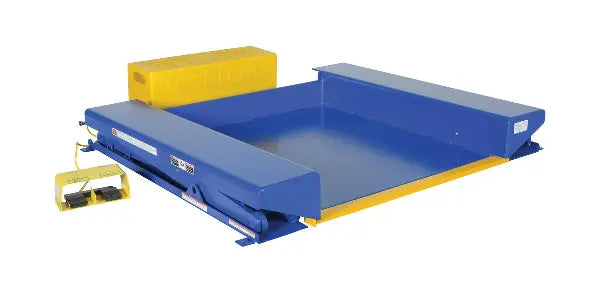

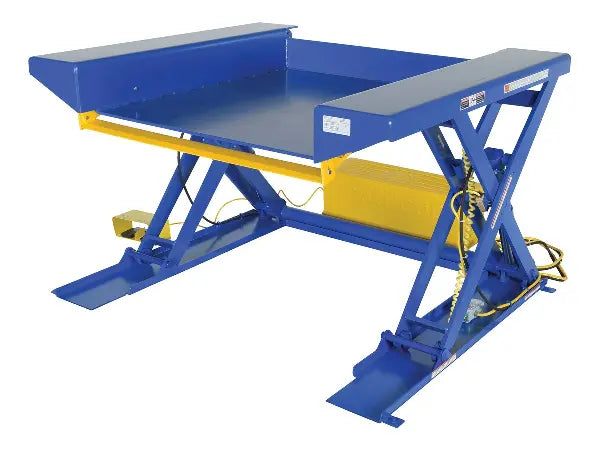

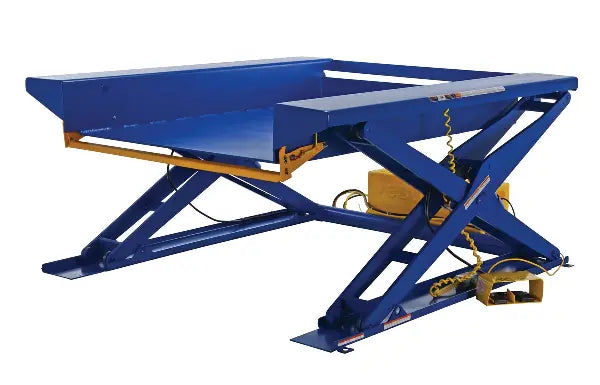

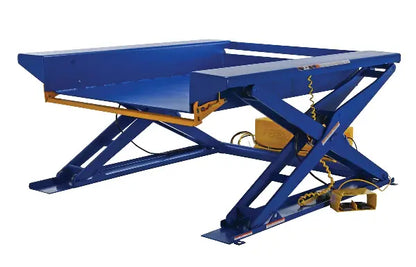

A Ground Lift Scissor Table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. An entry-side electric toe guard protects pinch points during lowering of the table. A safety velocity fuse is included to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. A variety of voltages are available.
- Perfect for ergonomic alignment
- Built-in safety features to minimize vulnerability
- Integral system to maintain platform height
- Remote power for use away from table
**Measurements in the table below are represented in inches, pounds and $USD.
| Ground Lift Scissor Table | ||||||||||||
| Model # | Image | Platform Size | Capacity | Height | Overall Size | Wt. | Price | |||||
| W | L | Max | Min | W | L | H | ||||||
| EHLTG-3850-2-36 |  |
38" | 51-1/2" | 2,000 | 36" | 1/2" | 60-13/16" | 56-1/4" | 8-1/2" | 1237 | $6,549.00 | |
| EHLTG-3850-4-36 |  |
38" | 51-1/2" | 4,000 | 36" | 1/2" | 60-13/16" | 56-1/4" | 8-1/2" | 1257 | $7,718.00 | |
| EHLTG-4450-2-36 |  |
44" | 51-1/2" | 2,000 | 36" | 1/2" | 66-13/16" | 56-1/4" | 8-1/2" | 1455 | $6,673.00 | |
| EHLTG-4450-4-36 |  |
44" | 51-1/2" | 4,000 | 36" | 1/2" | 66-13/16" | 56-1/4" | 8-1/2" | 1446 | $7,955.00 | |
| EHLTG-5250-2-36 |  |
52" | 51-1/2" | 2,000 | 36" | 1/2" | 74-13/16" | 56-1/4" | 8-1/2" | 1455 | $6,881.00 | |
| EHLTG-5250-4-36 |  |
52" | 51-1/2" | 4,000 | 36" | 1/2" | 74-13/16" | 56-1/4" | 8-1/2" | 1530 | $8,234.00 | |
| EHLTG-4470-2-48 |  |
44" | 73" | 2,000 | 48" | 1/2" | 67-1/16 | 78" | 10-7/16" | 1992 | $8,566.00 | |
| EHLTG-4470-4-48 |  |
44" | 73" | 4,000 | 48" | 1/2" | 67-1/16" | 78" | 10-7/16" | 2068 | $9,619.00 | |

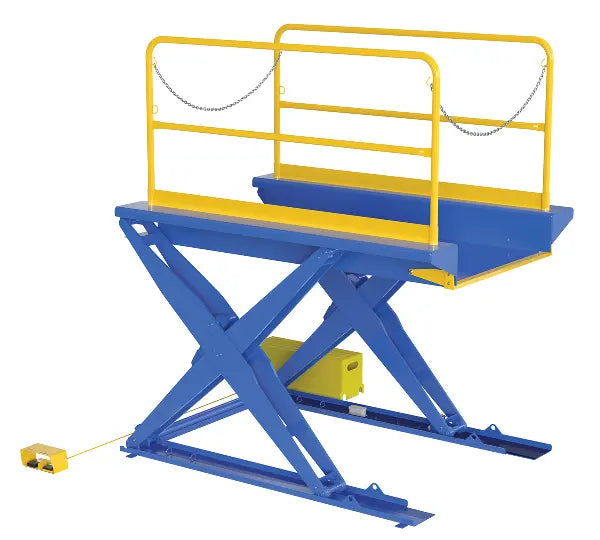

| EHLTG-4484-3-54 |  |
44" | 84" | 3,000 | 54" (106-1/2" w/ Handrails) |
1/2" (52-1/2" w/ Handrails) |
70-11/16" | 92" | 106-1/2" | 2556 | $11,938.00 | |

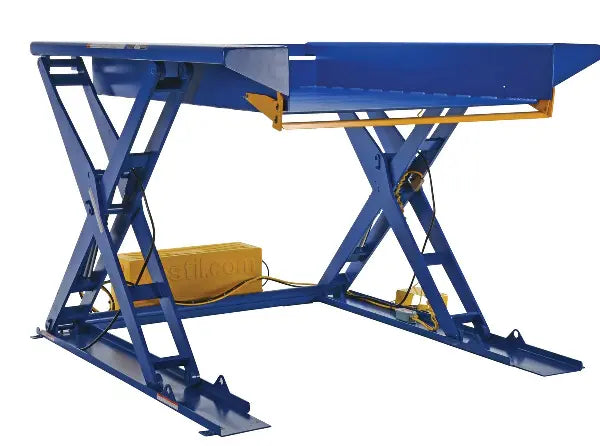

| EHLTG-5270-2-48 |  |
52" | 73" | 2,000 | 48" | 1/2" | 75-1/16" | 78" | 10-7/16" | 2101 | $9,654.00 | |

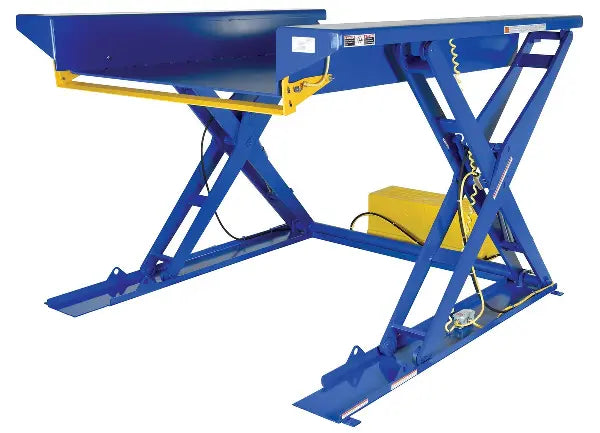

| EHLTG-5270-4-48 |  |
52" | 73" | 4,000 | 48" | 1/2" | 75-1/16" | 78" | 10-7/16" | 2176 | $9,799.00 | |
| EHLTG-5284-3-54 |  |
52" | 84" | 3,000 | 54" (106-1/2" w/ Handrails) |
1/2" (52-1/2" w/ Handrails) |
78-11/16" | 92" | 106-1/2" | 2684 | $12,399.00 | |
| Partial Stainless Steel Ground Lift Scissor Table | ||||||||||||
| Model # | Image | Platform Size | Capacity | Height | Overall Size | Wt. | Price | |||||
| W | L | Max | Min | W | L | H | ||||||
| EHLTG-3850-2-36-PSS |  |
38" | 50" | 2,000 | 36" | 1/2" | 61" | 56" | 44-1/2" | 1252 | $10,104.00 | |
| EHLTG-3850-4-36-PSS |  |
38" | 50" | 4,000 | 36" | 1/2" | 61" | 56" | 44-1/2" | 1272 | $10,683.00 | |

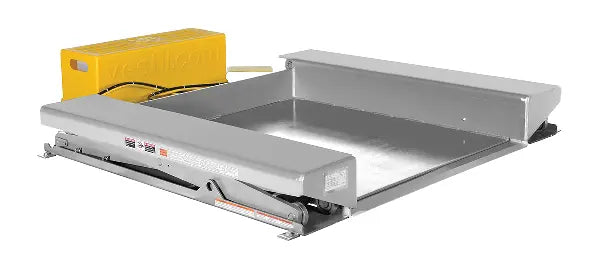

| EHLTG-4450-2-36-PSS |  |
44" | 50" | 2,000 | 36" | 1/2" | 67" | 56" | 44-1/2" | 1315 | $11,231.00 | |
| EHLTG-4450-4-36-PSS |  |
44" | 50" | 4,000 | 36" | 1/2" | 67" | 56" | 44-1/2" | 1336 | $11,476.00 | |
| EHLTG-4470-2-48-PSS |  |
44" | 70" | 2,000 | 48" | 1/2" | 67-1/16" | 73-1/4" | 56-1/2" | 2045 | $13,382.00 | |
| EHLTG-4470-4-48-PSS |  |
44" | 70" | 4,000 | 48" | 1/2" | 67" | 78" | 56-1/2" | 2065 | $13,859.00 | |
| EHLTG-5250-2-36-PSS |  |
52" | 50" | 2,000 | 36" | 1/2" | 75" | 56" | 44-1/2" | 1400 | $11,694.00 | |
| EHLTG-5250-4-36-PSS |  |
52" | 50" | 4,000 | 36" | 1/2" | 75" | 56" | 44-1/2" | 1420 | $11,939.00 | |
| EHLTG-5270-2-48-PSS |  |
52" | 70" | 2,000 | 48" | 1/2" | 75" | 78" | 56-1/2" | 1936 | $13,894.00 | |
| EHLTG-5270-4-48-PSS |  |
52" | 70" | 4,000 | 48" | 1/2" | 75" | 78" | 56-1/2" | 1956 | $14,310.00 | |
Fabrication Authorities International also has the knowledge and experience to provide custom designs and options. Our years of manufacturing expertise will ensure that our manufacturing methods meet your application needs and your quality expectations. This combined industry experience and flexibility will provide the correct ergonomic solution for your unique application.
We are dedicated to providing solutions for all of your access needs. Contact us for a professional consultation with our sales technicians today. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
