Hydraulic Drum Dumpers The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3⁄4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coate. . .
Hydraulic Drum Dumpers
The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3⁄4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.
**All measurements in the table below are represented in inches, pounds, and $USD.
| Hydraulic Drum Dumpers | |||||
| Model # | Rotated Height | Level Height | Capacity | Dump Height | Price |
| Stationary Hydraulic Drum Dumpers | |||||
| HDD-36-7-S | 95-3/4 | 60 | 750 | 36 | $4,087.00 |
| HDD-48-7-S | 116 | 72 | 750 | 48 | $4,307.00 |
| HDD-60-7-S | 136-3/4 | 84 | 750 | 60 | $4,521.00 |
| HDD-72-7-S | 157-1/4 | 95-1/4 | 750 | 72 | $4,927.00 |
| HDD-36-10-S | 95-3/4 | 60 | 1,000 | 36 | $4,213.00 |
| HDD-48-10-S | 116 | 72 | 1,000 | 48 | $4,416.00 |
| HDD-60-10-S | 136-3/4 | 84 | 1,000 | 60 | $4,975.00 |
| HDD-72-10-S | 157-1/4 | 95-1/4 | 1,000 | 72 | $5,021.00 |
| HDD-36-15-S | 95-3/4 | 60 | 1,500 | 36 | $4,732.00 |
| HDD-48-15-S | 116 | 72 | 1,500 | 48 | $4,975.00 |
| HDD-60-15-S | 136-3/4 | 84 | 1,500 | 60 | $5,196.00 |
| HDD-72-15-S | 157-1/4 | 95-1/2 | 1,500 | 72 | $5,395.00 |
| Stationary Hydraulic Drum Dumpers w/Stainless Steel Chutes | |||||
| HDD-36-7-S-SSC | 95-3/4 | 60 | 750 | 36 | $6,301.00 |

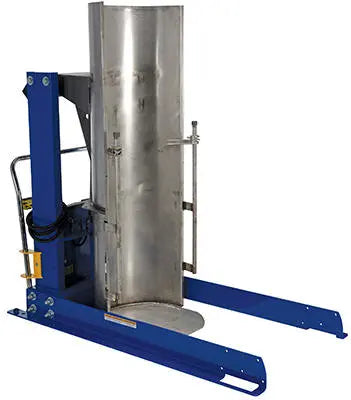

| HDD-48-7-S-SSC | 116 | 72 | 750 | 48 | $6,691.00 |
| HDD-60-7-S-SSC | 136-3/4 | 84 | 750 | 60 | $7,082.00 |
| HDD-72-7-S-SSC | 157-1/4 | 95-1/4 | 750 | 72 | $7,735.00 |
| HDD-36-10-S-SSC | 95-3/4 | 60 | 1,000 | 36 | $6,660.00 |
| HDD-48-10-S-SSC | 116 | 72 | 1,000 | 48 | $7,021.00 |
| HDD-60-10-S-SSC | 136-3/4 | 84 | 1,000 | 60 | $7,396.00 |
| HDD-72-10-S-SSC | 157-1/4 | 95-1/4 | 1,000 | 72 | $7,957.00 |
| HDD-36-15-S-SSC | 95-3/4 | 60 | 1,500 | 36 | $7,500.00 |
| HDD-48-15-S-SSC | 116 | 72 | 1,500 | 48 | $7,939.00 |
| HDD-60-15-S-SSC | 136-3/4 | 84 | 1,500 | 60 | $8.334.00 |
| HDD-72-15-S-SSC | 157-1/4 | 95-1/2 | 1,500 | 72 | $8,867.00 |
| Portable Hydraulic Drum Dumpers | |||||
| Model # | Rotated Height | Level Height | Capacity | Dump Height | Price |
| HDD-36-7-P | 96 | 63-3/4 | 750 | 36 | $4,432.00 |
| HDD-48-7-P | 116-3/4 | 72-1/2 | 750 | 48 | $5,027.00 |
| HDD-60-7-P | 137-1/4 | 84-1/2 | 750 | 60 | $4.869.00 |
| HDD-72-7-P | 157-1/2 | 96 | 750 | 72 | $5,056.00 |
| HDD-36-10-P | 96 | 63-3/4 | 1,000 | 36 | $4,542.00 |
| HDD-48-10-P | 116-3/4 | 72-1/2 | 1,000 | 48 | $4,837.00 |
| HDD-60-10-P | 137-1/4 | 84-1/2 | 1,000 | 60 | $5,187.00 |
| HDD-72-10-P | 157-1/2 | 96 | 1,000 | 72 | $5,270.00 |
| HDD-36-15-P | 96 | 63-3/4 | 1,500 | 36 | $5,065.00 |
| HDD-48-15-P | 116-3/4 | 72-1/2 | 1,500 | 48 | $5,308.00 |
| HDD-60-15-P | 137-1/4 | 84-1/2 | 1,500 | 60 | $5,528.00 |
| HDD-72-15-P | 157-1/2 | 96 | 1,500 | 72 | $5,723.00 |
| Portable Hydraulic Drum Dumpers w/Stainless Steel Chutes | |||||
| HDD-36-7-P-SSC | 96 | 63-3/4 | 750 | 36 | $6,650.00 |
| HDD-48-7-P-SSC | 116-3/4 | 72-1/2 | 750 | 48 | $5,444.00 |
| HDD-60-7-P-SSC | 137-1/4 | 84-1/2 | 750 | 60 | $7,428.00 |
| HDD-72-7-P-SSC | 157-1/2 | 96 | 750 | 72 | $8,078.00 |
| HDD-36-10-P-SSC | 96 | 63-3/4 | 1,000 | 36 | $6,989.00 |
| HDD-48-10-P-SSC | 116-3/4 | 72-1/2 | 1,000 | 48 | $7,348.00 |
| HDD-60-10-P-SSC | 137-1/4 | 84-1/2 | 1,000 | 60 | $7,729.00 |
| HDD-72-10-P-SSC | 157-1/2 | 96 | 1,000 | 72 | $8,285.00 |
| HDD-36-15-P-SSC | 96 | 63-3/4 | 1,500 | 36 | $7,830.00 |
| HDD-48-15-P-SSC | 116-3/4 | 72-1/2 | 1,500 | 48 | $8,271.00 |
| HDD-60-15-P-SSC | 137-1/4 | 84-1/2 | 1,500 | 60 | $8,662.00 |
| HDD-72-15-P-SSC | 157-1/2 | 96 | 1,500 | 72 | $9,195.00 |
Fabrication Authorities International can custom fabricate virtually any type of Material handling Product to fit your needs. Our expertise includes in-house research and development, fully integrated manufacturing and an extensive materials line. With years of design, engineering and manufacturing experience, our dedicated staff can assist you from concept to completion in a timely fashion. All of our products are made in the USA and meet OSHA and ANSI standards.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
