Hydraulic Elevating Carts Our portable and ergonomic Hydraulic Elevating Carts elevating carts minimize worker bending and lifting. Material can be easily loaded onto cart from table, lowered to safe transporting height, and raised to unload at destination. Hydraulic Elevating Carts Foot pump includes a soft-lowering down valve. Move easily on four polyurethane casters, two swivel with brakes and two rigid. The tables can be lifted/lowered with a single speed foot pump, two speed foot pump, or a two speed auto shifter that automatically shifts when table is loaded. All models feature an internal hydraulic velocity fuse in each cylinder. Steel, aluminum, or Steel or stainless. . .
Hydraulic Elevating Carts

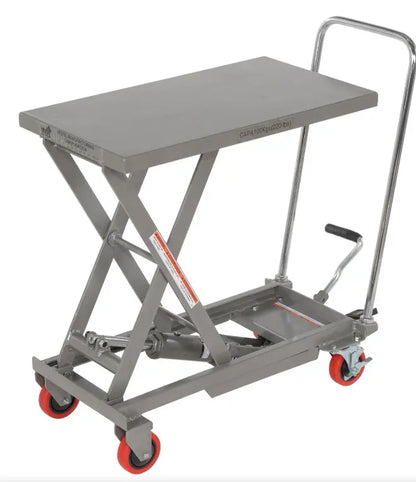

Our portable and ergonomic Hydraulic Elevating Carts elevating carts minimize worker bending and lifting. Material can be easily loaded onto cart from table, lowered to safe transporting height, and raised to unload at destination.
Hydraulic Elevating Carts
Foot pump includes a soft-lowering down valve. Move easily on four polyurethane casters, two swivel with brakes and two rigid. The tables can be lifted/lowered with a single speed foot pump, two speed foot pump, or a two speed auto shifter that automatically shifts when table is loaded. All models feature an internal hydraulic velocity fuse in each cylinder. Steel, aluminum, or Steel or stainless steel construction
**All measurements in the table below are represented in inches, pounds and $USD.
| Hydraulic Elevating Carts | ||||||||
| Model # | Platform Size | Service Range | Caster Size / Material | Capacity | Foot Pump Speed | Price | ||
| W | L | Low | High | |||||

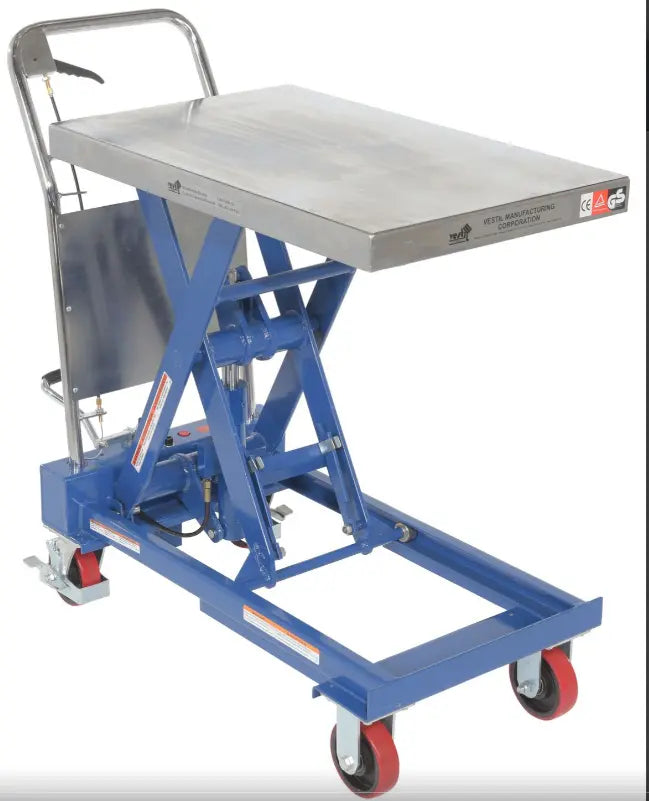

| Single Scissor Steel Carts | ||||||||
| CART-400 | 17-1/2" | 27-1/2" | 8-3/4" | 29" | 4” Poly-on-Poly | 400 | Single | $489.00 |
| CART-750-TS | 19-3/4" | 32" | 15-1/2" | 35-1/2" | 5” Poly-on-Poly | 750 | Two | $797.00 |
| CART-1000-TS | 19-3/4" | 32" | 15-1/2" | 35-1/2" | 5” Poly-on-Poly | 1,000 | Two | $933.00 |
| CART-1000-LD | 31-1/2" | 63" | 15" | 36" | 5” Poly-on-Poly | 1,000 | Single | $1,226.00 |
| CART-1750 | 20" | 39-1/2" | 16" | 40" | 5” Poly-on-Steel | 1,750 | Single | $1,443.00 |
| CART-4000 | 24" | 47" | 15-1/2" | 40" | 6” Poly-on-Steel | 4,000 | Two | $2,334.00 |

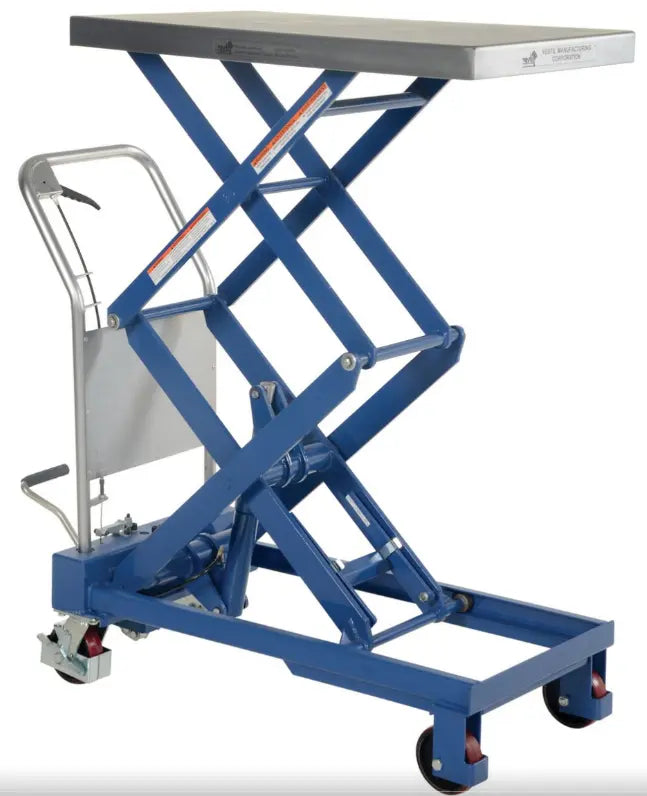

| Double Scissor Steel Carts | ||||||||
| CART-200-D | 17-1/2" | 27-1/2" | 10" | 51" | 4” Poly-on-Poly | 220 | Single | $614.00 |
| CART-800-D-TS | 20" | 35-1/2" | 15-1/2" | 51-7/8" | 5” Poly-on-Poly | 800 | Two | $1,071.00 |

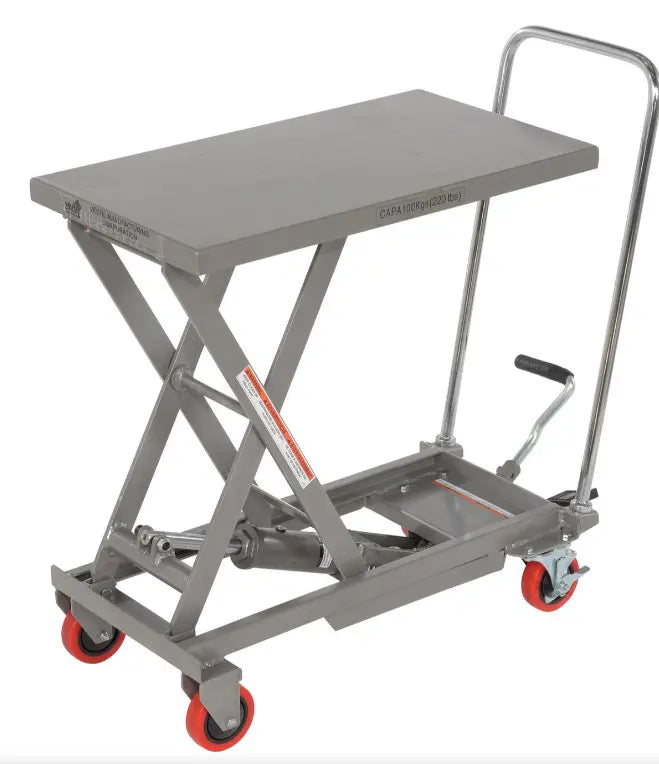

| Aluminum Scissor Cart | ||||||||
| CART-200-ALUM | 15-3/4" | 27-1/2" | 8-1/2" | 29" | 4” Poly-on-Poly | 220 | Single | $1,041.00 |
| OPTIONS | ||||||||
| Model # | Options for CART-2000, CART-2000-WD & CART-DS-1000-M Only | Price | ||||||
| RECIPR-CART | Reciprocating Air/Oil, Carts, 80 PSI & 20 SCFM | $511.00 | ||||||
Fabrication Authorities International also has the knowledge and experience to provide custom designs and options. Our years of manufacturing expertise will ensure that our manufacturing methods meet your application needs and your quality expectations. This combined industry experience and flexibility will provide the correct ergonomic solution for your unique application.
We are dedicated to providing solutions for all of your access needs. Contact us for a professional consultation with our sales technicians today. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
