Industrial Rolling Ladder Our Industrial Rolling Ladders are a great solution to access multiple vertical heights. Manufactured from high-grade steel, these ladders were built to withstand the tough environments of the industrial arena. Equipped with heavy duty casters, they may be easily transported to multiple working areas. Features:  • 450 lbs capacity  • Two tread options available   • Meets or exceeds all OSHA & ANSI standards  • Top step is 9-1/2"D  • Steps are 7"D and available in 16", 24", or 30" widths.  • Deeper platform available!  • KD models incorporate a steel sleeve & pin joint secured by a setscrew with nyloc patc. . .

***Please be aware that all prices do NOT include freight.***

We have had to disable our online checkout feature because most of our products are too large to automatically calculate the freight and need to be run manually. Please contact us via phone at 877-324-9990 or email us at sales@industrial-platforms.com with your ship to zip code for a complete quote including your freight cost.

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Industrial Rolling Ladder

Our Industrial Rolling Ladders are a great solution to access multiple vertical heights. Manufactured from high-grade steel, these ladders were built to withstand the tough environments of the industrial arena. Equipped with heavy duty casters, they may be easily transported to multiple working areas.

Features:

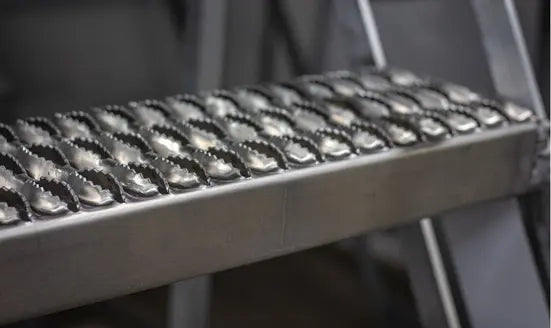

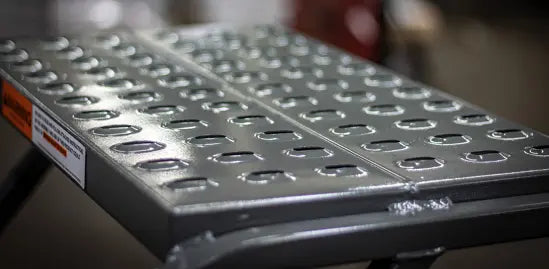

 • 450 lbs capacity  • Two tread options available
 • Meets or exceeds all OSHA & ANSI standards  • Top step is 9-1/2"D
 • Steps are 7"D and available in 16", 24", or 30" widths.  • Deeper platform available!
 • KD models incorporate a steel sleeve & pin joint secured by a setscrew with nyloc patch
 • Models with one-to-seven steps feature spring-loaded 3" casters that compress to engage rubber-tipped legs.
 • Models with eight or more steps feature 4" casters and our exclusive Ezy-Lock system, plants legs firmly to floor when pressure applied.



Our Industrial Rolling Ladders provide critical fall protection, ensuring worker safety and meet or exceed all standards and regulations. This particular model is available in 2 versions: a Knocked Down (KD) model that saves your facility on freight, and an All-Welded, Set-Up (SU) model.

**All measurements in the tables below are represented in inches, pounds and $USD.

Industrial Rolling Ladder - Ships Knocked Down
# Steps Top Step
Height		 Overall Dimensions  Weight EZY Tread Grip Strut Tread
W L H  Model #  Price  Model #  Price
16"W Treads
5 50 21 40 80 64 B05020HKD $640.00 G05020HKD $777.00
6 60 23 44  90  80 B06020HKD $842.00 G06020HKD $1,004.00
7 70 24 52 100 89 B07020HKD $931.00 G07020HKD $1,099.00
24"W Treads
5 50 29 40   80 76 B05026HKD $759.00 G05026HKD $902.00
6 60 29 47   90 91 B06026HKD $941.00 G06026HKD $1,084.00
7 70 29 54 100 104 B07026HKD  $999.00 G07026HKD  $1,218.00
8 80 33 56  112 154 B08026HKD $1,175.00 G08026HKD $1,392.00
9 90 33 63 122  179 B09026HKD $1,253.00 G09026HKD $1,496.00
10 100 33 69 132 207 B10026HKD $1,387.00 G10026HKD $1,663.00
11 110 33 75  142 228 B11026HKD $1,496.00 G11026HKD $1,747.00

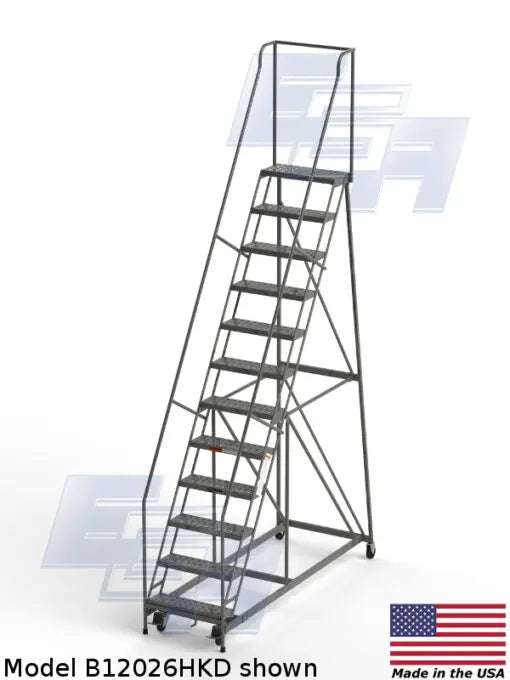

12 120 33 82 157  241 B12026HKD $1,622.00 G12026HKD $1,918.00
13 130 34 88  167 259 B13026HKD $2,024.00 G13026HKD $2,480.00
14 140 37 94  177  299 B14026HKD $2,245.00 G14026HKD $2,681.00
15 150 39 104 187 345 B15026HKD $2,369.00 G15026HKD $2,826.00
16 160 41 113 197  394 B16026HKD $2,431.00 G16026HKD $3,032.00
30"W Treads
# Steps Top Step
Height		 ‌Overall Dimensions  ‌Weight ‌EZY Tread ‌Grip Strut Tread
W L H  Model #  Price  Model #  Price
5 50 33 40  80  84 B05032HKD $1,009.00 G05032HKD $1,169.00
6 60 33 47 90  102 B06032HKD $1,154.00 G06032HKD $1,329.00
7 70 33 54  100  116 B07032HKD $1,260.00 G07032HKD $1,477.00
8 80 38 56 112 174 B08032HKD $1,407.00 G08032HKD $1,622.00
9 90 38 63  112  193 B09032HKD $1,482.00 G09032HKD $1,734.00
10 100 38 69  132 222 B10032HKD $1,669.00 G10032HKD $1,960.00
11 110 38 75 142 215 B11032HKD $1,824.00 G11032HKD $2,114.00
12 120 38 82  157 287 B12032HKD $1,993.00 G12032HKD $2,328.00
13 130 39 88 167 298 B13032HKD $2,332.00  G13032HKD $2,746.00
14 140 39 94  177  311 B14032HKD $2,651.00  G14032HKD $3,164.00
15 150 39 104 187  359 B15032HKD $2,963.00 G15032HKD $3,519.00

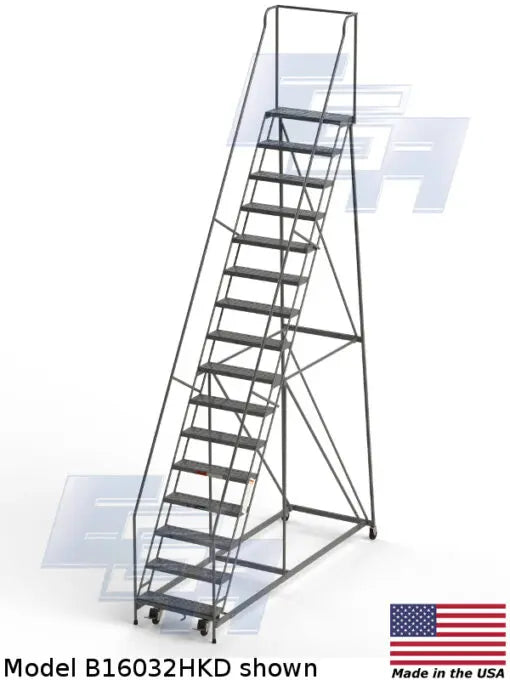

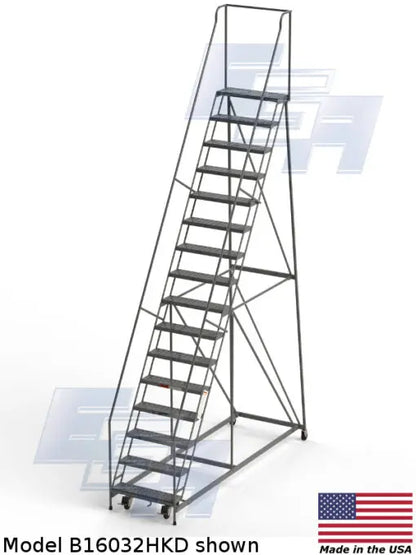

16 160 41 113  197  406 B16032HKD  $3,247.00  G16032HKD $3,874.00



Industrial Rolling Ladder - Ships All Welded
# Steps  Top Step
Height 		  Overall Dimensions   Weight EZY Tread   Grip Strut Tread
W L H Model # Price Model # Price
16"W Treads
1 12 20 16  12  13 B1220SU* $235.00 G1220SU* $282.00
2 20 21 19  20  22  B02020SU* $295.00 G02020SU* $358.00
2 20 21 19 44  29 B02020HSU $355.00 G02020HSU $430.00
3 30 21  27   30 33 B03020SU* $368.00 G03020SU* $454.00
3 30 21 28  54  41  B03020HSU $412.00 G03020HSU $499.00
4 40  21 36  40  42  B04020SU* $419.00 G04020SU*  $523.00
4 40 21 33  70  51 B04020HSU $486.00 G04020HSU $590.00
5 50  21 40  80 64 B05020HSU $567.00 G05020HSU $686.00
6 60 23 44 90 80 B06020HSU $755.00 G06020HSU $902.00
7 70 24 52 100 89 B07020HSU $837.00 G07020HSU $985.00
24"W Treads
1 12 27  16  12 16 B1226SU* $246.00 G1226SU* $302.00
2 20 27 19  20 26 B02026SU* $328.00 G02026SU* $390.00
2 20  27 19  44 34 B02026HSU $380.00 G02026HSU $471.00
3 30 29 27  30 39 B03026SU* $404.00 G03026SU* $486.00
3 30 29  27 54  48  B03026HSU $460.00 G03026HSU $559.00
4 40 29 36  40 51  B04026SU*  $482.00 G04026SU* $585.00
4 40 29 33  70 64 B04026HSU $533.00 G04026HSU $709.00
5 50 29 40 80 76 B05026HSU $671.00  G05026HSU $854.00
6 60 29 47  90   82 B06026HSU $849.00 G06026HSU $1,030.00

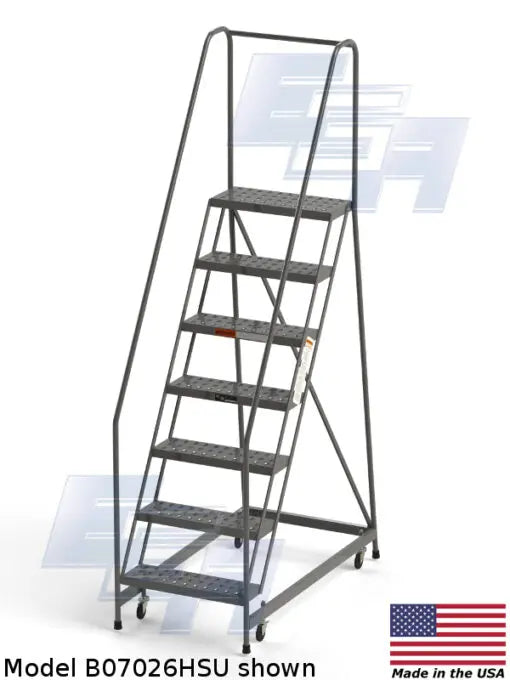

7 70 29 54 100  104 B07026HSU $919.00 G07026HSU $1,119.00
8 80 33 56 112 154 B08026HSU $1,061.00  G08026HSU $1,321.00
9 90 33 63 122 179 B09026HSU $1,208.00 G09026HSU $1,416.00
10 100  33 69 132 207 B10026HSU $1,321.00 G10026HSU $1,573.00
11 110 33 75 142 228 B11026HSU $1,386.00 G11026HSU $1,619.00
12 120 33 82  157 241  B12026HSU $1,505.00 G12026HSU  $1,890.00
30"W Treads
# Steps  Top Step
Height 		 ‌ Overall Dimensions   ‌Weight ‌EZY Tread   ‌Grip Strut Tread
W L H Model # Price Model # Price
4 40 33 36  40 58 B04032SU* $723.00 G04032SU* $832.00
4 40 33 33 70  73 B04032HSU $868.00 G04032HSU $1,023.00
5 50  33 40  80 84 B05032HSU $957.00 G05032HSU $1,109.00
6 60 33 47  90  102 B06032HSU $1,099.00 G06032HSU $1,260.00
7 70  33 54 100 116 B07032HSU $1,197.00 G07032HSU $1,399.00
8 80 38 56 112 174 B08032HSU $1,340.00 G08032HSU $1,539.00
9 90 38 63  122  193  B09032HSU $1,403.00  G09032HSU $1,651.00
10 100 38 69 132  222 B10032HSU $1,824.00 G10032HSU $1,867.00
11 110 38 69 132  222 B11032HSU $1,728.00 G11032HSU $2,011.00
12 120  38 75  142  245 B12032HSU $1,977.00 G12032HSU $2,209.00
*Represents models featuring NO handrails



Industrial ladders and work platforms are our specialty. We offer hundreds to choose from, with a vast range of materials, heights and styles. Here at Fabrication Authorities International we are dedicated to developing the most innovative industrial access solutions through research, engineering, manufacturing, and marketing of the finest materials available. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.



Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780

Email us at sales@industrial-platforms.com



If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!

For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
