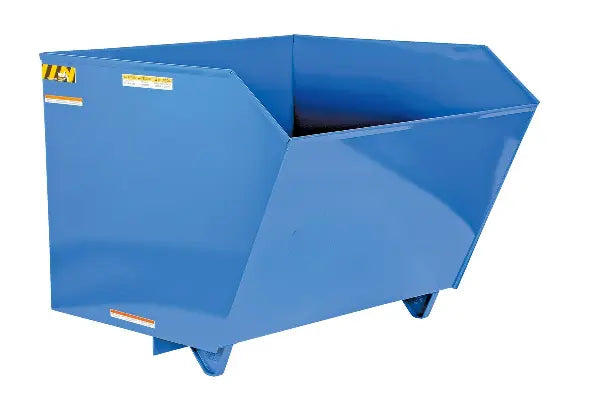

Low Profile Steel Self-Dumping Hopper
Low Profile Steel Self-Dumping Hopper
Low Profile 90 Degree Self-Dumping Hopper Our Low Profile 90 Degree Steel Self-Dumping Hoppers feature steel construction, are manufactured for industrial use, and are great for those smaller hopper use jobs only needing to hold a lower volume of material for movement and dumping. Low Profile 90 Degree Steel Self-Dumping Hopper Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. A safety restraint is provid. . .
Low Profile 90 Degree Self-Dumping Hopper
Our Low Profile 90 Degree Steel Self-Dumping Hoppers feature steel construction, are manufactured for industrial use, and are great for those smaller hopper use jobs only needing to hold a lower volume of material for movement and dumping.
Low Profile 90 Degree Steel Self-Dumping Hopper

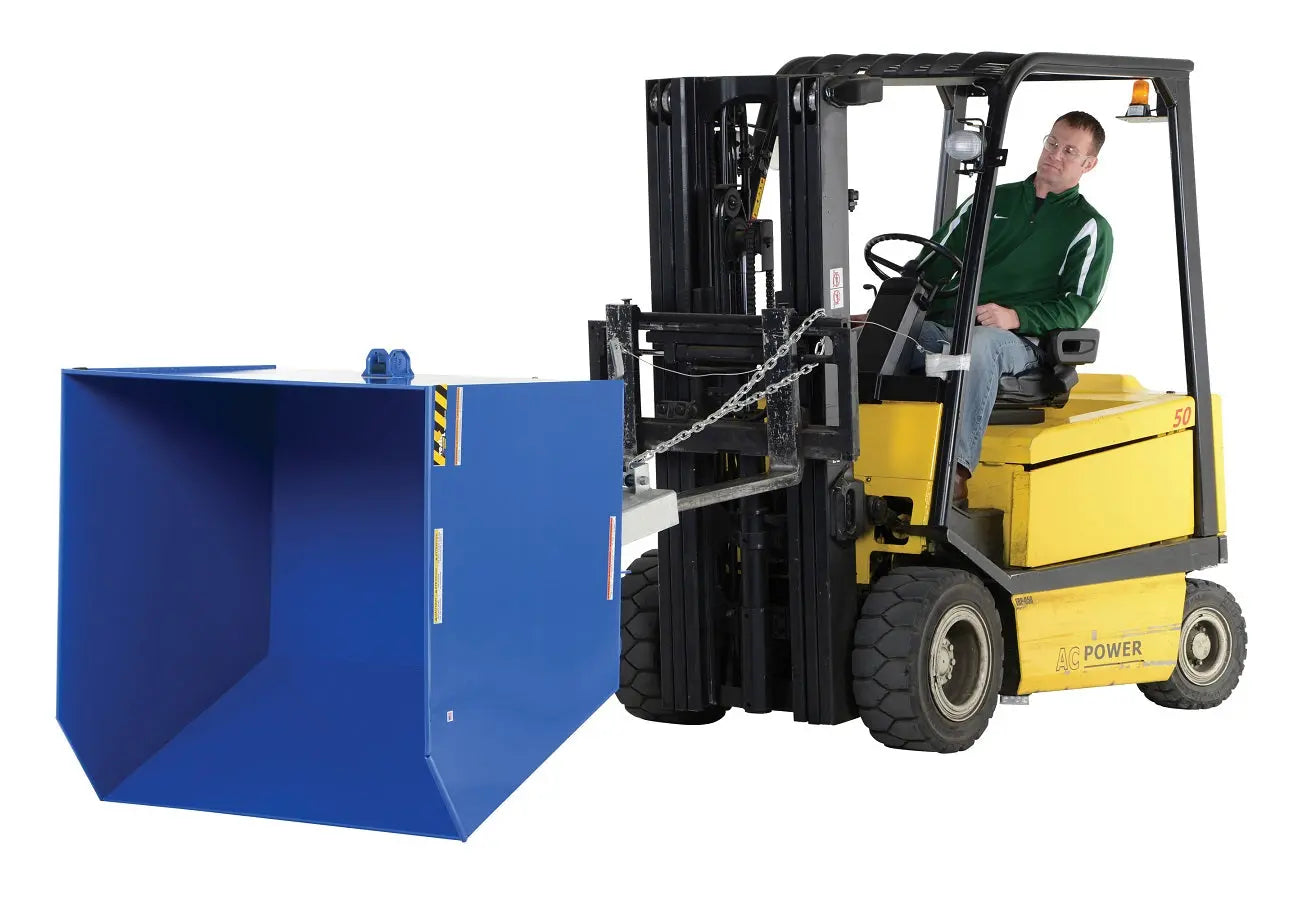

Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. A safety restraint is provided to secure the hopper to the fork truck. Self-dumping hoppers are great for storing, transporting and dumping scrap and bulk material. Self-dumping hoppers are designed for industrial, commercial, institutional and other rugged applications. Self-dumping hoppers allow for safe and easy loading, transporting and dumping of material.
**All measurements in the table below are represented in inches, pounds and $USD.
| Low Profile 90º Self-Dumping Hoppers | |||||||||
| Model # | Vol. Cubic Yard | Capacity | Overall Size | Fork Center Pockets | Weight | Price | |||
| W | D | H | |||||||
| Light Duty • 12 Gauge Steel | |||||||||
| H-25-LD | 1/4 | 2000 | 27 | 46-1/8 | 21-3/8 | 11-5/8 | 171 | $810.00 | |
| H-50-LD | 1/2 | 2000 | 27 | 51-3/16 | 28-1/8 | 11-5/8 | 210 | $924.00 | |
| H-100-LD | 1 | 2000 | 51 | 51-3/16 | 28-1/8 | 21-5/8 | 311 | $1,105.00 | |
| H-150-LD | 1-1/2 | 2000 | 51 | 56-1/2 | 38-5/8 | 21-5/8 | 370 | $1,261.00 | |
| Medium Duty • 10 Gauge Steel | |||||||||
| H-25-MD | 1/4 | 4000 | 27 | 46-1/8 | 21-3/8 | 11-5/8 | 193 | $845.00 | |
| H-50-MD | 1/2 | 4000 | 27 | 51-3/16 | 28-3/16 | 11-5/8 | 243 | $969.00 | |
| H-100-MD | 1 | 4000 | 51 | 51-3/16 | 28-1/8 | 21-5/8 | 361 | $1,130.00 | |
| H-150-MD | 1-1/2 | 4000 | 51 | 56-9/16 | 38-5/8 | 21-5/8 | 436 | $1,398.00 | |
| Heavy Duty • 8 Gauge Steel | |||||||||
| H-25-HD | 1/4 | 6000 | 27 | 46-3/16 | 21-3/8 | 11-5/8 | 215 | $909.00 | |
| H-50-HD | 1/2 | 6000 | 27 | 51-1/4 | 28-3/16 | 11-5/8 | 277 | $1,039.00 | |
| H-100-HD | 1 | 6000 | 51 | 51-1/4 | 28-3/16 | 21-5/8 | 410 | $1,286.00 | |
| H-150-HD | 1-1/2 | 6000 | 51 | 56-9/16 | 38-11/16 | 21-5/8 | 502 | $1,622.00 | |
| OPTIONS | |||||||||
| Model | Description | Weight | Price | ||||||
| H-DAMP-4 | More controlled dumping process. (4,000 lb. units) | 30 | contact for pricing | ||||||
| H-DAMP-6 | More controlled dumping process. (6,000 lb. units) | 4 | contact for pricing | ||||||
| LUG | (4) lifting lugs (welded) one on each corner | 23 | $390.00 | ||||||
| LEKP | Factory installed welded leak proof for Hoppers | 5 | $91.00 | ||||||
Fabrication Authorities International offers a variety of hoppers to suit your needs. Self-dumping hoppers are designed for industrial, commercial, institutional and other rugged applications. Our self dumping hoppers or dumpers attach to forklifts. We also offer Portable Steel Hoppers, Steel Chute Hoppers, Open Ended Steel Dumping Hoppers, and many more to suit your facility’s needs. We can custom design a Hopper for you! Contact us for a professional consultation with our sales technicians today.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
