Mini Scissor Lifts Our Mini Scissor Lifts are ideal for store and stock rooms. Holds up to 1 person. Easy to operate and feature emergency stop button and lowering system. Features 22" to 36" extendable cantilever platform (depending on Model), minimizes the strains from pushing lifts, providing additional access to machinery and equipment. Also, drivable at full heights and has a battery power source. The working platform is perfect for one man jobs in high, hard to reach areas. We offer different model types to suit your needs, Pushable and Drivable, with a max working height of 32'. The maintenance lift features a 500 lbs. capacity. Powder coated, heavy duty steel construction. Pla. . .
Mini Scissor Lifts
Our Mini Scissor Lifts are ideal for store and stock rooms. Holds up to 1 person. Easy to operate and feature emergency stop button and lowering system. Features 22" to 36" extendable cantilever platform (depending on Model), minimizes the strains from pushing lifts, providing additional access to machinery and equipment. Also, drivable at full heights and has a battery power source. The working platform is perfect for one man jobs in high, hard to reach areas.
We offer different model types to suit your needs, Pushable and Drivable, with a max working height of 32'. The maintenance lift features a 500 lbs. capacity. Powder coated, heavy duty steel construction. Platform features top and mid rail guards and features a lockable safety door for further worker security. Platform includes toe guards to prevent slips and falls.
space
Pushable Mini Scissor Lift Features
- 500lb capacity
- Manually propelled
- Working height up to 19'
- Max raised platform height of 9'10" to 12'9"
- 28" x 50" platforms
- Easy to roll on 6" casters
- 12V DC powered
- Power init stored in a lockable slide out drawer
- Battery charge indicator included
- E-Stop button
- Emergency lowering system
- Forklift pockets
- Meets applicable OSHA and ANSI standards
- Designed for indoor use
space
space
Drivable Mini Scissor Lift Features
- 500lb capacity
- DSL-26(W) - 1,000lb capacity
- Platform slide out extension deck
- Drivable at full heights
- Self-locking safety gate
- E-Stop button
- Emergency lowering system
- Forklift pockets
- Powder coat finish
- DMSL-10 and DMSL-12
- Meets applicable OSHA and ANSI standards
space
space
***All measurements in the table below are represented in inches, feet, pounds and $USD.
| Mini Scissor Lifts | ||||||||||
| Model # | Working Height | Platform Height | Platform Outter dim. W x L | Platform Extensions | Base (W x L) | Overall Height | Wt. | Power-Batteries | Price | |
| Max | Min | |||||||||
| Pushable | ||||||||||

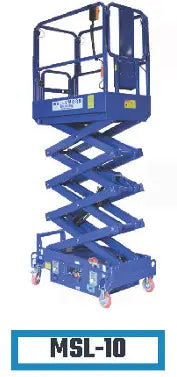

| MSL-10 | 16' | 9'10" | 26" | 28" x 50" | 22" | 30" x 57" | 77" | 1,200 | 12V DC | $10,875.00 |

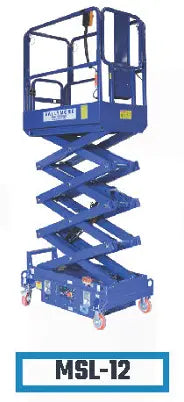

| MSL-12 | 19' | 12'9" | 26" | 28" x 50" | 22" | 30" x 57" | 77" | 1,260 | 12V DC | $13,050.00 |
| Drivable | ||||||||||

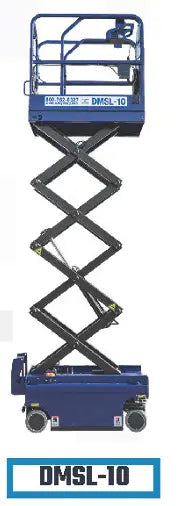

| DMSL-10 | 16' | 10' | 36' | 28" x 50" | 22" | 30" x 57" | 80" | 1,825 | 2-12V | $21,750.00 |

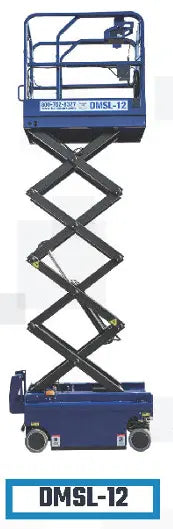

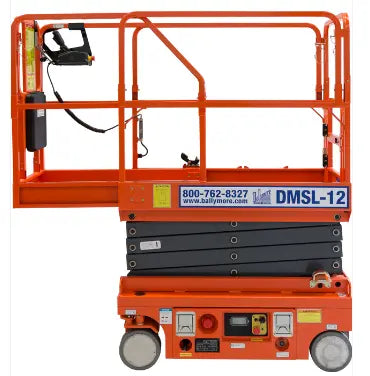

| DMSL-12 | 18' | 12' | 36' | 28" x 50" | 22" | 30" x 57" | 80" | 1,900 | 2-12V | $24,390.00 |

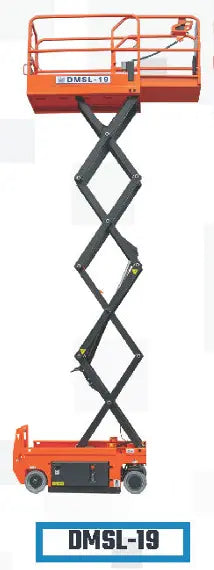

| DMSL-19 | 25' | 19' | 42' | 29" x 66" | 36" | 30" x 74" | 86" | 3,164 | 4-6V | $26,115.00 |

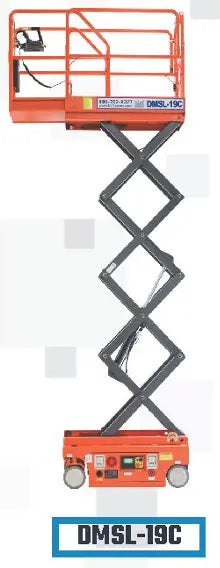

| DMSL-19c* | 25' | 19' | 42' | 28" x 53" | 24" | 32" x 60" | 83" | 2,733 | 2-12V | $28,828.00 |
| DMSL-26 | 32' | 26' | 48' | 32" x 90" | 36" | 32" x 98" | 92" | 4,781 | 4-6V | $32,265.00 |
| DMSL-26(W) | 32' | 26' | 48' | 44" x 90" | 36" | 46" x 98" | 92" | 4,884 | 4-6V | $38,195.00 |
| * Indicates compact model (W) Indicates extra wide base and platform w/1000lb capacity | ||||||||||
Fabrication Authorities International is dedicated to providing solutions for all of your vertical access needs. Contact us for a professional consultation with our sales technicians today. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
