Portable Cantilever Hoists
Portable Cantilever Hoists

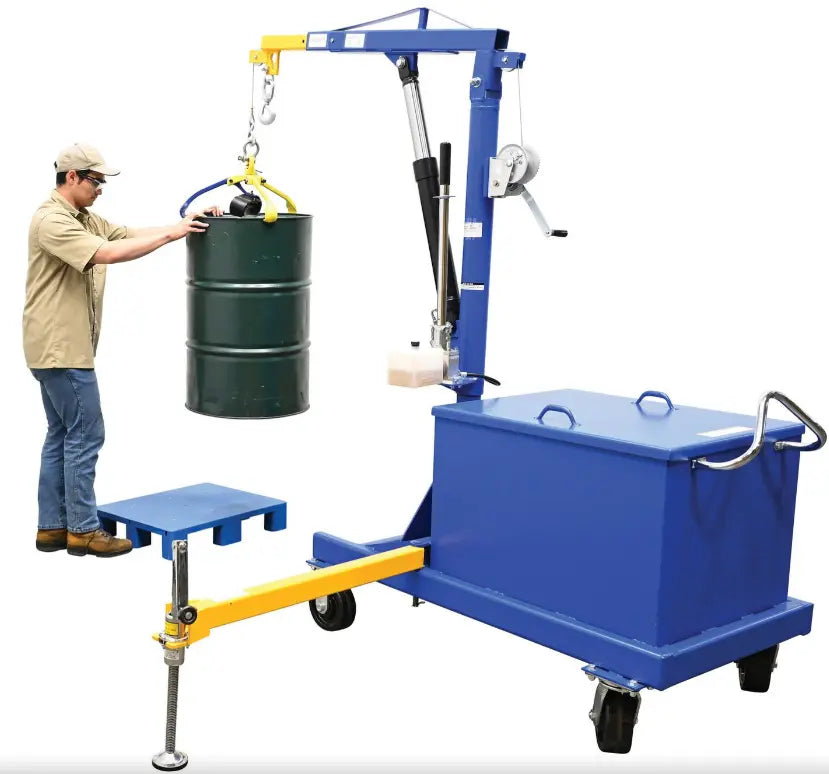

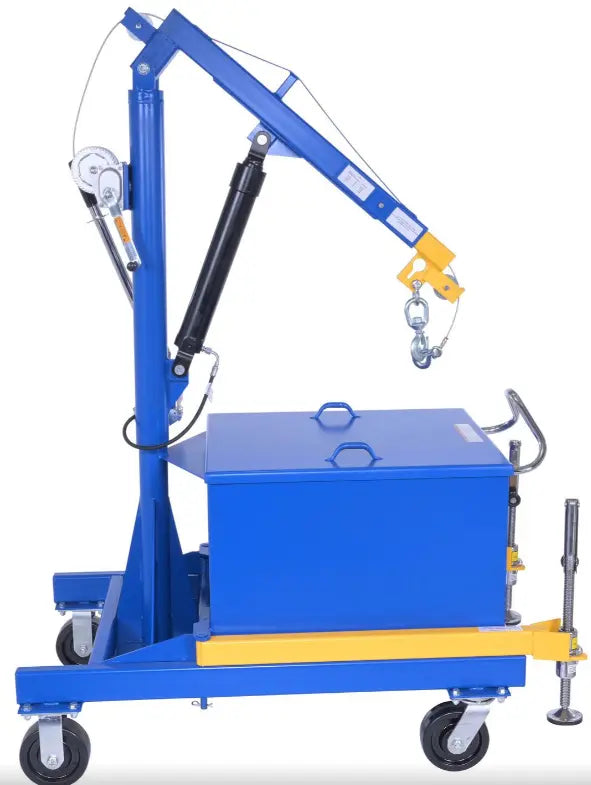

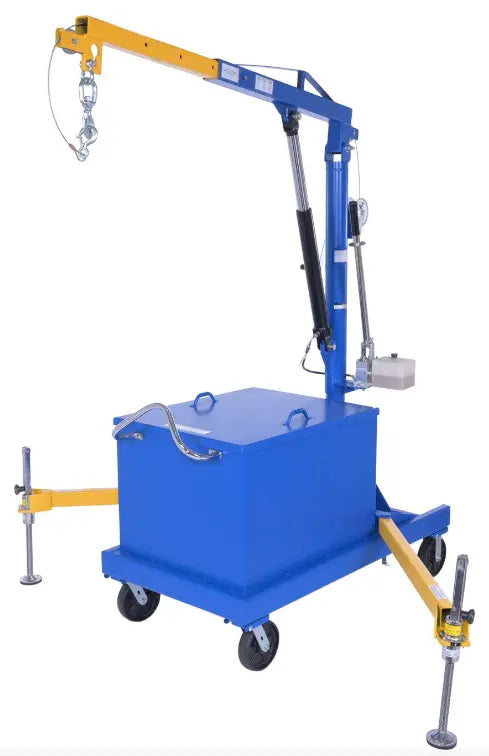

Portable Cantilever Hoists Our Portable Cantilever Hoists are ideal for a wide variety of industrial heavy-lifting applications. Crane hoist features outriggers for increased stability and a swivel crane for side loading. The portable floor crane hoist also has a double-acting manual hydraulic hand pump and adjustable swing outriggers with leveling jacks to stabilize the portable hoist from side to front. This portable floor hoist is available with or without counterbalancing ballast. Swivel Crane for Side Loading Controlled Lowering 40" Outriggers to Increase Stability Counter-balanced/Cantilever Design Adjustable Extendable Boom Swivels 360º Double Acting Hydraulic Han. . .
Portable Cantilever Hoists
Our Portable Cantilever Hoists are ideal for a wide variety of industrial heavy-lifting applications. Crane hoist features outriggers for increased stability and a swivel crane for side loading.
The portable floor crane hoist also has a double-acting manual hydraulic hand pump and adjustable swing outriggers with leveling jacks to stabilize the portable hoist from side to front. This portable floor hoist is available with or without counterbalancing ballast.
- Swivel Crane for Side Loading
- Controlled Lowering
- 40" Outriggers to Increase Stability
- Counter-balanced/Cantilever Design
- Adjustable Extendable Boom Swivels 360º
- Double Acting Hydraulic Hand Pump
- Capacities are 2,000 or 4,000 lbs
- 8" x 2" Phenolic Casters for Portability
- Durable Steel Construction
- Optional Ballast Available
| Capacities at Arm Length: | ||
| Arm Length (inches) | Model P-JIB-2 ( Lbs ) | Model P-JIB-4 ( Lbs ) |
| 24-3/8 | 2,000 | 4,000 |
| 31-3/8 | 1,600 | 3,200 |
| 38-3/8 | 1,300 | 2,600 |
| 45-3/8 | 1,100 | 2,200 |
**All measurements in table are represented in inches and pounds.
| Portable Cantilever Hoist | |||||||
| Model # | Overall Size | Capacity | Phenolic Casters | Weight | Price | ||
| W | L | H | |||||
| P-JIB-2 | 35-11/16 | 113-3/8 | 89 | 2,000 | 8" x 2" | 939 | $5,190.00 |
| P-JIB-4 | 35-11/16 | 113-3/8 | 89 | 4,000 | 8" x 2" | 950 | $5,727.00 |
| Options | |||||||
| P-JIB-BALL-2 | Ballast 2,000 lbs capacity | 1,850 | $1,080.00 | ||||
| P-JIB-BALL-4 | Ballast 4,00 lbs. capacity | 3,650 | $1,670.00 | ||||
Our focus is on the equipment, systems and related controls used to achieve increased productivity. Our material handling systems range from simple pallet rack and shelving projects to industrial hoppers. Let us help you to have a more productive, environmental-friendly facility. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
