Portable Steel Crossover Ladders
Portable Steel Crossover Ladders
Portable Steel Crossover Ladders Our Portable Steel Crossover Ladders are easily moved from place to place, and the non-marring rubber tipped legs ensure the product stays put for maximum safety. Compliant with all applicable OSHA1910.29 and ANSI A14.7 standards. Portable Steel Crossover Ladders These rugged one-piece all-welded portable steel crossovers are constructed of 1" diameter steel tubing with 24" wide treads with an option of expanded or serrated tread types. Standard gray powder coat finish. Several choices in sizes to choose from. Features: * 8 welds per step for durability * Serrated or Expanded tread * Non-marring rubber tips on le. . .
Portable Steel Crossover Ladders
Our Portable Steel Crossover Ladders are easily moved from place to place, and the non-marring rubber tipped legs ensure the product stays put for maximum safety. Compliant with all applicable OSHA1910.29 and ANSI A14.7 standards.
Portable Steel Crossover Ladders

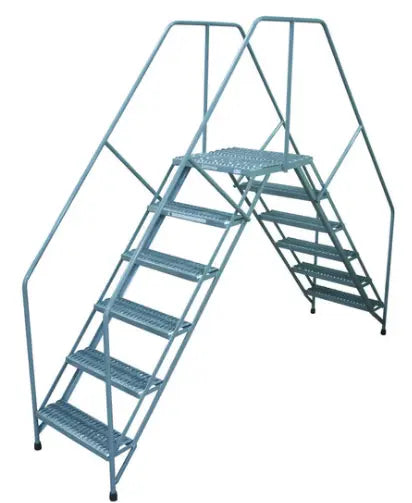

These rugged one-piece all-welded portable steel crossovers are constructed of 1" diameter steel tubing with 24" wide treads with an option of expanded or serrated tread types. Standard gray powder coat finish. Several choices in sizes to choose from.
Features:
| * 8 welds per step for durability | * Serrated or Expanded tread |
| * Non-marring rubber tips on legs | * 1″ dia. carbon steel tubing |
| * OSHA and ANSI compliant design | * Choice of 24"W treads |
| * Gray powder coat finish is standard | * All welded construction |
| * 50° Climb angle allows forward descent | * 350 lbs. capacity |
Tread Options:
Expanded (A1) and Serrated (A3)
**All measurements in the table below are represented in inches, pounds, and $USD.
| Portable Steel Crossover Ladders | ||||||||||
| # Steps | Height | Clearance | Base Size | Expanded Tread | Serrated Tread | |||||
| Platform | Overall | H | W | W | L | Model # | Price | Model # | Price | |
| 24"L Platform | ||||||||||
| 3 | 30 | 60 | 28 | 10 | 30 | 58 | 3PC24A1 | $972.00 | 3PC24A3 | $1,374.00 |
| 4 | 40 | 70 | 38 | 10 | 30 | 76 | 4PC24A1 | $1,189.00 | 4PC24A3 | $1,730.00 |
| 5 | 50 | 80 | 48 | 10 | 30 | 93 | 5PC24A1 | $1,447.00 | 5PC24A3 | $2,141.00 |
| 6 | 60 | 90 | 58 | 10 | 30 | 110 | 6PC24A1 | $1,686.00 | 5PC24A3 | $2,528.00 |
| 36"L Platform | ||||||||||
| 3 | 30 | 60 | 28 | 22 | 30 | 69 | 3PC36A1 | $1,092.00 | 3PC36A3 | $1,666.00 |
| 4 | 40 | 70 | 38 | 22 | 30 | 87 | 4PC36A1 | $1,316.00 | 4PC36A3 | $2,024.00 |
| 5 | 50 | 80 | 48 | 22 | 30 | 104 | 5PC36A1 | $1,576.00 | 5PC36A3 | $2,440.00 |
| 6 | 60 | 90 | 58 | 22 | 30 | 121 | 6PC36A1 | $1,817.00 | 6PC36A3 | $2,830.00 |
| 48"L Platform | ||||||||||
| 3 | 30 | 60 | 28 | 32 | 30 | 82 | 3PC48A1 | $1,324.00 | 3PC48A3 | $1,844.00 |
| 4 | 40 | 70 | 38 | 32 | 30 | 100 | 4PC48A1 | $1,536.00 | 4PC48A3 | $2,141.00 |
| 5 | 50 | 80 | 48 | 32 | 30 | 116 | 5PC48A1 | $1,800.00 | 5PC48A3 | $2,615.00 |
| 6 | 60 | 90 | 58 | 32 | 30 | 134 | 6PC48A1 | $2,053.00 | 6PC48A3 | $3,024.00 |
| 60"L Platform | ||||||||||
| 5 | 50 | 80 | 48 | 46 | 30 | 128 | 5PC60A1 | $2,016.00 | 5PC60A3 | $2,912.00 |
| 6 | 60 | 90 | 58 | 46 | 30 | 146 | 6PC60A1 | $2,283.00 | 6PC60A3 | $3,301.00 |
Fabrication Authorities International can custom fabricate virtually any type of Cross Over Ladder. Our expertise includes in-house research and development, fully integrated manufacturing and an extensive materials line. With years of design, engineering and manufacturing experience, our dedicated staff can assist you from concept to completion in a timely fashion. All of our ladders are made in the USA and meet OSHA and ANSI 3124 standards.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
