Series 90 Self Dumping Hoppers

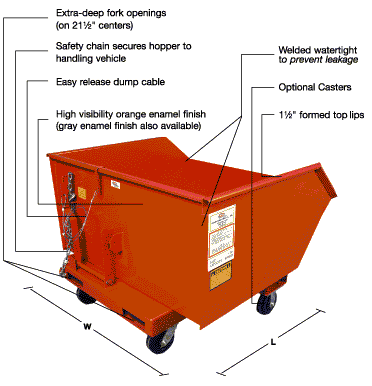

Our Series 90 Self Dumping Hoppers are welded watertight and feature a full 90° angle for 100% discharge of wet, viscous materials.
Features:
| • Extra-deep fork openings on 21½" centers | • Welded watertight to prevent leakage |
| • Safety chain secures hopper to vehicle | • Easy release dump cable |
| • High visibility orange enamel paint | • 1-1/2" H formed top lip |
These hoppers were designed for forklift handling. Easy dump release: while seated on forklift, operator simply pulls the dump cable to release the spring-loaded latch for a full 90° tilt. Hopper returns to an upright position when lowered to the ground. A positive locking mechanism prevents accidental dumping while a safety chain secures the hopper to the forklift.
Available in orange or gray enamel. 3 Models to choose from: Extra Heavy Duty, Heavy Duty, and Medium Duty Hoppers.
**All measurements in the table below (unless otherwise noted) are represented in inches, pounds and $USD.
| Series 90 Self Dumping Hoppers | |||||||||
| Model # | Size (Cu Yrds) | Capacity | Dimensions | Fork Openings | Weight | Price | |||
| W | L | H | H | W | |||||
| Extra Heavy Duty Hoppers * 7 ga. Steel * ¼" Steel Base | |||||||||
| SDHX025-90 | 1/4 | 6,000 | 32 | 55 | 22 | 2 | 7 | 337 | $1,095.00 |
| SDHX050-90 | 1/2 | 6,000 | 32 | 55 | 29 | 2 | 7 | 375 | $1,239.00 |
| SDHX100-90 | 1 | 6,000 | 51 | 55 | 29 | 2 | 7 | 488 | $1,464.00 |
| SDHX150-90 | 1-1/2 | 6,000 | 51 | 55 | 41 | 2 | 7 | 569 | $1,771.00 |
| Heavy Duty Hoppers * 10 ga. Steel * ¼" Steel Base | |||||||||
| SDHH050-90 | 1/2 | 4,000 | 32 | 55 | 29 | 2 | 7 | 322 | $1,095.00 |
| SDHH100-90 | 1 | 4,000 | 51 | 55 | 29 | 2 | 7 | 412 | $1,363.00 |
| SDHH150-90 | 1-1/2 | 4,000 | 51 | 55 | 41 | 2 | 7 | 473 | $1,519.00 |
| Medium Duty Hoppers * 12 ga. Steel * ¼" Steel Base | |||||||||
| SDHM050-90 | 1/2 | 2,000 | 32 | 55 | 29 | 2 | 7 | 286 | $996.00 |
| SDHM100-90 | 1 | 2,000 | 51 | 55 | 29 | 2 | 7 | 359 | $1,146.00 |
| SDHM150-90 | 1-1/2 | 2,000 | 51 | 55 | 41 | 2 | 7 | 408 | $1,338.00 |
| Optional Casters - 2 Swivel/2 Rigid Combination | |||||||||
| Model # | Wheels | Capacity (set of 4) | Weight | Price | |||||
| Size | Composition | ||||||||
| CK620VR-90 | 6 x 2 | Mold-on Rubber | 1,600 | 63 | $175.00 | ||||
| CK625VR-90 | 6 x 2-1/2 | Mold-on Rubber | 2,000 | 81 | $343.00 | ||||
| CK820VR-90 | 8 x 2 | Mold-on Rubber | 2,000 | 77 | $205.00 | ||||
| CK825VR-90 | 8 x 2-1/2 | Mold-on Rubber | 2,700 | 84 | $387.00 | ||||
| CK620SS-90 | 6 x 2 | Steel | 4,000 | 69 | $188.00 | ||||
| CK625SS-90 | 6 x 2-1/2 | Steel | 6,000 | 101 | $331.00 | ||||
| CK820SS-90 | 8 x 2 | Steel | 4,000 | 82 | $223.00 | ||||
| CK825SS-90 | 8 x 2-1/2 | Steel | 6,000 | 103 | $375.00 | ||||
| CK620PH-90 | 6 x 2 | Phenolic | 4,800 | 56 | $160.00 | ||||
| CK625PH-90 | 6 x 2-1/2 | Phenolic | 6,000 | 70 | $300.00 | ||||
| CK820PH-90 | 8 x 2 | Phenolic | 4,000 | 65 | $187.00 | ||||
| CK825PH-90 | 8 x 2-1/2 | Phenolic | 6,000 | 85 | $329.00 | ||||
| CK620PU-90 | 6 x 2 | Polyurethane | 4,000 | 66 | $199.00 | ||||
| CK625PU-90 | 6 x 2-1/2 | Polyurethane | 4,400 | 86 | $339.00 | ||||
| CK820PU-90 | 8 x 2 | Polyurethane | 4,000 | 84 | $234.00 | ||||
| CK825PU-90 | 8 x 2-1/2 | Polyurethane | 5,300 | 89 | $406.00 | ||||
Hoppers are shipped with casters bolted to the base; Casters may be field installed.
Our Hoppers make material handling and dumping of bulk materials and waste easy. Hoppers may be used in construction, warehousing, agriculture and other material handling industries to process, dispose of or relocate material. The versatility, dependability, and variety of hoppers and dumpers make them an essential component for any worksite dealing with large or unmanageable material.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
