Truck Jib Crane
Proper material handling is essential to moving your products and goods. Protect your investments with high-quality material handling equipment from Fabrication Authorities International. Our material handling equipment is used to increase output, control costs, and maximize productivity.

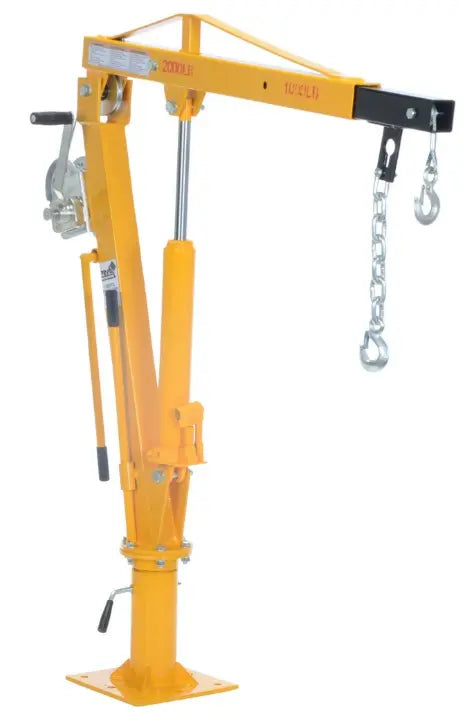

This Winch Operated Truck Jib Crane is Installed in your pick-up truck bed and will help lift loads up to 1,000 pounds.

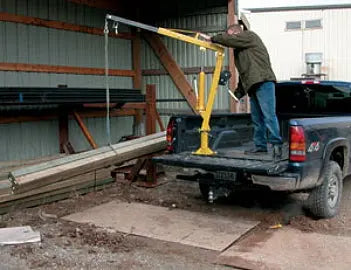

Lift items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Three finishes to choose from.

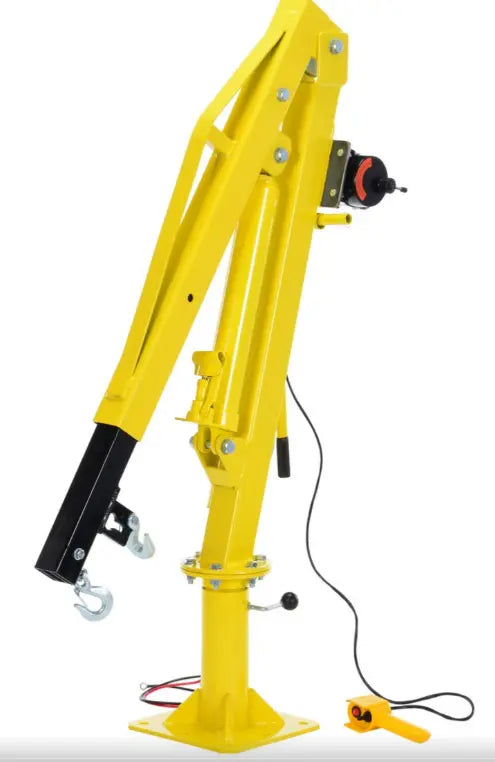

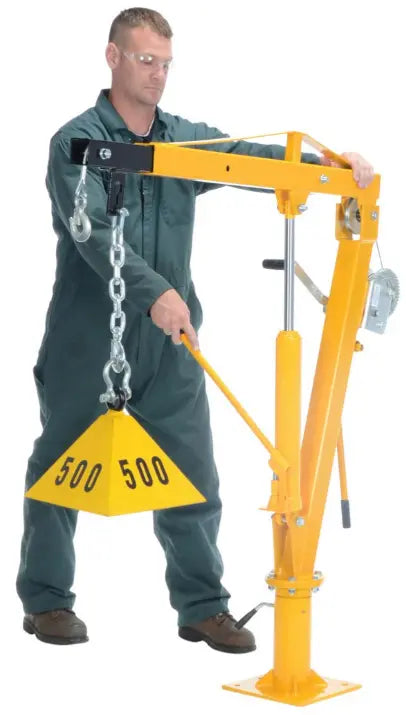

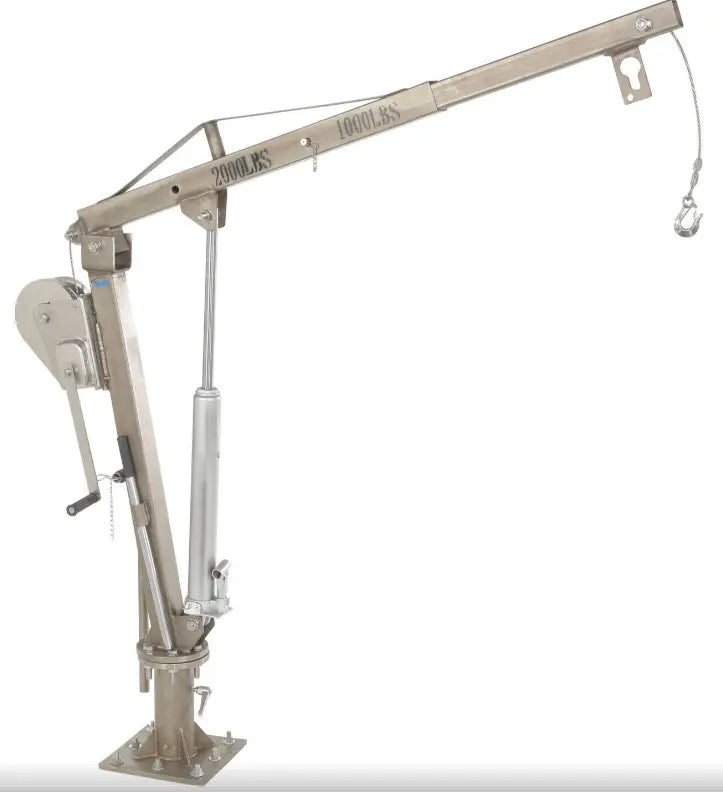

Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360° base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.
Features:
| * Mounting plate is 11" x 11" | * Crane swivels on a 360° base |
| * Safety yellow, all welded construction | * Overall height is 56" |
| * Manual cable winch (with 3/16" cable diameter) | * Base height is 11½" |
| * Unit comes with one grab hook, one chain slot lock, and one sling hook with latch | |
**All measurements in table below are represented in inches, pounds and $USD.
| Truck Jib Crane | ||||||||
| Model # | Operation | Boom | Capacity | Boom Reach | Hook Lift Range | Weight | Price | |
| Min | Max | |||||||
| Safety Yellow Finish | ||||||||
| WTJ-2 | Hand Pump | Extended | 500 | 54 | 0 | 102 | 135 | $582.00 |
| Retracted | 1,000 | 30-1/4 | 10 | 89-1/2 | ||||
| WTJ-4 | Hand Pump | Extended | 1,000 | 44 | 0 | 86-1/2 | 145 | $634.00 |
| Retracted | 2,000 | 30 | 13-1/2 | 77-1/2 | ||||
| WTJ-2-DC | 12V DC | Extended | 500 | 54 | 0 | 102 | 160 | $1,177.00 |
| Retracted | 1,000 | 30-1/4 | 10 | 89-1/2 | ||||
| WTJ-4-DC | 12V DC | Extended | 1,000 | 44 | 0 | 86-1/2 | 170 | $1,382.00 |
| Retracted | 2,000 | 30 | 13-1/2 | 77-1/2 | ||||
| Galvanized Finish | ||||||||
| WTJ-2-G | Hand Pump | Extended | 500 | 52 | 0 | 86 | 134 | $871.00 |
| Retracted | 1,000 | 30-1/2 | 15-1/2 | 72 | ||||
| WTJ-4-G | Hand Pump | Extended | 1,000 | 52 | 0 | 85-7/8 | 218 | $1,026.00 |
| Retracted | 2,000 | 31 | 15-1/2 | 74-1/2 | ||||
| WTJ-2-G-DC | 12V DC | Extended | 500 | 52 | 0 | 86 | 165 | $1,431.00 |
| Retracted | 1,000 | 30-1/2 | 15-1/2 | 72 | ||||
| WTJ-4-G-DC | 12V DC | Extended | 1,000 | 52 | 0 | 85-7/8 | 245 | $1,399.00 |
| Retracted | 2,000 | 31 | 15-1/2 | 74-1/2 | ||||
| Stainless Steel Construction | ||||||||
| WTJ-4-SS | Hand Pump | Extended | 1,000 | 52 | 0 | 85-7/8 | 218 | $2,998.00 |
| Retracted | 2,000 | 31 | 15-1/2 | 74-1/2 | ||||
Our focus is on the equipment, systems and related controls used to achieve increased productivity. Our material handling systems range from simple pallet rack and shelving projects to industrial hoppers. Let us help you to have a more productive, environmental-friendly facility. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
