U Design Cantilever Ladder
U Design Cantilever Ladder
U Design Cantilever Ladder The U Design Cantilever Ladder allows access to hard to reach areas over obstacles by allowing the platform to cantilever beyond the back of the ladder. You may choose from the Supported Cantilever model with a bottom support legs that roll under an obstacle or the Unsupported Cantilever model which is counterweighted for capacity. Features: • Supported or Unsupported models • 300 lbs. capacity • 1" x 2" rectangular tubing frame • Yellow powder-coated finish • Powder coated carbon steel construction • Custom options available • 5" x 2" polyurethane total-lock swivel casters • 50° forward descent incline • 42"H handrails with 21" mid-rails. . .
U Design Cantilever Ladder

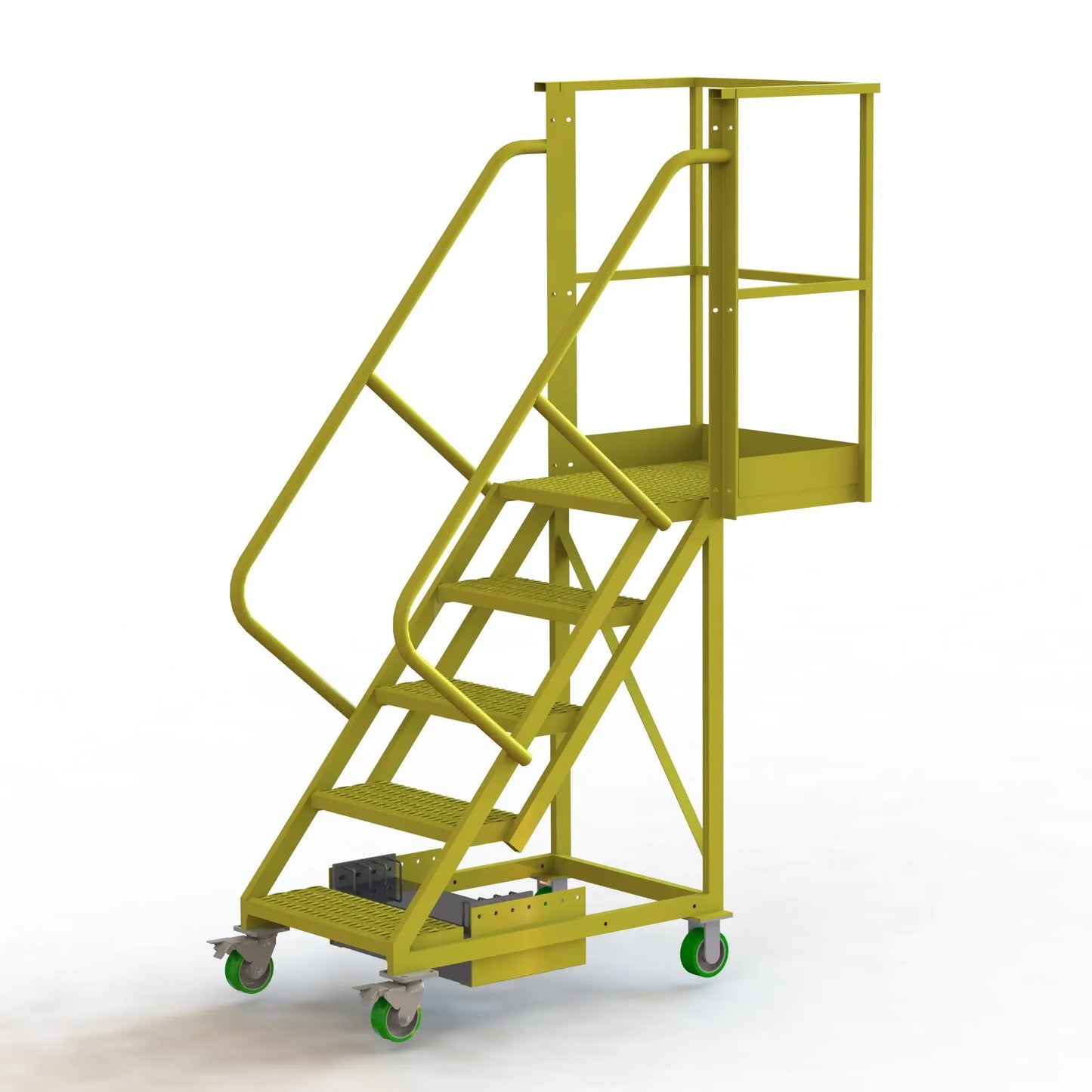

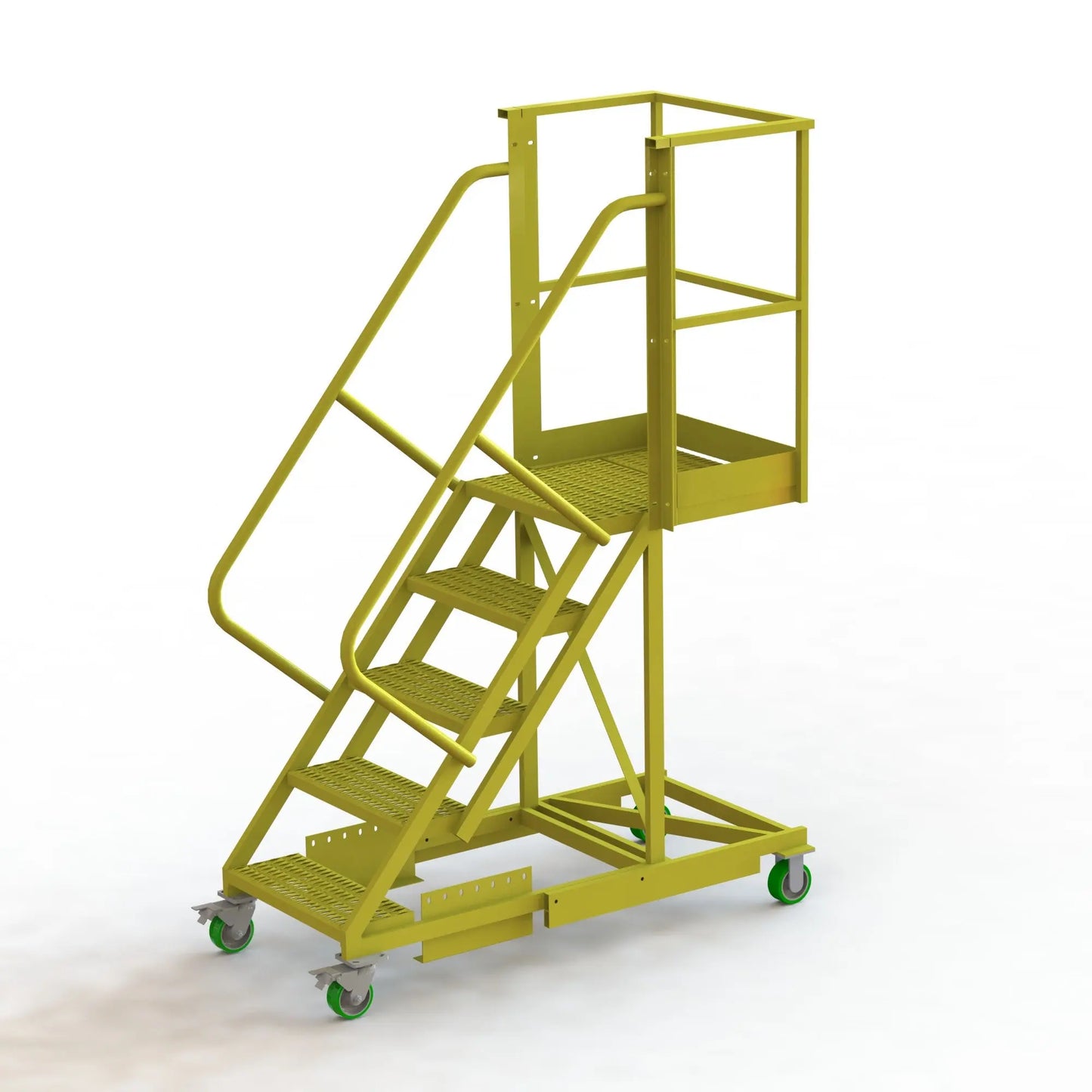

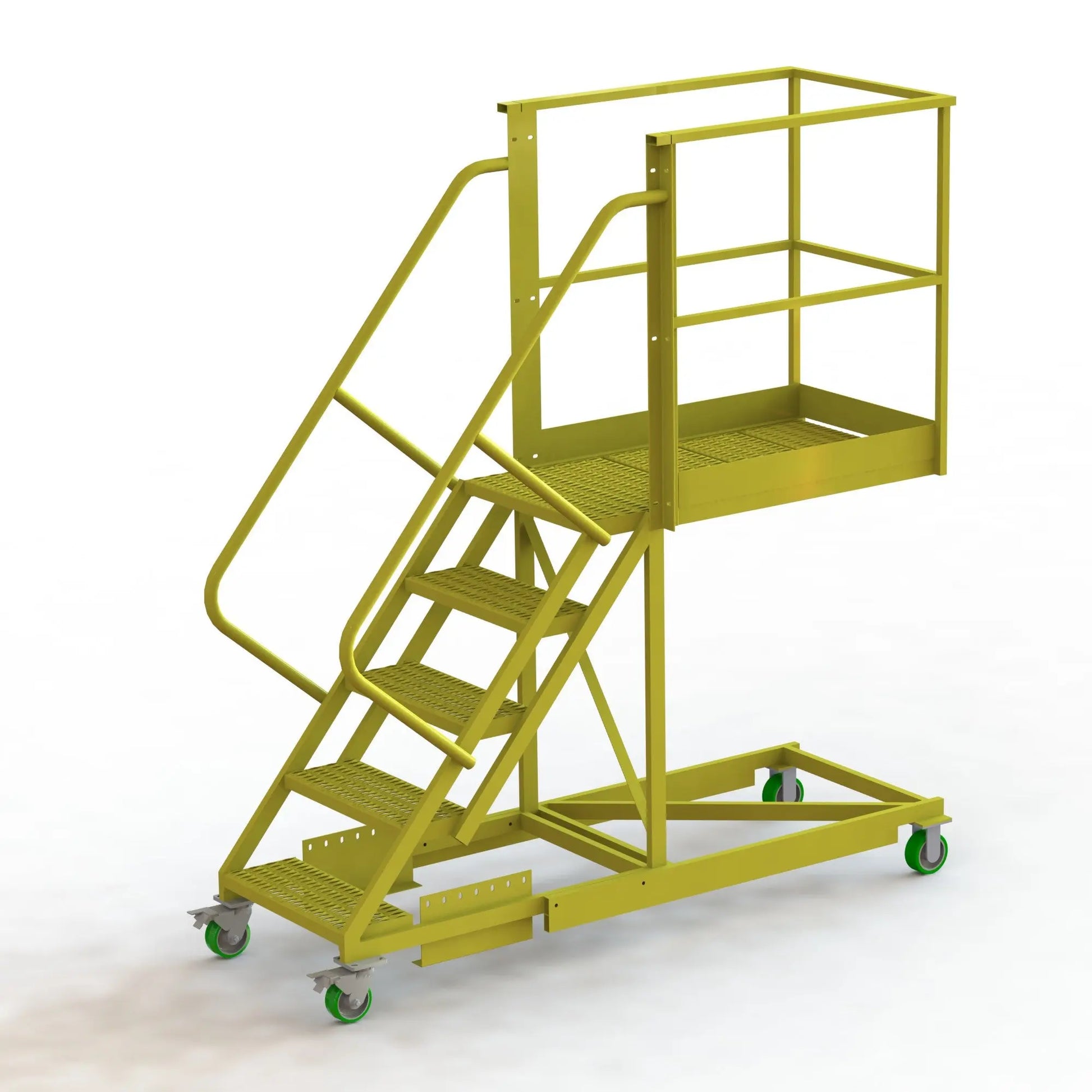

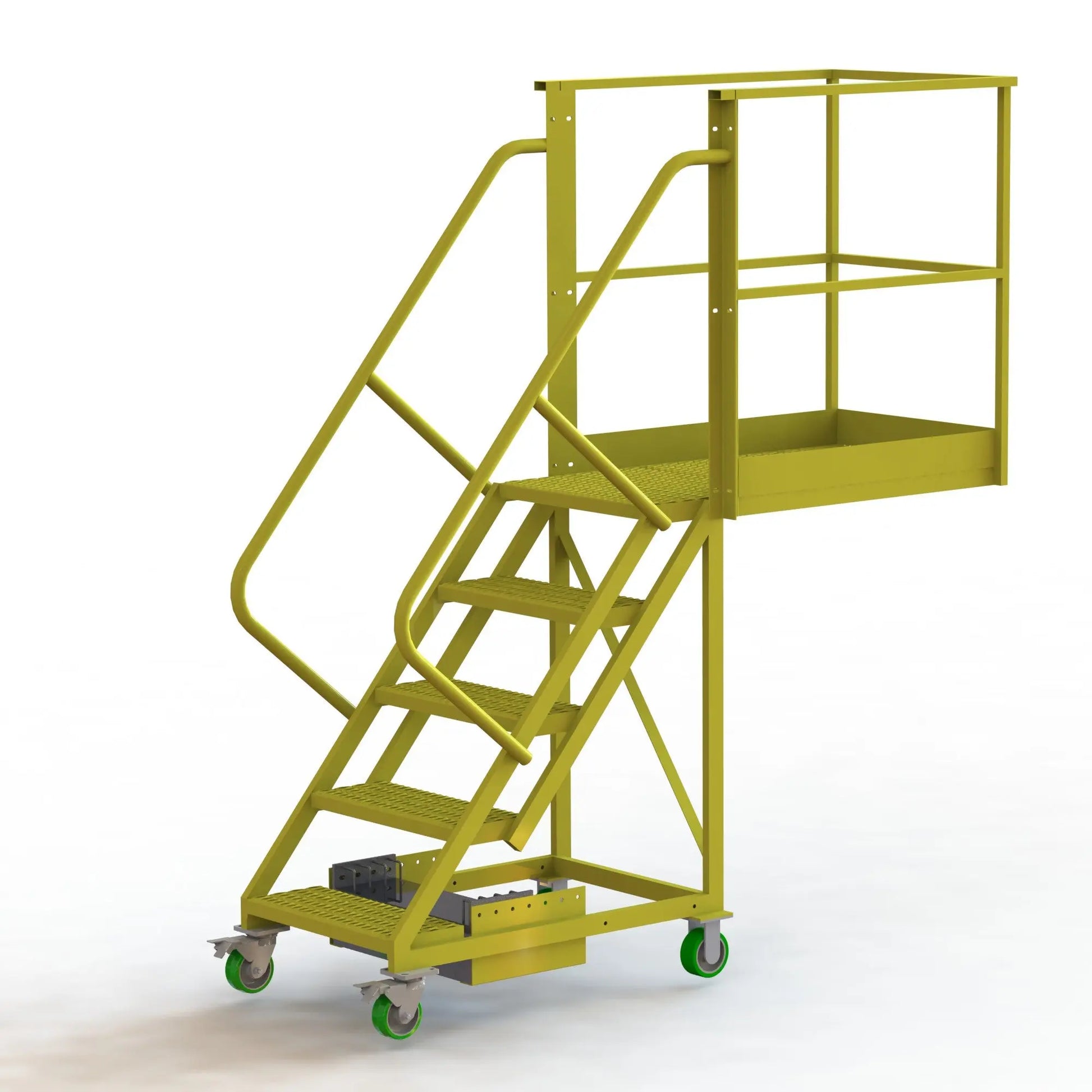

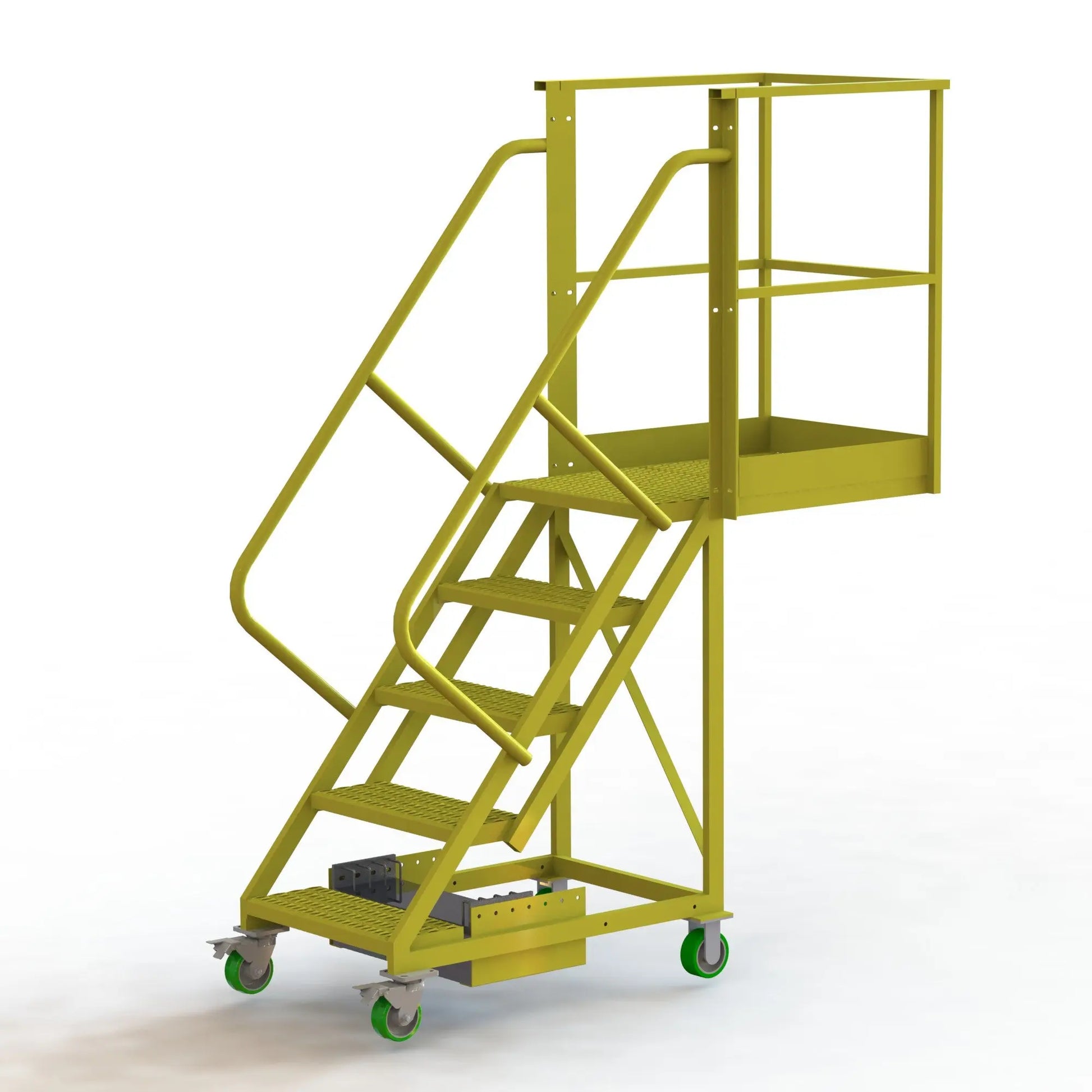

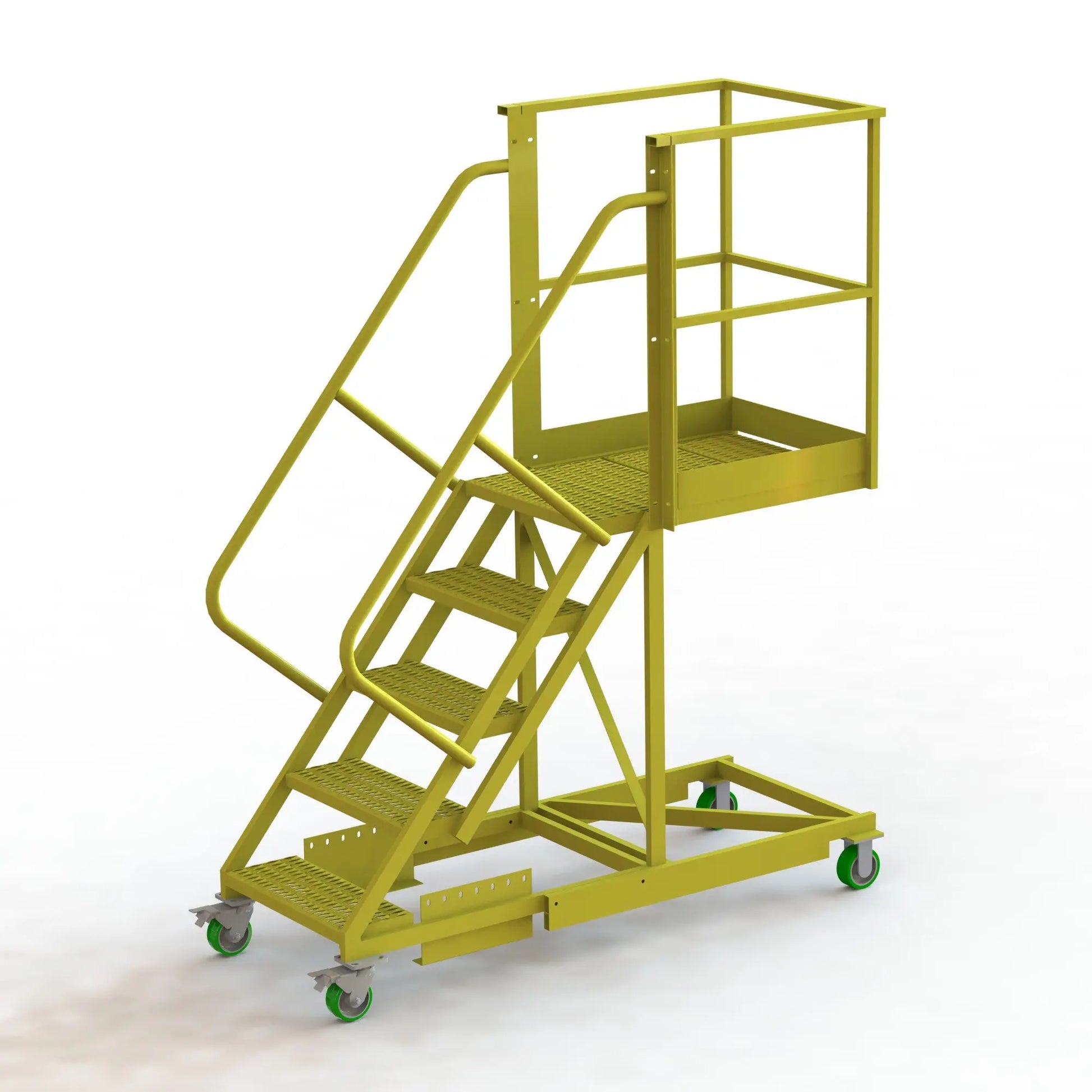

The U Design Cantilever Ladder allows access to hard to reach areas over obstacles by allowing the platform to cantilever beyond the back of the ladder. You may choose from the Supported Cantilever model with a bottom support legs that roll under an obstacle or the Unsupported Cantilever model which is counterweighted for capacity.
Features:
| • Supported or Unsupported models | • 300 lbs. capacity |
| • 1" x 2" rectangular tubing frame | • Yellow powder-coated finish |
| • Powder coated carbon steel construction | • Custom options available |
| • 5" x 2" polyurethane total-lock swivel casters | • 50° forward descent incline |
| • 42"H handrails with 21" mid-rails and 4" toe-boards | • OSHA and ANSI compliant design |
You may also convert your Unsupported Cantilever model to a Supported Cantilever model by using the Cantilever Conversion Kit, which adds a base support kit to the base of the ladder.
(After removing and storing the counterweight)
**All the measurements in the table below are represented in inches, pounds and $USD.
| U Design Cantilever Ladder | ||||||||
| Example | Steps | Platform Height | Base Length | Step Width | Model # Perforated | Price | Model # Serrated | Price |
 | 20" Cantilever | Supported Model | ||||||
| 5 | 50 | 64 | 24 | UCS500520246 | $2,469.00 | UCS500520242 | $2,630.00 | |
| 6 | 60 | 72 | 24 | UCS500620246 | $2,626.00 | UCS500620242 | $2,810.00 | |
| 7 | 70 | 81 | 24 | UCS500720246 | $2,754.00 | UCS500720242 | $2,978.00 | |
| 8 | 80 | 89 | 24 | UCS500820246 | $2,959.00 | UCS500820242 | $3,156.00 | |
| 9 | 90 | 97 | 24 | UCS500920246 | $3,103.00 | UCS500920242 | $3,351.00 | |
 | 30" Cantilever | Supported Model | ||||||
| 5 | 50 | 74 | 24 | UCS500530246 | $2,628.00 | UCS500530242 | $2,756.00 | |
| 6 | 60 | 82 | 24 | UCS500630246 | $2,770.00 | UCS500630242 | $2,929.00 | |
| 7 | 70 | 91 | 24 | UCS500730246 | $2,924.00 | UCS500730242 | $3,121.00 | |
| 8 | 80 | 99 | 24 | UCS500830246 | $3,085.00 | UCS500830242 | $3,279.00 | |
| 9 | 90 | 107 | 24 | UCS500930246 | $3,219.00 | UCS500930242 | $3,470.00 | |
 | 40" Cantilever | Supported Model | ||||||
| 5 | 50 | 84 | 24 | UCS500540246 | $2,782.00 | UCS500540242 | $2,898.00 | |
| 6 | 60 | 92 | 24 | UCS500640246 | $2,917.00 | UCS500640242 | $3,063.00 | |
| 7 | 70 | 101 | 24 | UCS500740246 | $3,085.00 | UCS500740242 | $3,256.00 | |
| 8 | 80 | 109 | 24 | UCS500840246 | $3,219.00 | UCS500840242 | $3,427.00 | |
| 9 | 90 | 117 | 24 | UCS500940246 | $3,790.00 | UCS500940242 | $4,037.00 | |
 | 20" Cantilever | Unsupported Model | ||||||
| 5 | 50 | 64 | 24 | UCU500520246 | $3,289.00 | UCU500520242 | $3,437.00 | |
| 6 | 60 | 72 | 24 | UCU500620246 | $3,144.00 | UCU500620242 | $3,329.00 | |
| 7 | 70 | 81 | 24 | UCU500720246 | $3,305.00 | UCU500720242 | $3,517.00 | |
| 8 | 80 | 89 | 24 | UCU500820246 | $3,167.00 | UCU500820242 | $3,420.00 | |
| 9 | 90 | 97 | 24 | UCU500920246 | $3,318.00 | UCU500920242 | $3,621.00 | |
 | 30" Cantilever | Unsupported Model | ||||||
| 5 | 50 | 74 | 24 | UCU500530246 | $3,967.00 | UCU500530242 | $4,095.00 | |
| 6 | 60 | 82 | 24 | UCU500630246 | $3,573.00 | UCU500630242 | $3,072.00 | |
| 7 | 70 | 91 | 24 | UCU500730246 | $3,697.00 | UCU500730242 | $3,899.00 | |
| 8 | 80 | 99 | 24 | UCU500830246 | $3,557.00 | UCU500830242 | $3,799.00 | |
| 9 | 90 | 107 | 24 | UCU500930246 | $3,711.00 | UCU500930242 | $3,986.00 | |
 | 40" Cantilever | Unsupported Model | ||||||
| 5 | 50 | 84 | 24 | UCU500540246 | $4,378.00 | UCU500540242 | $4,492.00 | |
| 6 | 60 | 92 | 24 | UCU500640246 | $4,234.00 | UCU500640242 | $4,387.00 | |
| 7 | 70 | 101 | 24 | UCU500740246 | $4,101.00 | UCU500740242 | $4,298.00 | |
| 8 | 80 | 109 | 24 | UCU500840246 | $3,982.00 | UCU500840242 | $4,211.00 | |
| 9 | 90 | 117 | 24 | UCU500940246 | $4,122.00 | UCU500940242 | $4,386.00 | |
Safely convert your Unsupported Cantilever ladder to a Supported Cantilever Ladder by choosing the appropriate conversion kit below.
| Convert Unsupported Cantilever to Supported Cantilever | ||
| For Model # | Model # | Price |
| 20" Cantilever | UCB2024 | $323.00 |
| 30" Cantilever | UCB3024 | $350.00 |
| 40" Cantilever | UCB4024 | $373.00 |
**Also available in Composite construction**
Fabrication Authorities International can engineer and manufacture a Cantilever Ladder to accommodate any configuration of space and work requirements. We are dedicated to providing you with fast, responsible, and reliable service, including a professional consultation with our sales technicians to provide you with your custom access solution. All of our products may be modified or completely custom designed to suit your needs. Our dedicated staff can assist you from concept to completion in a timely fashion.
Please call for additional options or custom designs.
Fabrication Authorities International, LLC. Is your new “total access” solution.
We can customize most Industrial Maintenance Platforms to your specific needs.
Please call (877) 324-9990 or (727) 324-4620 or (727) FAI-INC-0
Fax us your request at (888) 909-6780
Email us at sales@industrial-platforms.com
If you are looking for a custom product, please include the model number closest to what you need, along with your custom requirements!
For a complete quote including freight, include your shipping address or zip code. Freight quotes are valid for 30 days
